• Model NO.：PEDB-110
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Usage：Metal and Nonmetal
• Engraving Machine Type：Fiber Laser Engraving Machine
• Power：10W 20W 30W 50W
• Certification：SGS, CE, ISO 9001 TUV FDA
• Laser Source：Ipg Raycus Max Mopa
• Working Size：110*110mm
• Voltage：110-220V
• Transport Package：Wooden Case
• Specification：ISO9000 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：5000 Units, Month

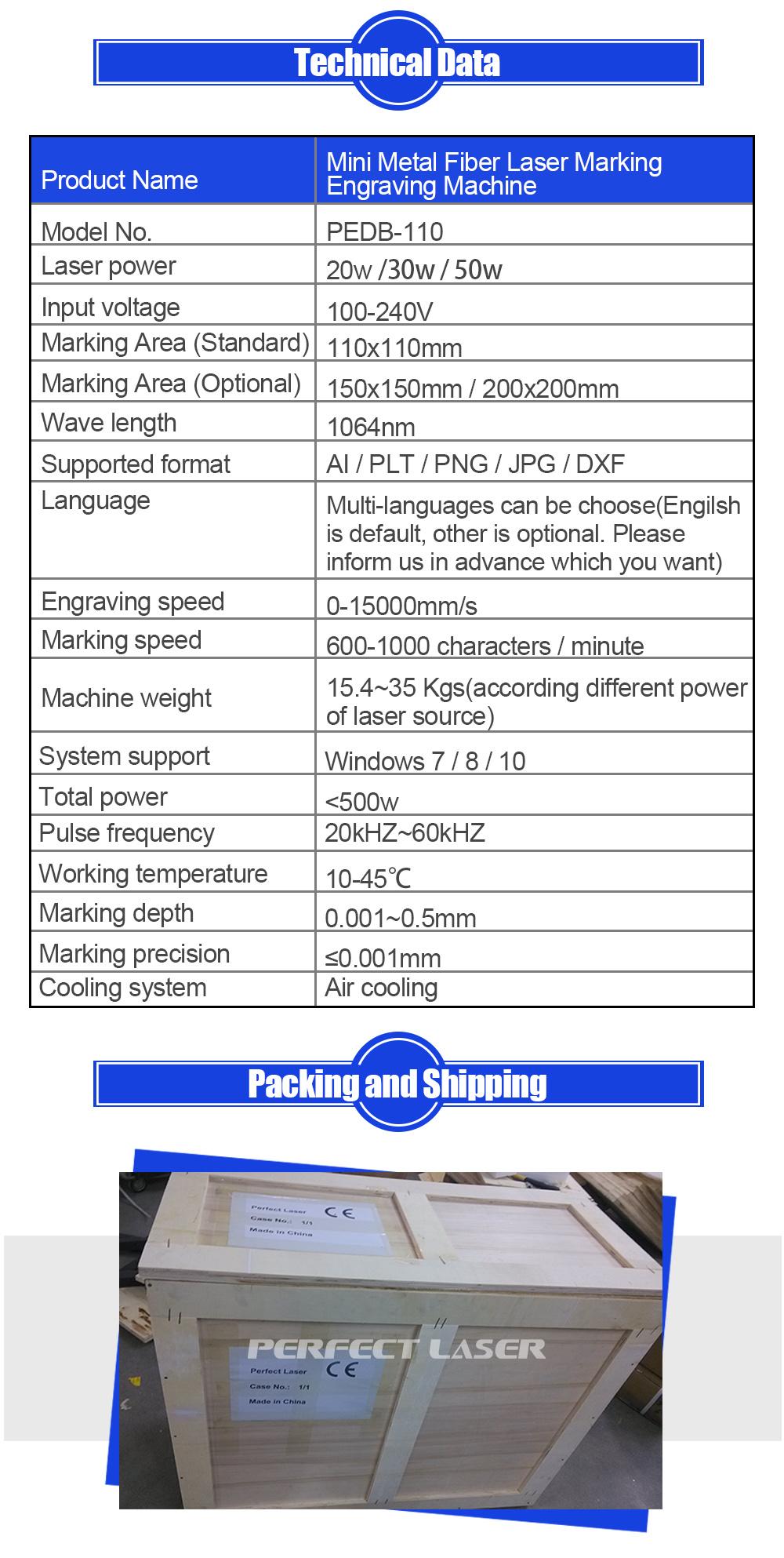

Basic Info.

Model NO. PEDB-110 Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Usage Metal and Nonmetal Engraving Machine Type Fiber Laser Engraving Machine Power 10W 20W 30W 50W Certification SGS, CE, ISO 9001 TUV FDA Laser Source Ipg Raycus Max Mopa Working Size 110*110mm Voltage 110-220V Transport Package Wooden Case Specification ISO9000 & CE Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 5000 Units/ Month

Product Description

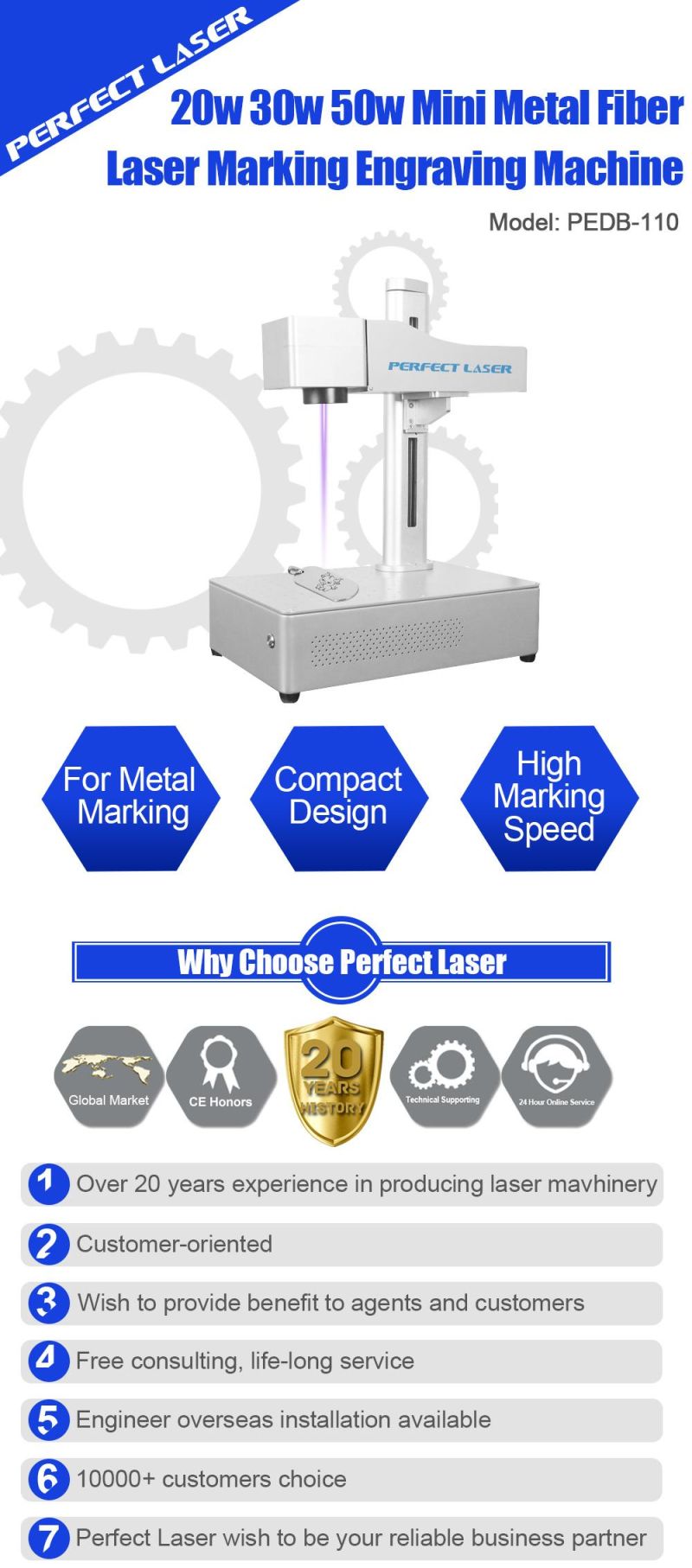

Portable Mini Fiber Laser Marking Machine For Metal Plastic Phone Case Pet Ear Tag
(Model: PEDB-110)
Contact : BettyIntroduction:
This metal fiber laser marking machine realizes the marking function by laser from laser source and through high-speed laser scanning head.
It has compact size, high electro-optical conversion efficiency, air-cooling system, good output beam quality and high reliability.
Metal laser marking machine is suitable for marking on all kinds of metal materials and some hard plastics. The output power can be controlled arbitrarily through the marking software, and the marking depth can be precisely controlled.
The metal fiber laser marking machine has low running cost, clear and permanent marking result.



Main features:

1. Authorized mother-board card and software, no flash and freeze.
2. Support marking vector graphics, QR codes, barcodes, bar-code generation, etc.
3. Adopt laser source with German technology, with 20 watts full laser power.
4. Rapid marking. The fast laser scanning system replaced the old X/Y axis working technology.
5. The minimum character is just 0.6mm, the text logo is delicate / repeated positioning is only ±0.01mm.
6. The total volume is light and compact, the weight is only 16 kgs, easy to move.
7. High precision positioning, it can operate under Windows system, support multi-languages.
8. QR code generate at random, input the content to get the corresponding QR code.
9. Automatic code skip function. Can set serial number and update it automatically.
10. High-speed preview positioning. with projection preview frame & graphic outline positioning two modes, quick calibration preview and precise marking.
11. Adopt adjustable manual lifting function, can adjust the focus distance according to the size of the object.
12. With heat dissipation hole, which can balance the temperature of the motherboard to ensure long time working of the machine.

Application:

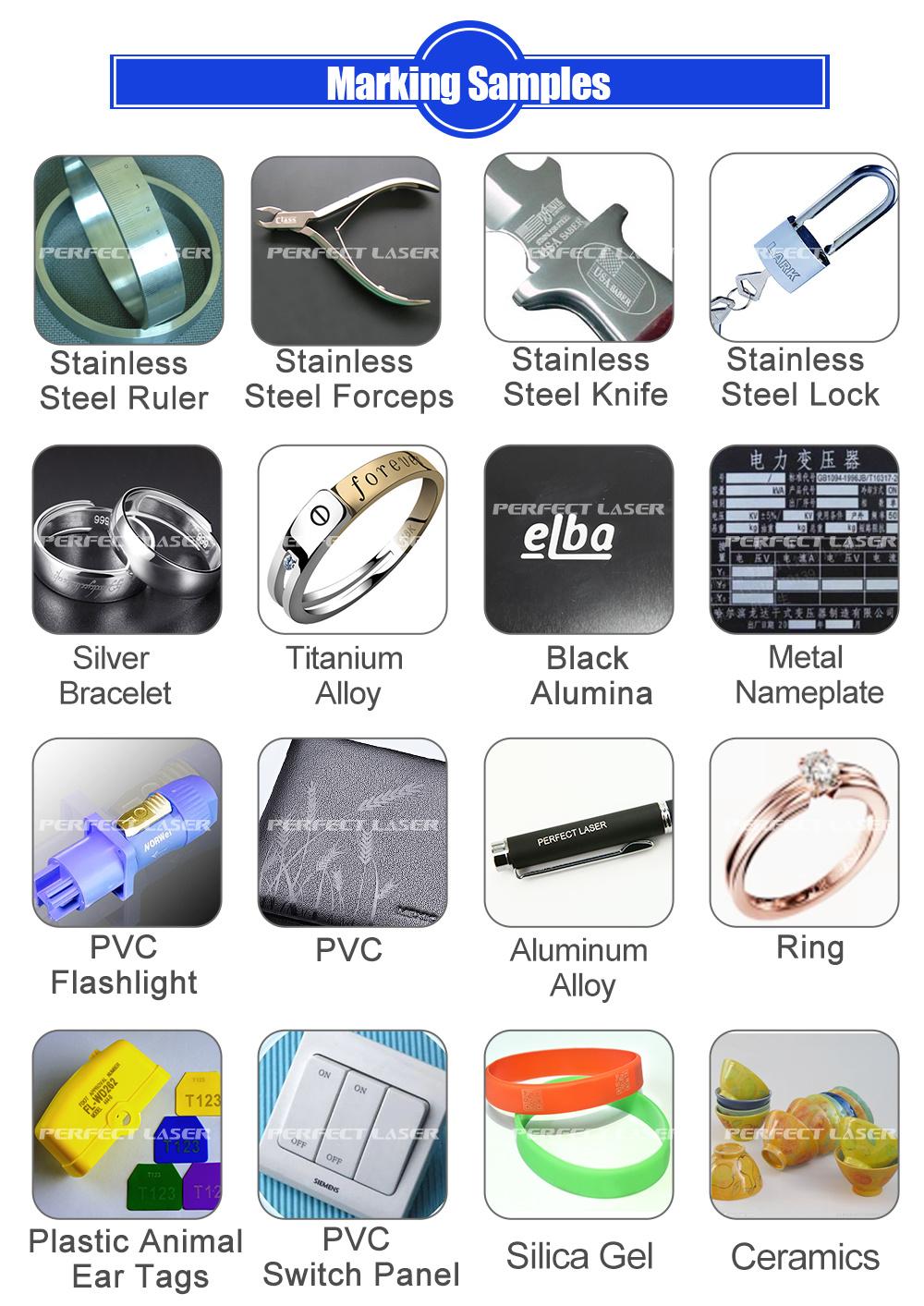

The metal fiber laser marking machine is widely used for cosmetic,electronic cigarette,beverage can,jewellery, electronic components and mass production of metal fabrication and some hard plastic materials.
