Basic Info.

Model NO. MD-HL Machine Weight 2000kgs Certification CE Color Green and White Transport Package Export Standard Packing Type Trademark Mingde Origin China HS Code 8477300000 Production Capacity 100sets/Year

Product Description

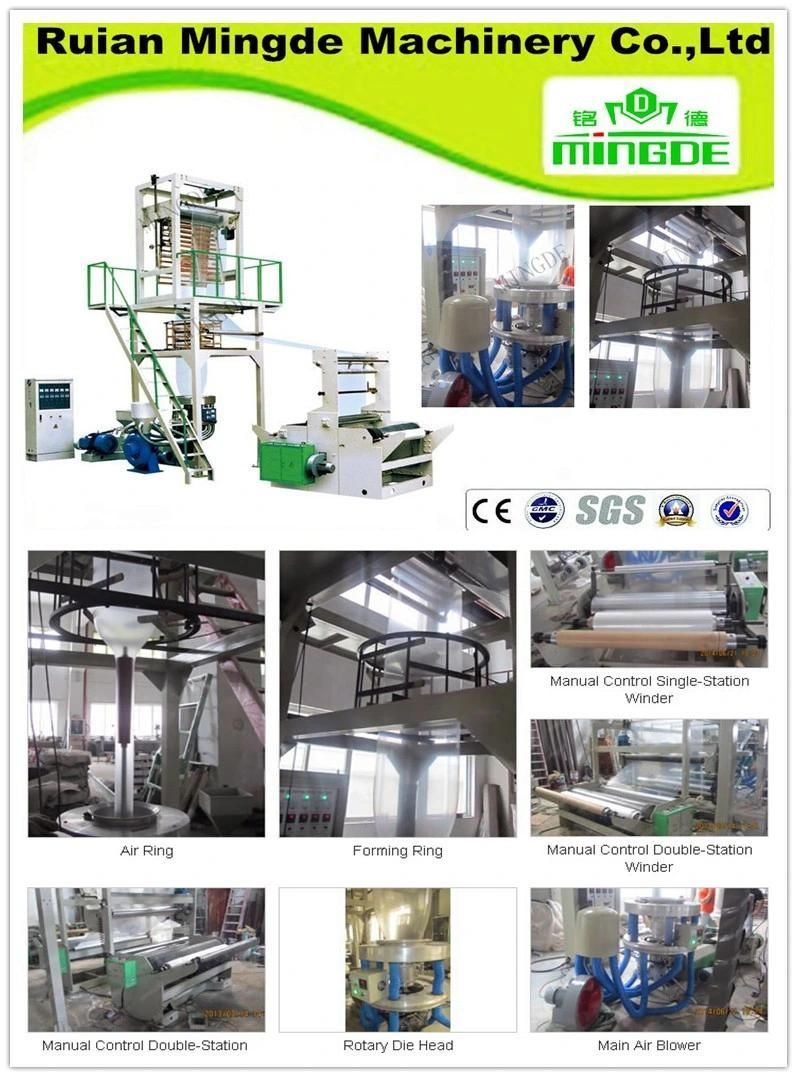

MD-HL Rotary Head film blow machine

It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.

 Rotary Head film blow machine
OPTIONAL EQUIPMENT :
Double winder
Rotary die head
Auto loader
Double lip air ring
Air shaft
Corona treatment
Fast screen changer
Air compressor
All roller pneumatic type

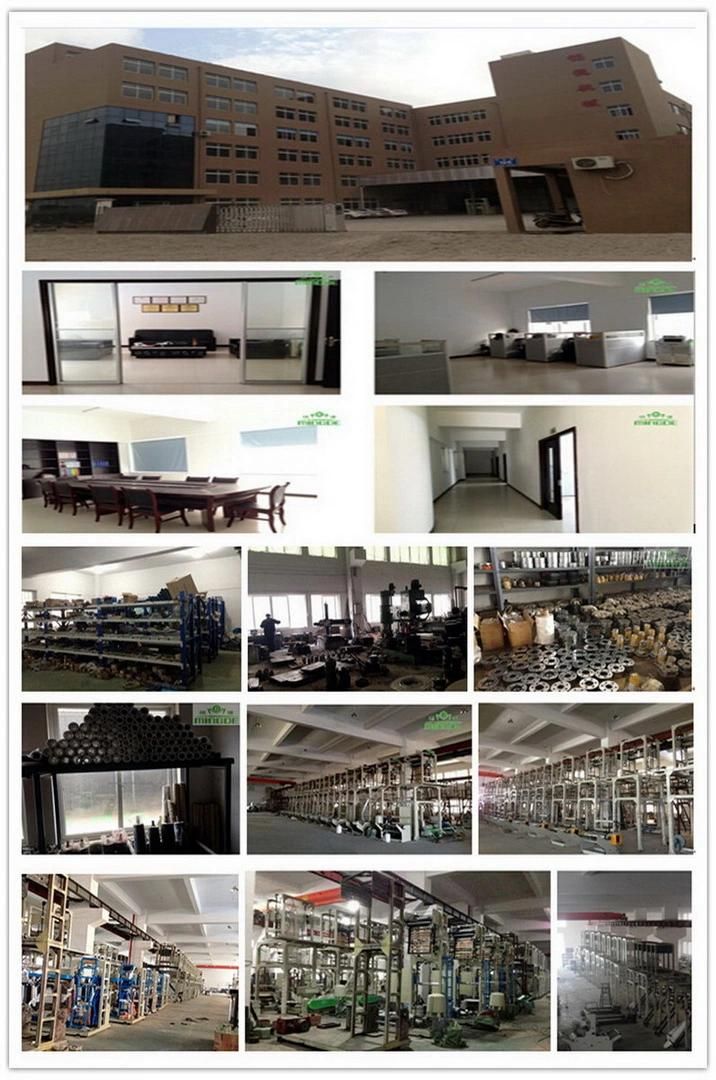

COMPANY AND WORKSHOP SHOW:
 Rotary Head film blow machine
 Rotary Head film blow machine
Have any require, you could contact with us:
Add: No. 168 Daohang Road Economic Development Industrial Zone Ruian Wenzhou, Zhejiang, China
Tel: +86-577-65166183
Fax: +86-577-65166189
Mobile: 0086-13646562351

Model	SJ-B45	SJ-B50	SJ-B55	SJ-B60
Screw Diameter	45mm	50mm	55mm	60mm
Screw   L/D	28:1	28:1	28:1	28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	11Kw	15Kw	18.5Kw	22kw
Extrusion Output	25 -30kg /h	35 -40kg /h	45 -50kg /h	55 -60kg /h
Max. Folding Width	600mm	800mm	1000mm	1200mm
Thickness of Film	0.008 -0.06mm	0.008 -0.06mm	0.008 -0.06mm	0.008 -0.06mm
Total Power	26Kw	30Kw	36Kw	40kw
Weight of Machine	2.3T	2.6T	3T	3.2T
Overall Dimension	4000X2100X 4300mm	4200 x 2300 x 4500mm	5000 x 2500 x 5200mm	5800x2800x 5500mm
