PAR T1   THIS LINE CONSISTS OF (COMPULSORY)
1
Automatic spring feeding machine
1 set
2
Conical twin screw extruder SJSZ-80/156
1 set
3
Single screw extruder SJ-45/30 or 65/30 for UV extrusion
1 set
4
T-type /hanger type die head (JC-Times brand)
1 set
5
Corrugation forming boards
1 set
6
Cooling frame and edge cutting unit
1 set
7
Haul off machine
1 set
8
Plastic cutting machine-guillotine with meter counting
1 set
9
Stacker
1 set
10
Electrical cabinet (ABB,Omron, RKC, SSR
Siemens etc)
11
Spare parts
1 set
PART 2   ACCESSORY MACHINE PARTS (OPTIONAL)
1
High speed hot and cold mixer SRL-Z 300/600
1 set
2
Plastic crusher SWP-450
1 set
3
Plastic pulverizer SMP-400
1 set
4
Air compressor
1 set
5
Industrial water chiller
1 set
PART 3 SHEET APPLICATIONS
1
Roof panels, roof tiles, roof sheets, ceilings
2
Factories, warehouses, farm building, greenhouses, canopies, walkways, patio covers,
Pergolas, cladding
PART 4 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1
Payment terms
40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2
Delivery time
70 days after receipt of prepayment
3
Packing method
Wooden cases/pallets with stretching films
4
Guaranteed time
18 months for mechanical parts, 12 months for electrical parts
5
After sale service
Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
Sheet specifications
Sheet width
720,760,820,840,860,880,900,930,950,980,1050mm etc
Sheet thickness
0.5, 0.8, 1.0, 1.2, 1.5, 2.0,2.5,3.0mm
Sheet length
4m, 6m or customized
Sheet weight
1mm thickness 1.4kg-1.85kg/m2, 2.0-2.4 thickness 2.5-3kg/m2
Suitable environment
-40(50)ºC-70ºC
Surface treatment
With UV coating
Service life
More than 25 years, 10years can be guaranteed
Colors and tints
Clear, bronze, opal
Textures
Can be textures
Sheet features
1
Weatherable and durable
2
UV-protection
3
Wide range of profiles
4
High impact option
5
Lightweight and easy to handle
6
Low maintenance
7
Chemical resistance
8
Excellent fire performance
9
Economical
10

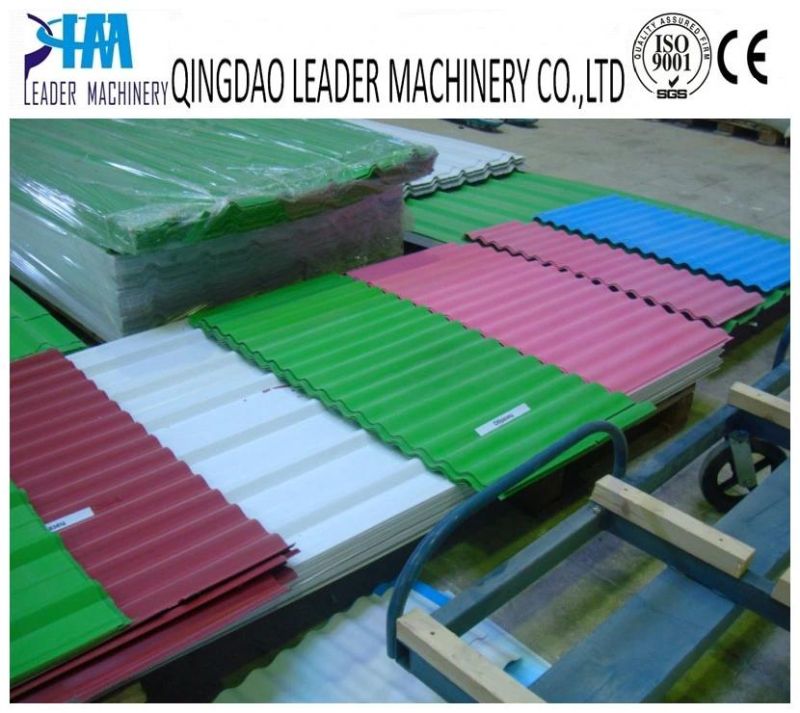

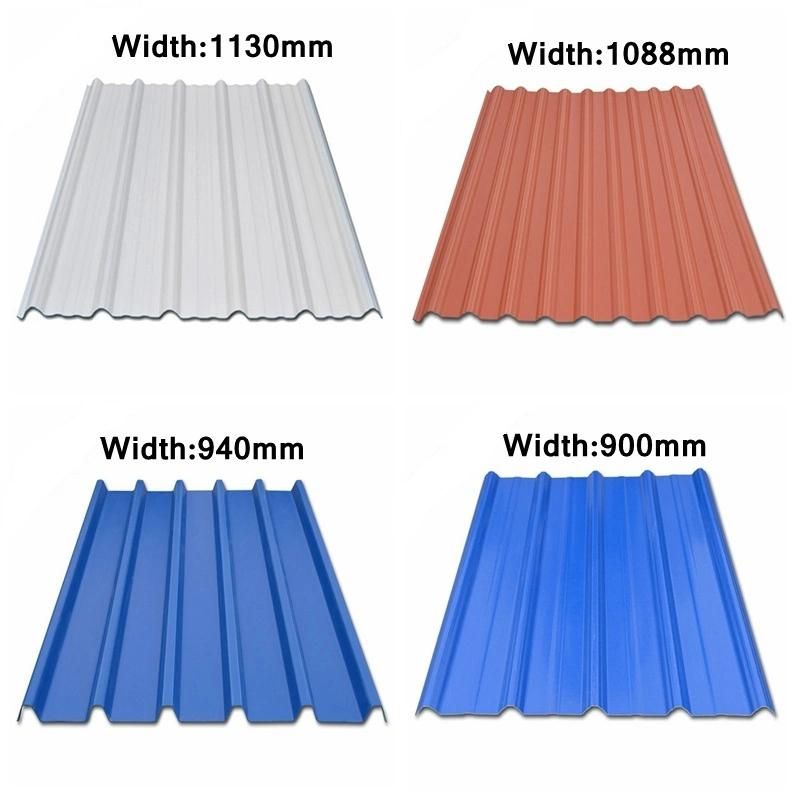

10 years warrantySAMPLE PICTURES:

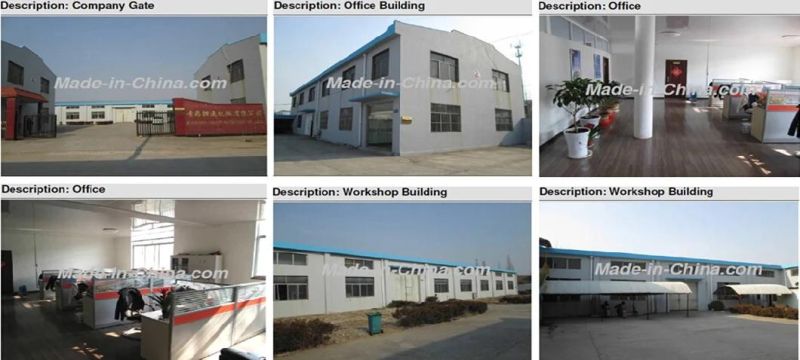

COMPANY INFORMATION:


COMPANY CERTIFICATIONS:


COMPANY OVERSEA TRADE SHOWS:


MACHINE PACKING AND DELIVERY:

OUR COOPERATED SUPPLIERS LIST
