• Model NO.：GJB Series
• Name：1000L 1500L 2000L Piston Stage Homogenizer for Da
• Material：Sanitary Stainless Steel 304 ,316
• Capacity/Flux：5000L,H
• Pressure：20MPa to 100MPa
• Stage：Two Stage
• Performance：0.2 Um
• Voltage /Hz /Phase：Customized
• Piston：3 , 4
• Spare Parts：Available
• Motor：ABB ,Siemens
• Voltage：Make It to Your Order .
• Working Life：More Than 10 Years .
• Motor Brand：ABB,Siemens ,China Brand
• Delivery：15 Days After Get Your Ply
• Packing：Wooden Box .
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units , Month

Basic Info.

Model NO. GJB Series Name 1000L 1500L 2000L Piston Stage Homogenizer for Da Material Sanitary Stainless Steel 304 /316 Capacity/Flux 5000L/H Pressure 20MPa to 100MPa Stage Two Stage Performance 0.2 Um Voltage /Hz /Phase Customized Piston 3 / 4 Spare Parts Available Motor ABB /Siemens Voltage Make It to Your Order . Working Life More Than 10 Years . Motor Brand ABB,Siemens /China Brand Delivery 15 Days After Get Your Ply Packing Wooden Box . Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units / Month

Product Description

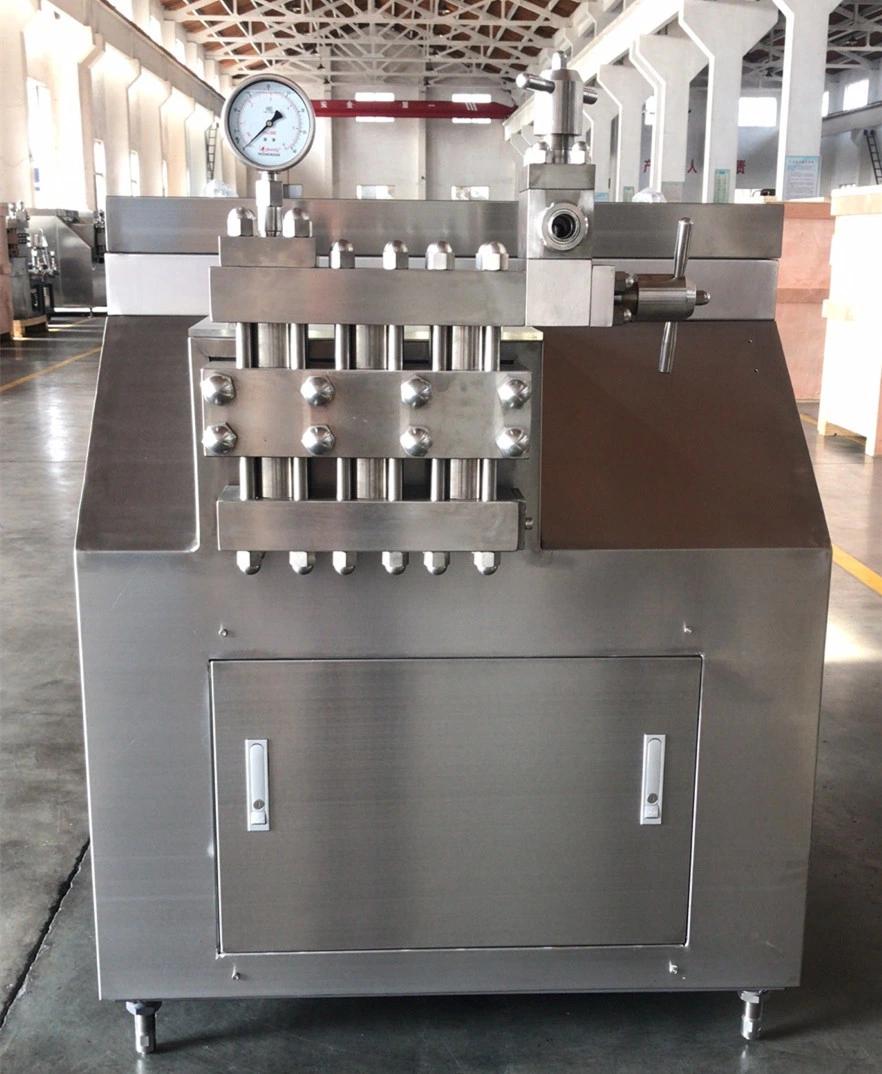

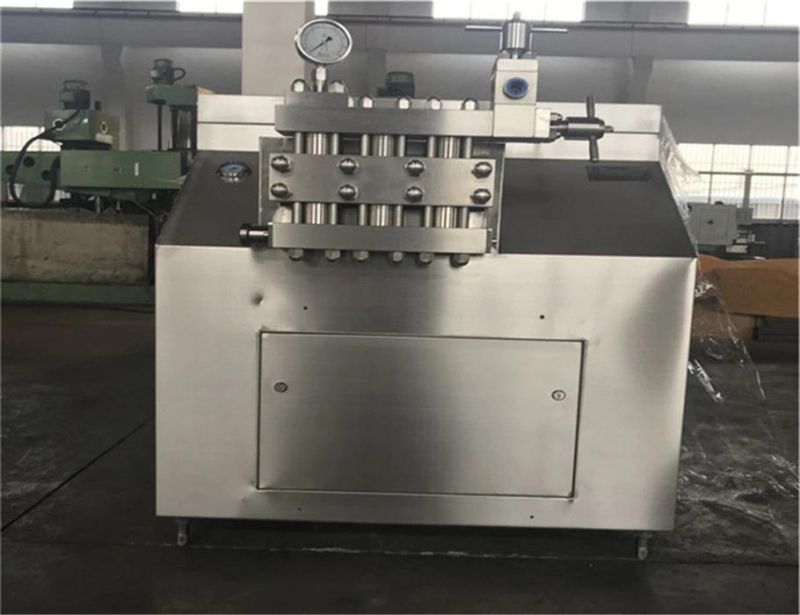

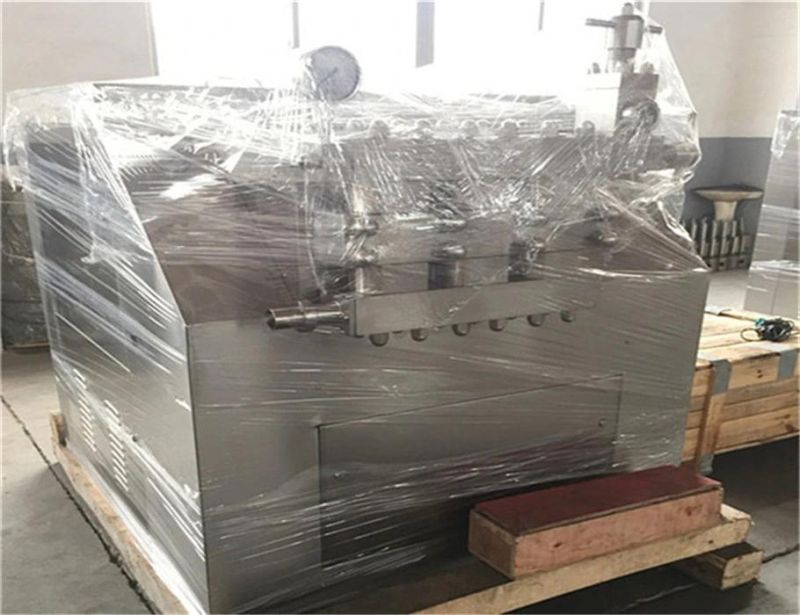

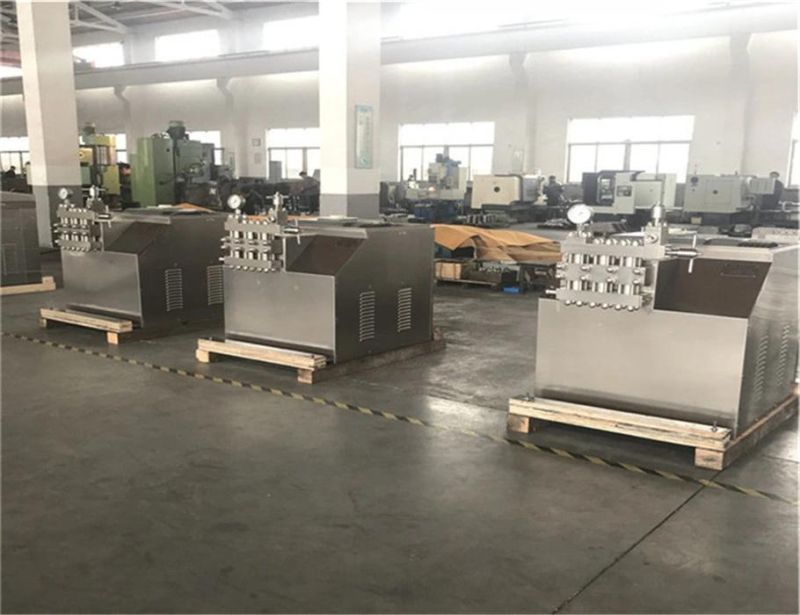

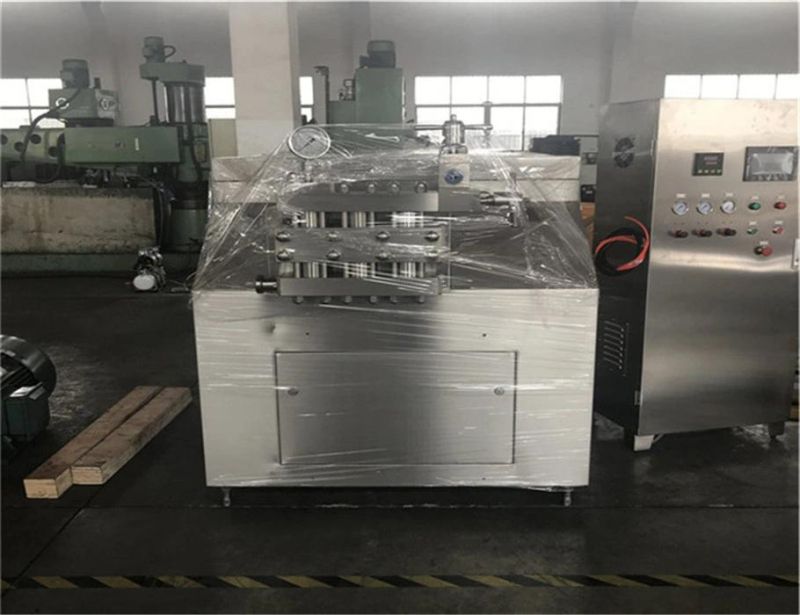

1000L 1500L 2000L Piston Stage Homogenizer For Dairy Processing
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life



The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.







1000L 1500L 2000L Piston Stage Homogenizer For Dairy Processing .
