Basic Info.

Model NO. MT400 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Granulation Line WPC Granulation Line Capacity 500kg/H High Speed 35rpm High Performance 24 Hours Working Motor Siemens Contact Celduc Inverter Schenider Barrel Bimetallic Gearbox Guomao Cutter Alloy Steel Transport Package Wood Specification CE Trademark Middle tech industry Origin Zhangjiagang City HS Code 84778000 Production Capacity 30unit/Year

Product Description

Product Description

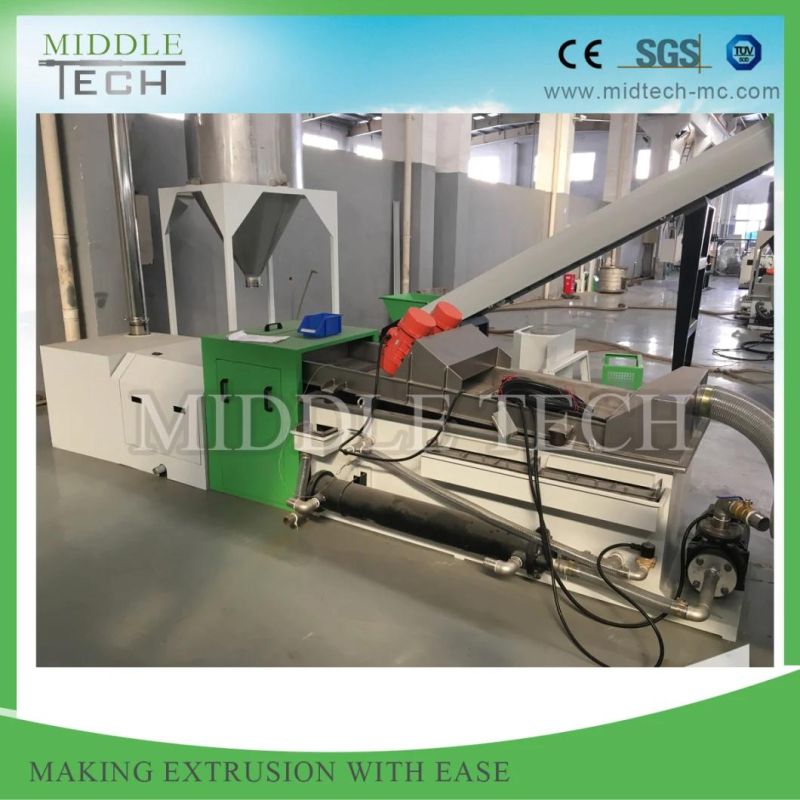

 Plastic PVC/ SPVC conical twin Screw Granulation/ Pelletizer Line SJZ80/156 & SJZ65/132



Application

This production line produces pellets by hot cutting, mainly PVC pellets.It is widely used in producing PVC granules/ pellets from the recycled material of rigid PVC, soft PVC and waste PVC, mixed material, recycled PVC powder etc.

Hot cutting granulator is composed by conical screw extruder, pelletizing die, blowing system and silo.Clients can add masterbatch to produce granules with different color.


The line includes:
1.Conical twin screw extruder: SJZ51/105, SJZ65/132,SJZ80/156,SJZ92/188
2.Granulator mould; die face cutting with high quality blades and high rotary mould
3.Hot cutting device;
4.Blower&Storage hopper:big size hopper with automatic filling system

Features


1.Low price&good quality
2.Capacity 120-350kg/h
3.Mould face hot cutting
4.CE approved

Also, the main technical parameters:

Model	Main extruder power	Capacity	Pellets diameter	Total length
SJSZ45	22kw	120kg/h	3mm	12m
SJSZ65	37kw	280kg/h	3mm	15m
SJSZ80	55kw	350kg/h	3mm	15m
