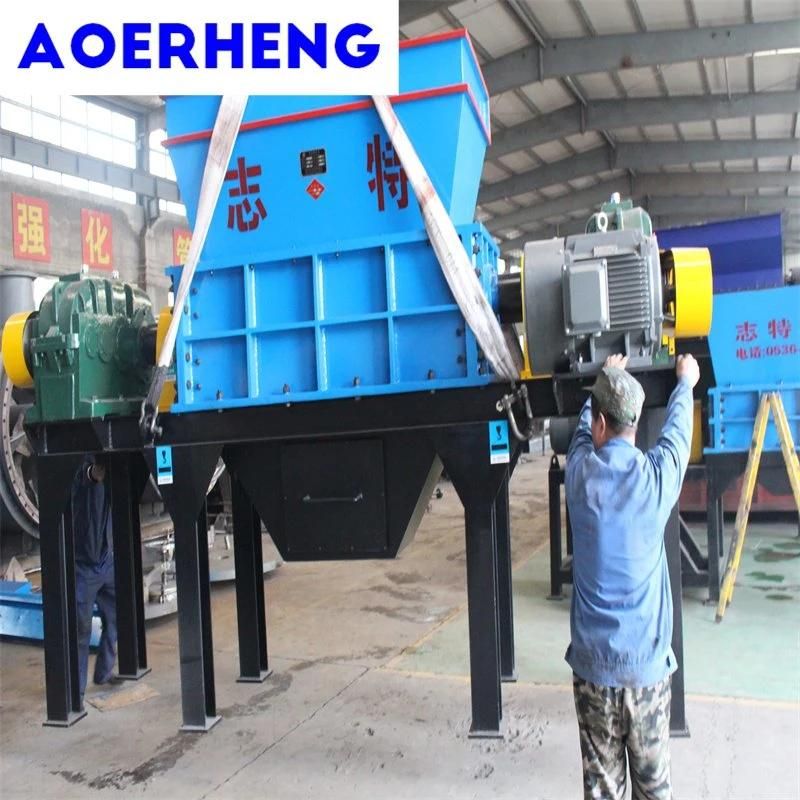

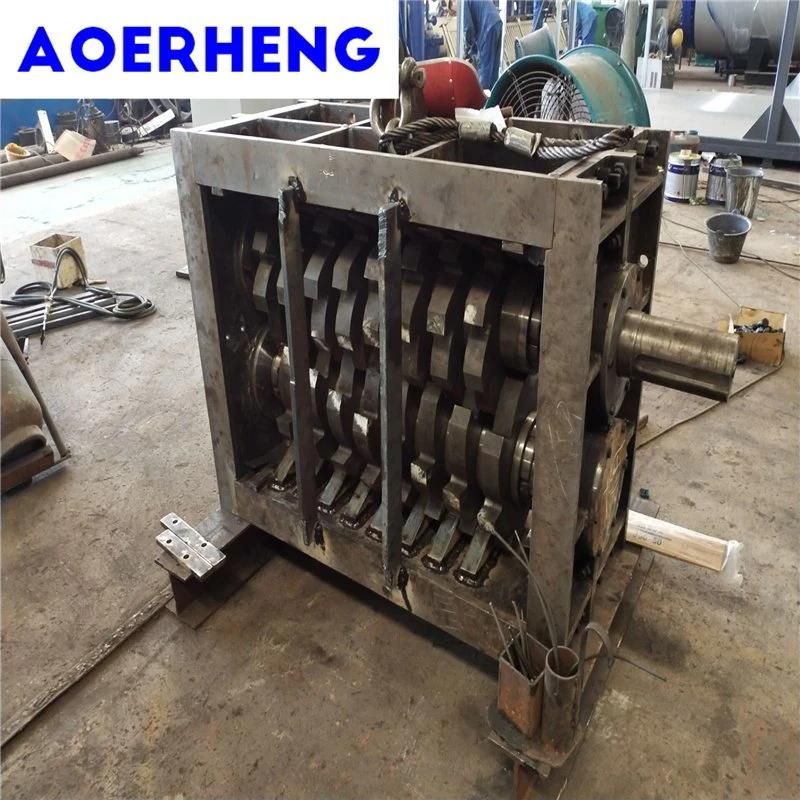

1. Crusher body: the main body of the equipment is welded with high-quality steel plate for stress relief treatment / overall machining to ensure the stability of the equipment under heavy load for a long time;

2. Bearing and seal: the split and easy to disassemble type adopted by the bearing seat can quickly remove the moving knife, fixed knife, bearing and other components, which is easy to maintain and replace the cutting tool. The unique sealing structure can effectively block the contact between broken objects and grease, and protect the bearings and gears when handling liquid materials;

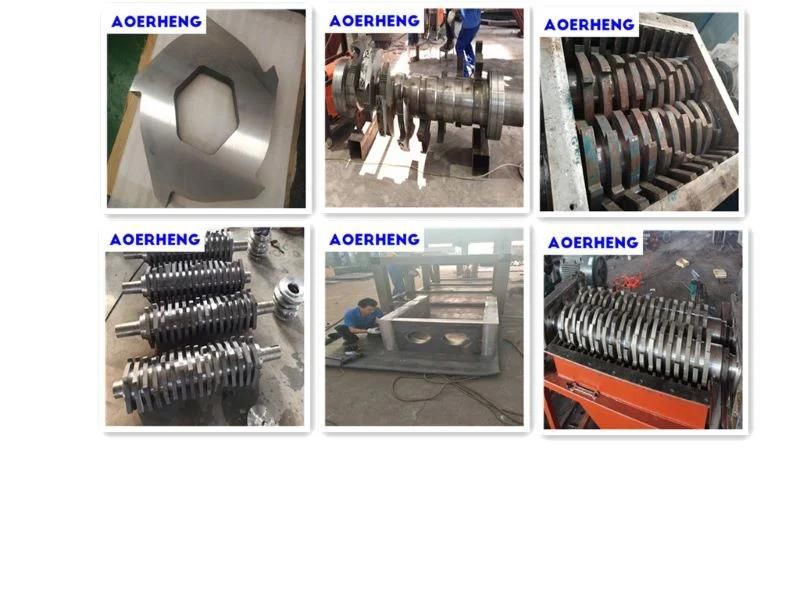

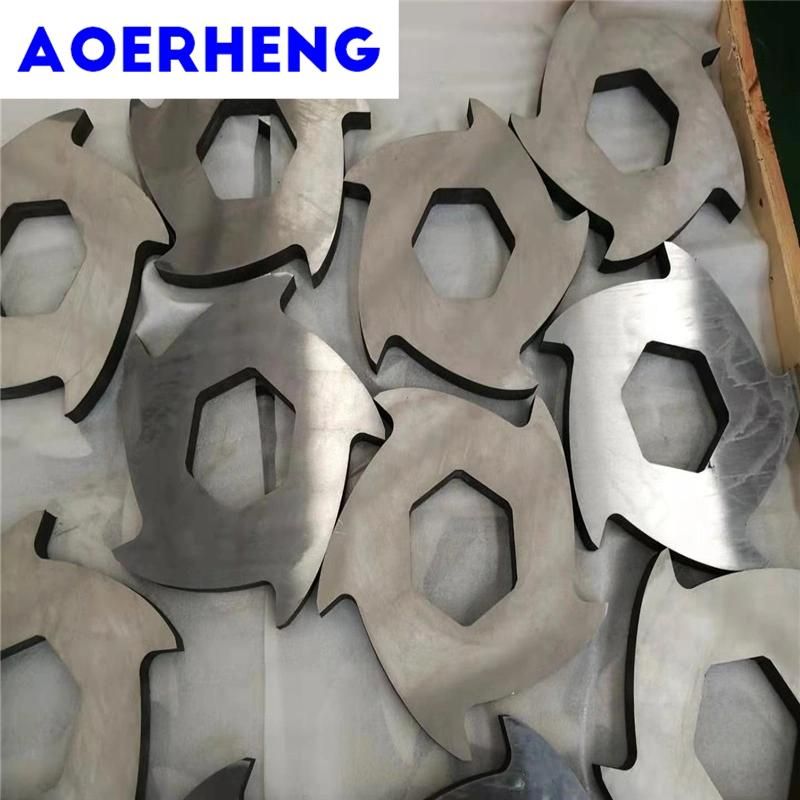

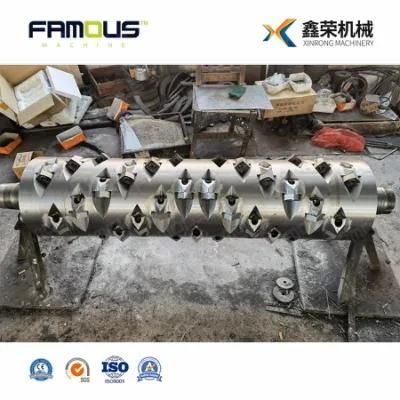

 3.Moving tool and fixed tool: the moving tool is made of special alloy tool steel forging blank, precision machining, multiple heat treatment and low-temperature freezing and heat treatment technology. The overall toughness and hardness are consistent, and can be repaired and used repeatedly to ensure cutting performance and service life. The fixed tool adopts hook installation to optimize the tool replacement function and make the tool  4. Cutter shaft: it is made of high-strength and heavy-duty special steel, which can more reasonably cooperate with the cutter to provide powerful cutting power.3.Parameters of double shaft shredder:

 Serial number      modelTear cavity size
long×wide×high
     (mm)    Blade diameter
             (mm)blade   thickness
         (mm)spindle   speed
        (rpm)motor   power
        (kw)Tearing particle size
              (mm)     yield
       (t/h)        1     2S0206   600×410×230              Φ200          15-3012-2511*23-300.3-0.6        2     2S0208   800×410×220                 Φ200          15-3012-2515*23-300.5-1.0        3     2S0308   800×620×330              Φ300          15-3510-2218.5*23-300.8-1.6        4     2S0310  1000×620×330              Φ300          20-4010-2222*23-301.2-2.0        5     2S0312  1200×620×330              Φ300          20-409-1630*23-301.8-2.8        6     2S0410  1000×830×440              Φ400          20-409-1637*23-302.0-3.6        7     2S0412  1200×830×440              Φ400          20-459-1545*23-303.0-4.5
4.Enterprise certification:

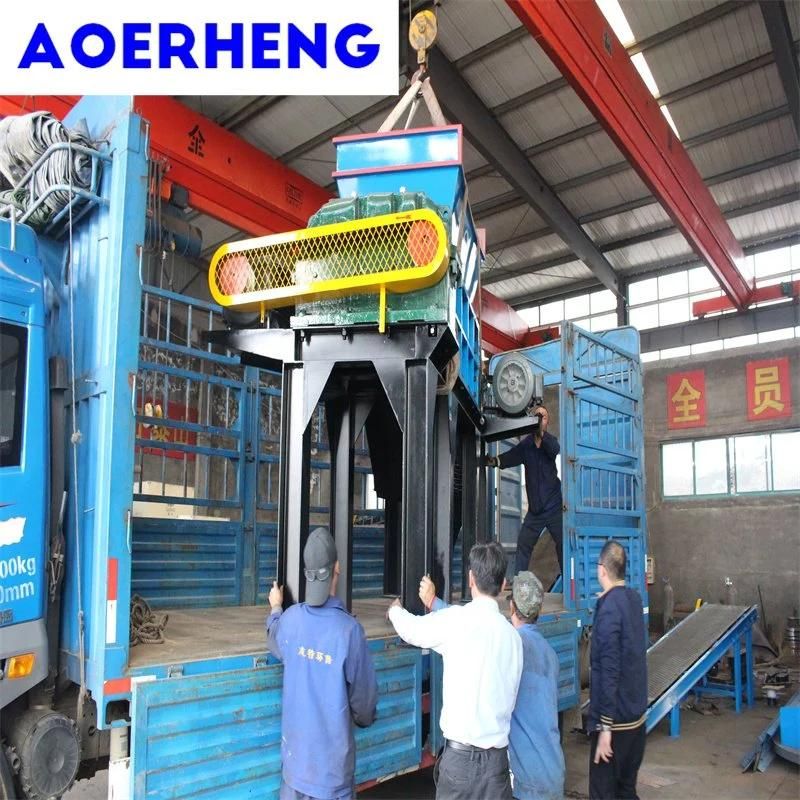

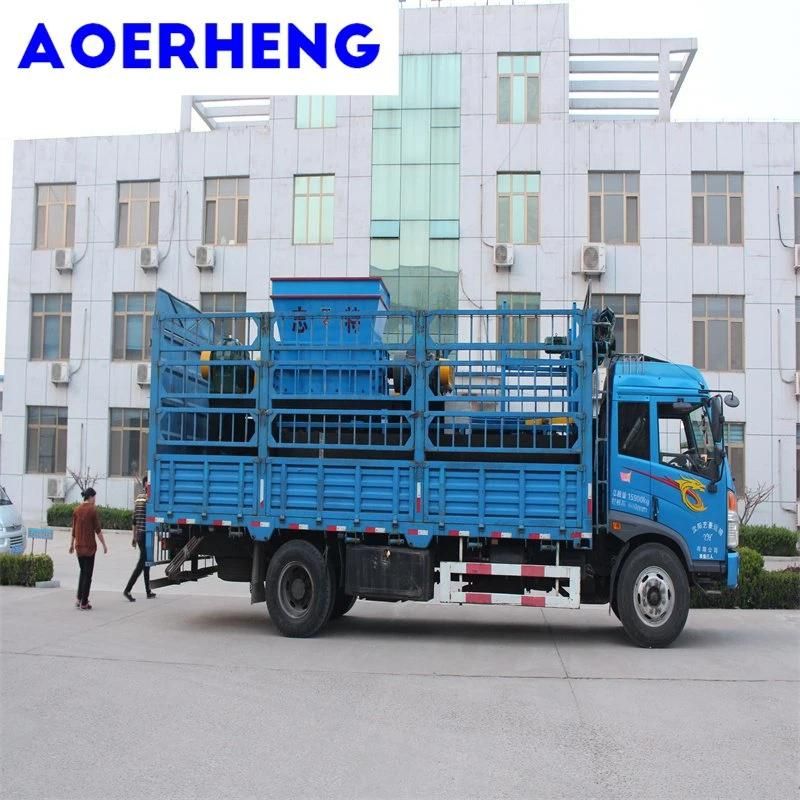

5.Our transportation:


6.Our customer :

FAQ

You May Have Following Questions:

Q1:Are You Trading Company or Factory?

    We are factory for shredder more than 20 years .

Q2:What About The Machine Installation?

     For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful

     installed machinery picture or video;For the productioin line,we could send our engineers to guide  the installation if necessary .

Q3:How About The Spare Parts?

     We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing

     parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts

     in stock.

Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?

    We has people special for after-sale service,if customers outside China have problems when machine working,just feel

     free to send us the picture or video to show us,we will give you solutions in 24hours.

Q5:Could We Visit Your Factory and Test the Machine?

     We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
