• Model NO.：JMJ500A
• Specification：CE, SGS
• Trademark：Lejoy
• Origin：Suzhou, Jiangsu, China (Mainland)
• HS Code：84382000
• Production Capacity：5 Sets ,Month

Basic Info.

Model NO. JMJ500A Specification CE, SGS Trademark Lejoy Origin Suzhou, Jiangsu, China (Mainland) HS Code 84382000 Production Capacity 5 Sets /Month

Product Description

Use:

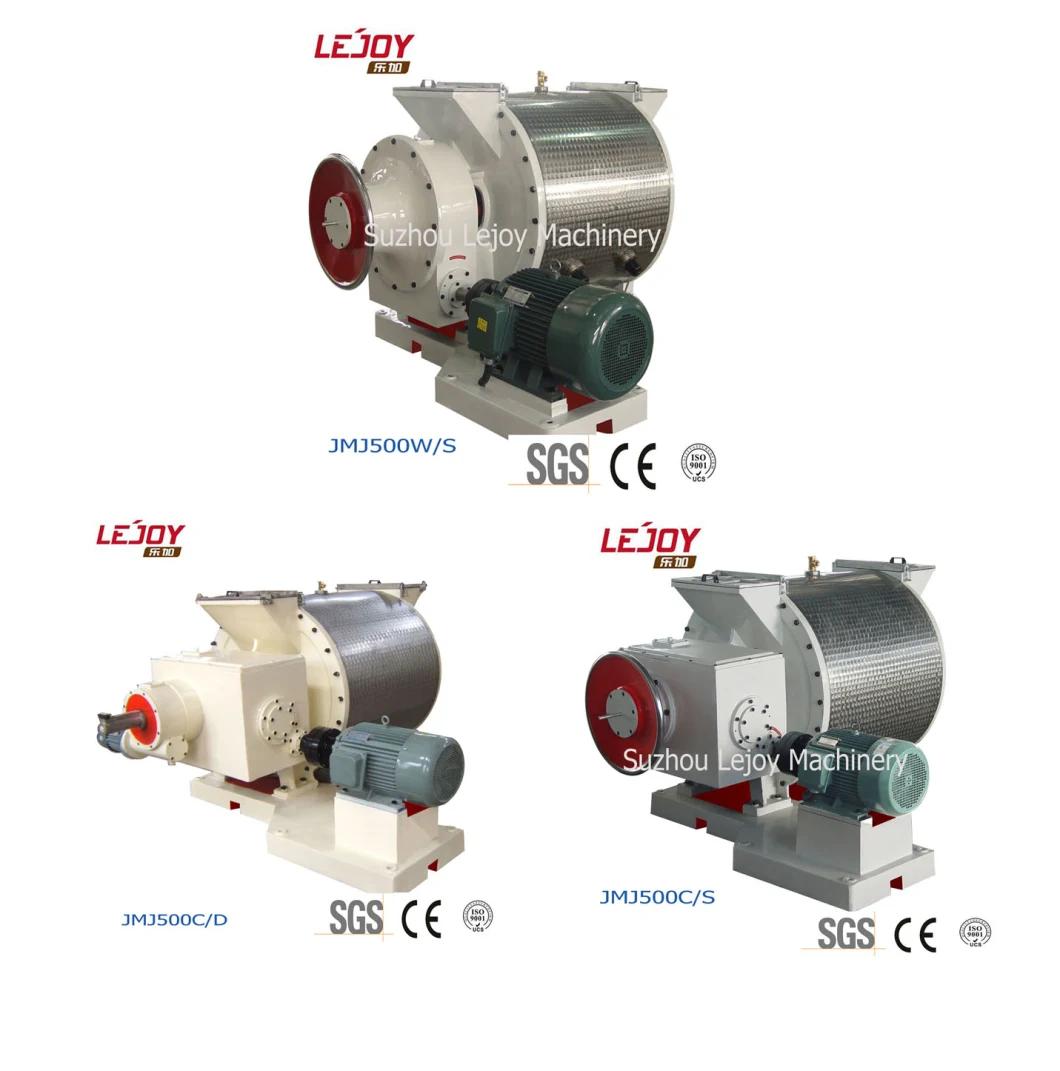

This chocolate conche machine has the function of grinding and refining of paste, which is expected the best equipment in the chocolate production line. It is used for refining chocolate materials, soybean oil, jam and peanut butter products. The chocolate conche is featured with compact structure, easy operation, convenient maintenance, less one-time investment, quick starting and etc.
Main technical:
Main shaft revolution: 37r/min
Refining fineness: 20-25um
Maximum capacity: 500L
Host power: 15KW (main engine)+0.75KW (tension and loose motor)+2.5KW*3(electric heating pipe)
Dimensions: 2600*1200*1500
Body weight: 2340kg

.

Products type	Max capacity (L)	Fine grinding grain (μ m)	Fine grinding time(h)	Overall power (KW)	Weight (kg)	Outside dimension (mm)
JMJ40 JMJ500A	40 500	25-20 25-20	7-9 12-18	2.2   15	360 2300	1100*800*850   2600*1200*1500
JMJ500C/S	500	25-20	12-18	11	2900	2150*1850*1300
JMJ500W/S	500	25-20	12-18	15	3000	2150*2000*1300
JMJ1000A	1000	25-20	14-20	22	4000	2780*1330*1800
JMJ1000C	1000	25-20	14-20	22	4100	2980*1250*1650
JMJ1000W	1000	25-20	14-20	22	4200	2700*1330*1800
JMJ2000	2000	25-20	16-22	37	5300	3320*2000*1950
JMJ3000	3000	25-20	16-22	55	8500	4200*2000*1950
