Configuration ListNO.Descriptions of GoodsQuantity1.Plastic Powder Feeder2 set2.

conical double-screw extruder

1 set3.

PVC double pipe extrusion mould

1 set4.

Double Pipe Vacuum Calibration Tank

1 set5.

Double Pipe Cutter and Haul-off Machines

1 set6.

Double pipe stacker

1 set7.Mixer1 set



Products details

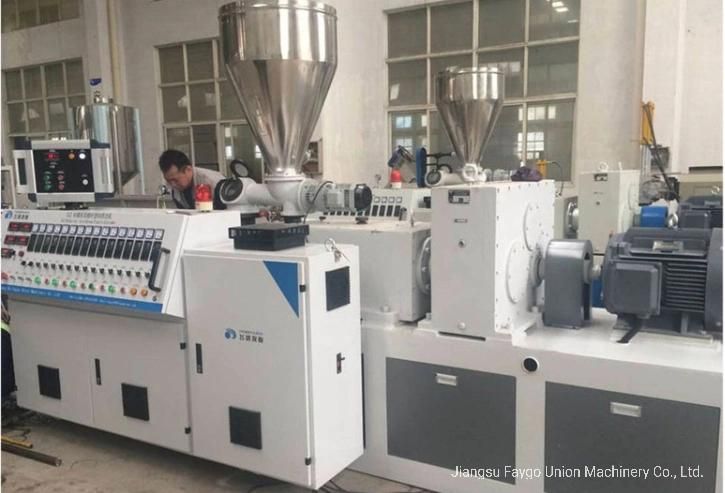

SJZ65/132 conical double-screw extruder

Feeding system: Motor Power: 1.5kw  ;Force Feeder Motor Timing:ABB inverter
Screw :  Diameter of screw: 92/188mm ; Material of screw: 38CrMoAl
Barrel:  Material: 38CrMoAlA; Heating mode: Cast aluminum + stainless steel covering ; Method of cooling: air blow

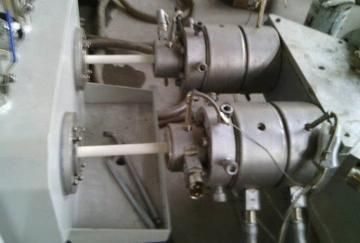

PVC double pipe extrusion mouldMaterial: Made by 40Cr. Inner surface polished
Pipe Thickness Control:With 2 different pipe wall thickness
Calibration mould material:Wearable tin bronze ZQSn5-2-5

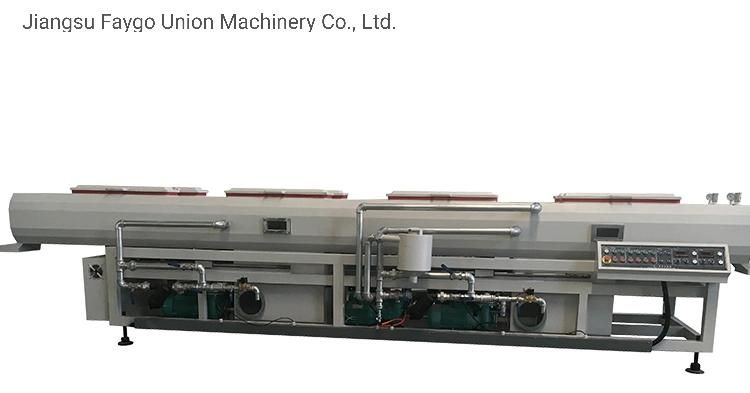

Vacuum calibration tank
Dimensions:  Length: 4000mm
Vacuum pump:Hydroseal vacuum pump Power: 2.2kw x2
 Water pump:  Power: 3KW x 2
 Tank material: Stainless steel, Limit switch; Electric cabinet with water-proof protection

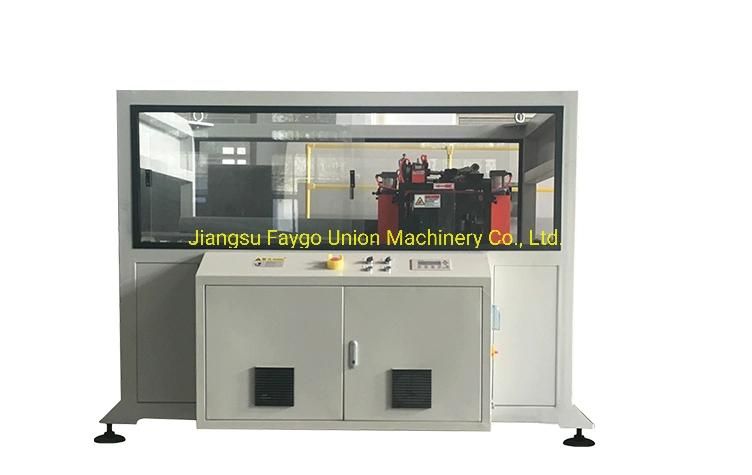

Double Pipe Haul-off Machines

Haul-off length:1000mm
Haul-off Motor Power:0.55KW×4sets
Haul-off Speed :1.1KW×2sets Inverter
Haul-off Speed: 0.5~12 meters/min

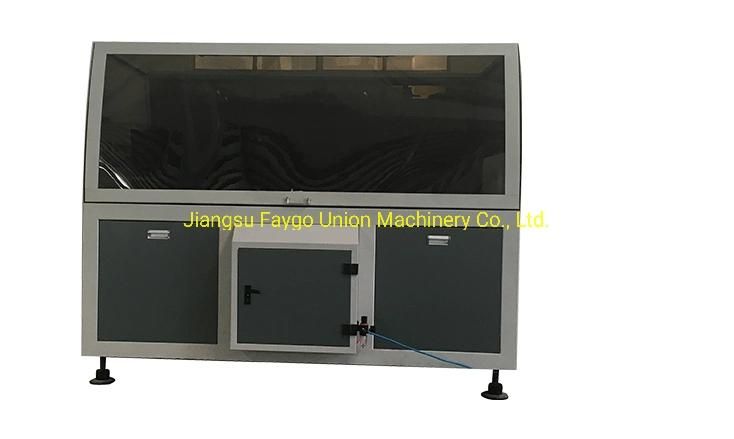

Double Pipe Cutter

Cutting pipe diameter scope:    16~40mm
Saw blade Diameter:  230mm
Cutter motor power:0.75KW×2 sets
Blade Bracket Longitudinal Moving Distance    500mm

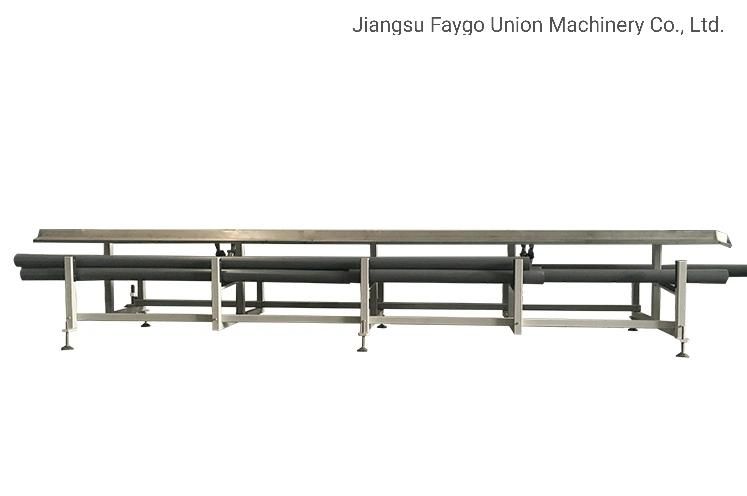

Double Pipe Stacker

The length of stacker: 2 meters
Support-Board:0.8mm stainless steel board
Working Method:    pneumatic, with stroke switch soleplate, to provide the fixed length cutting signal

factory picture:
