• Model NO.：RFL-P20QE
• Origin：China
• HS Code：9013809000
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. RFL-P20QE Origin China HS Code 9013809000 Production Capacity 1000 Sets Per Month

Product Description

1. Feature:

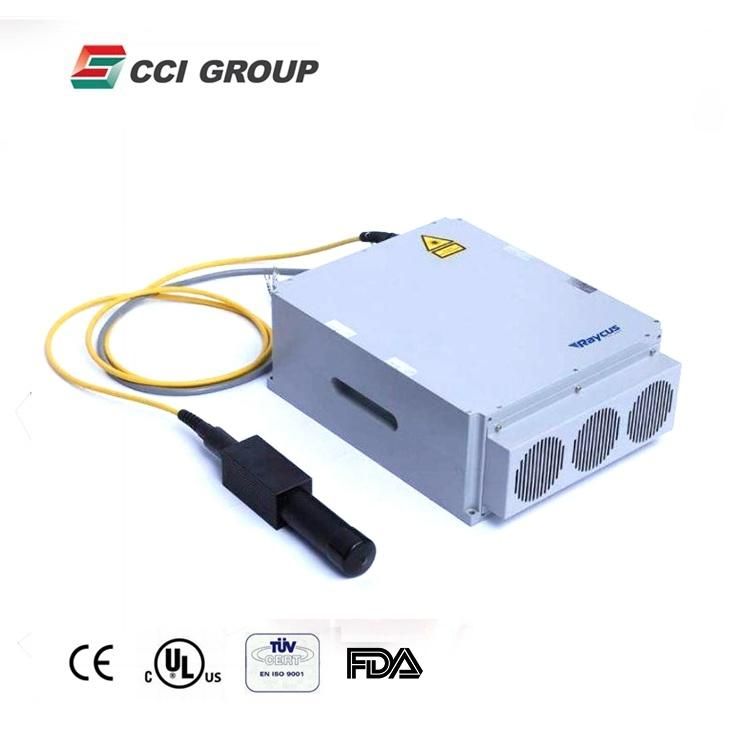

The 10-100W Q-Switched Pulse Fiber Laser Seriesdeveloped by Raycus is the industrial marking and micromachining laser developed by Raycus. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.

All components of the 10-100W Q-switched pulse fiber laser are developed by Raycus independently, with high product reliability. And its good compatibility has well recognized by the market and its quality has reached the international advanced level.

2. Advantage:
Highly stable laser output
High single-pulse energy
High marking efficiencyShort pulse setup time
High reliability
Maintenance-free operation


3. Main Technical Parameters

No.	Item	Parameters
1	Average output power rate	20W
2	Output Wavelength	1064nm
3	Max. single pulse energy	1mj
4	Repetition frequency adjustment range	20-60kHz
5	Pulse Width	90-130ns
6	Beam Quality	Less than 1.5
7	Polarization	Random
8	Power adjustment range	10-100%
9	Power instability	Less 3%
10	Output beam diameter	7±1mm
11	Output fiber length	2m
12	Working voltage (DC)	24V
13	Power consumption	170W
14	Dimension	390*260*120mm
15	Weight	12Kg
16	Cooling Method	Air Cooling

4. Related Products

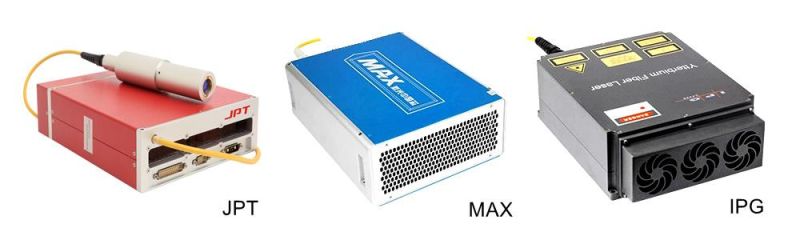

4.1 Laser Source: JPT/ MAX/ IPG

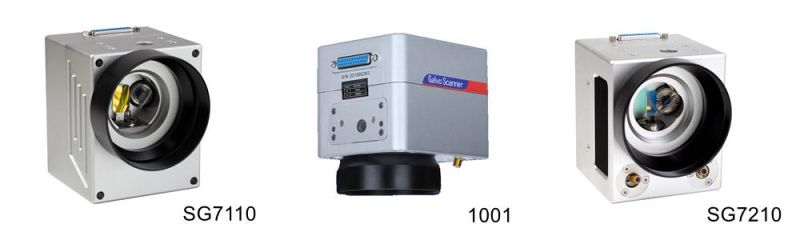

4.2 Galvanometer Scanner: SINO-GALVO

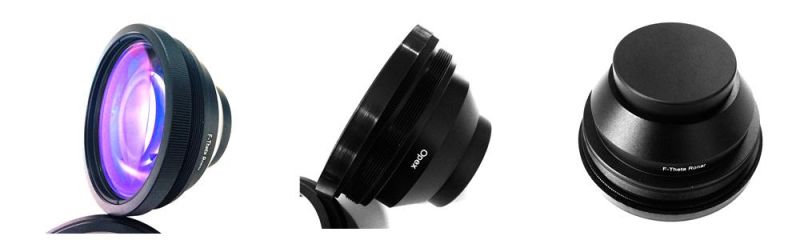

4.3 Field Lens: WAVELENGTH

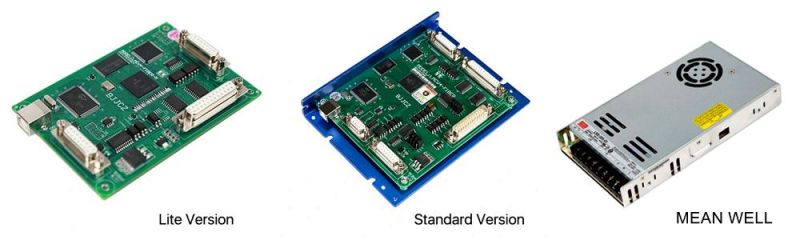

4.4 Marking Card/ Power Supply: BJJCZ/ MEAN WELL

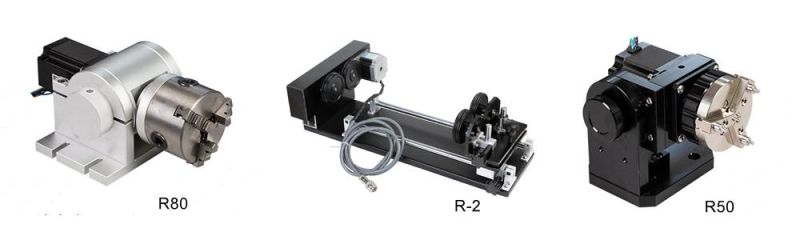

4.5 Rotary Device (If need)
5. Contact Information
