Basic Info.

Model NO. SJ-L Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Transport Package in Nude Trademark SANLONG Origin Wenzhou HS Code 8477800000 Production Capacity 300kg/H

Product Description

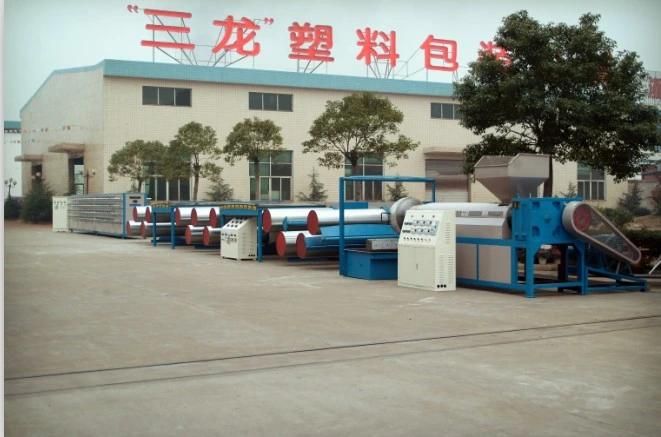

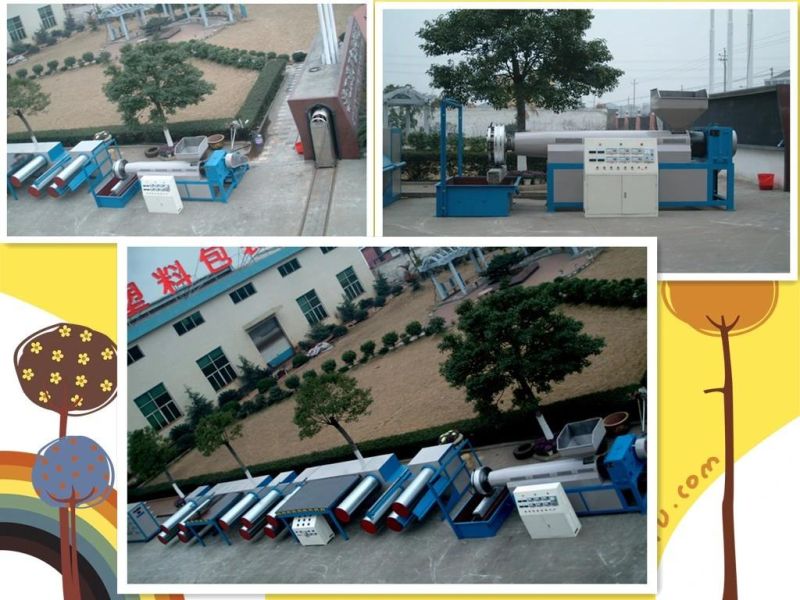

SJ-PLZ Plastic tape extrusion stretching line is specially designed for PP and HDPE with high quality and large capacity.

Capacity: 200~600KG/hour

Available: Woven sack chemical bag foods bag cement bag leno bag jumbo bag geo-textile tarpaulin carpet backing tape artificial grass tape

High Precise T-Die
Simulating extrusion and one-off process molding by CNC guarantee the tape quality.

Intelligentized Control System
The function of data saving, fault alarm can be controlled by touch screen with simple operation.

Haul-Off System
Special design stable flow device and water remove system create the condition for high speed production.

High Speed Winder
By inverter controlled stable tension winding units, the bobbin is formed with equal tension and smooth surface. Speed can be reached 550m/min.

Direct Connection Motor
The motor is directly connected with the extruder, the gear box and connection shaft is removed to save the maintenance requirements and also reduce the power consumption.

Model	Screw dia. (mm)	Screw L/D	Screw speed (r/min)	Die length (mm)	Drawing Speed (m/min)	Stretch Ratio	Main Motor (KW)	Drawing Machine Power (KW)	Heating Power (KW)	Thickness Of Plastic tape (mm)	Extrusion Capacity (Kg/h)
SJ-L145-24	145	1: 26	10-80	2400	15-120	4-7	55	11	120	0.03-0.10	200-245
SJ-L145-25	145	1: 26	10-80	2500	15-120	4-7	55	11	130	0.03-0.10	200-245
SJ-L155-26	155	1: 27	10-80	2600	15-120	4-7	55	15	140	0.03-0.10	210-270
SJ-L155-28	155	1: 27	10-80	2800	15-120	4-7	75	15	165	0.03-0.10	220-285
SJ-L160-30	160	1: 28	10-80	3000	15-120	4-7	75	15	175	0.03-0.10	230-300
