• Model NO.：KQ Series
• Heating：Electric ,Steam ,Gas ,LNG ,LPG
• Mixing Speed：36rpm, 48rpm,96rpm, 2900rpm
• Mixer：Follow Your Request
• Working Life：More Than 10 Years
• Tank Function：Heating, Fermenting, Mixing , Warm Keeping
• Voltage：Follow Your Request
• Packing：Wooden Box
• Motor Brand：Siemens ,ABB,China Brand
• Cleaning：CIP Cleaning Ball
• MOQ：1set
• Spare Parts：Available
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：100sets Per Month

Basic Info.

Model NO. KQ Series Heating Electric /Steam /Gas /LNG /LPG Mixing Speed 36rpm, 48rpm,96rpm, 2900rpm Mixer Follow Your Request Working Life More Than 10 Years Tank Function Heating, Fermenting, Mixing , Warm Keeping Voltage Follow Your Request Packing Wooden Box Motor Brand Siemens /ABB/China Brand Cleaning CIP Cleaning Ball MOQ 1set Spare Parts Available Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per Month

Product Description

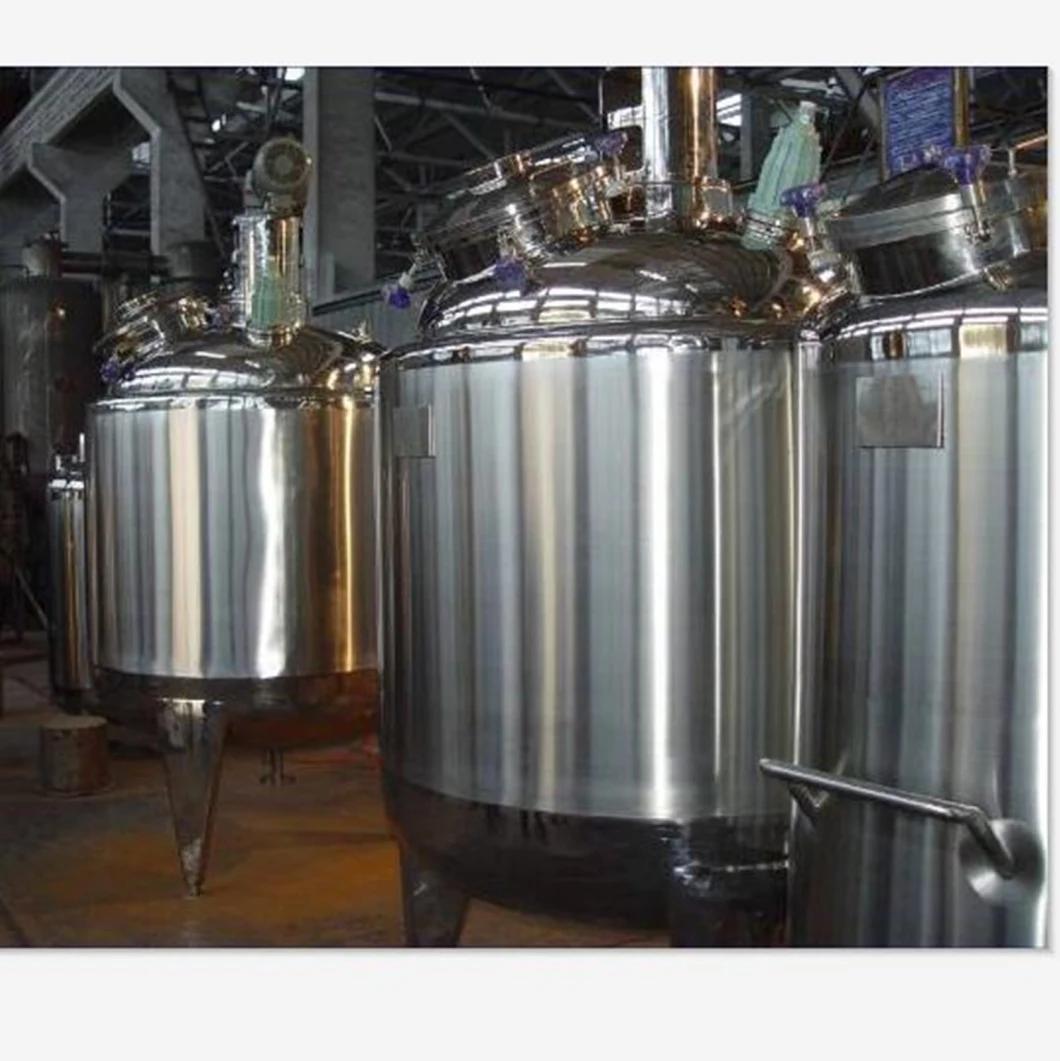

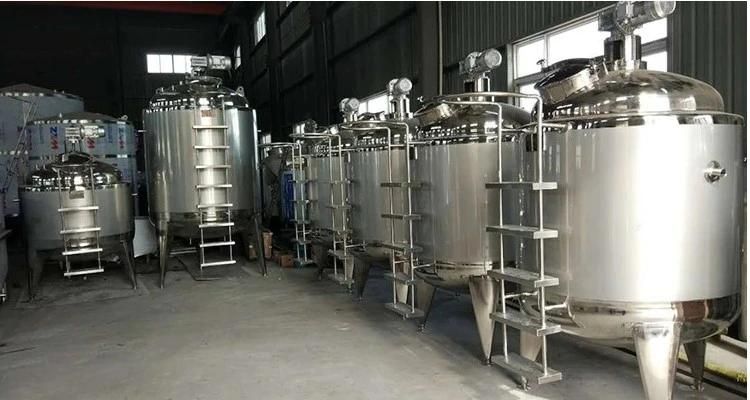

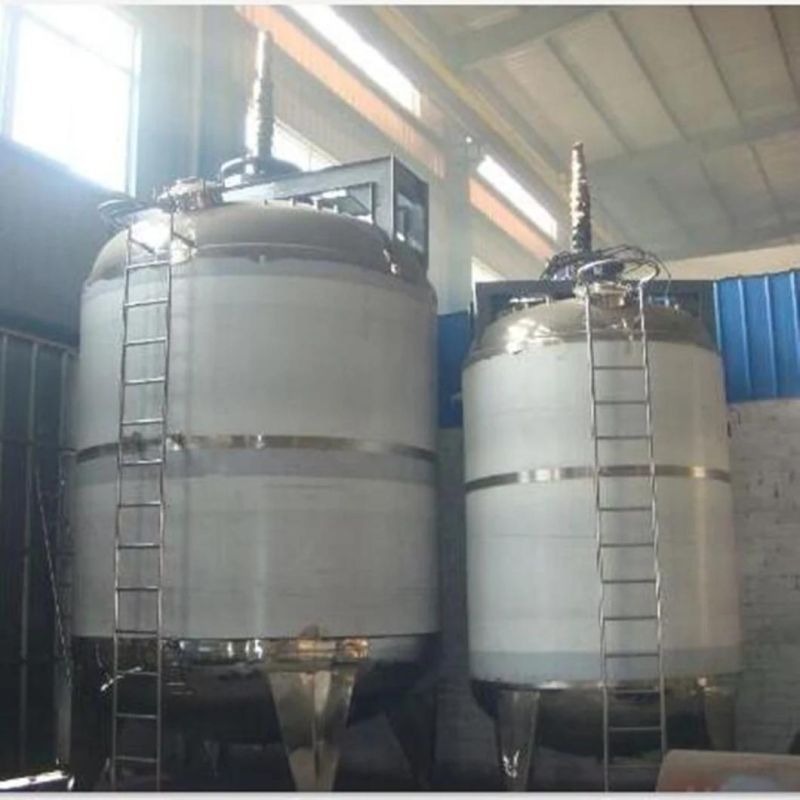

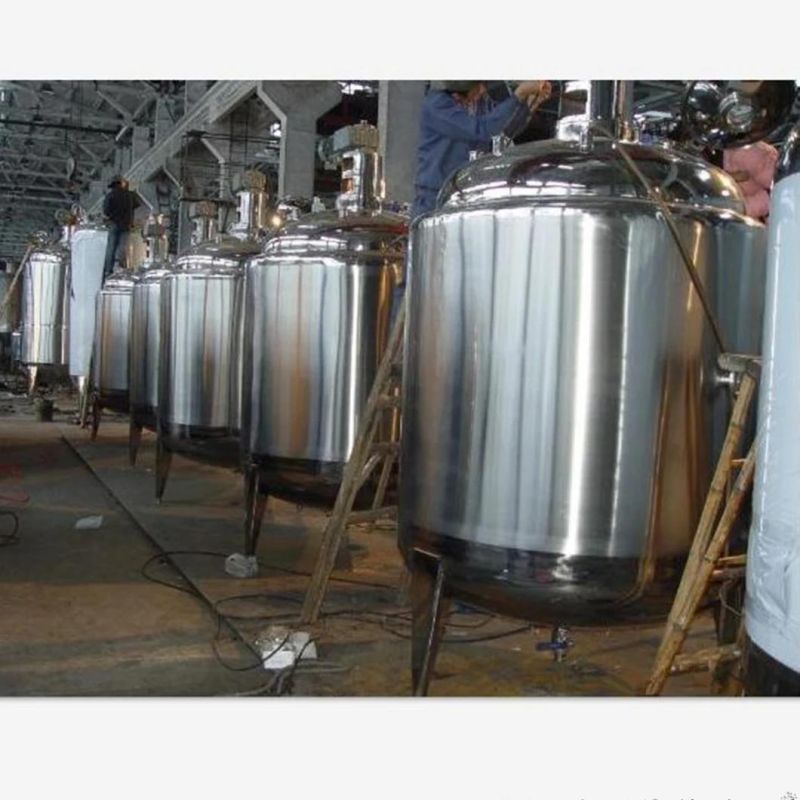

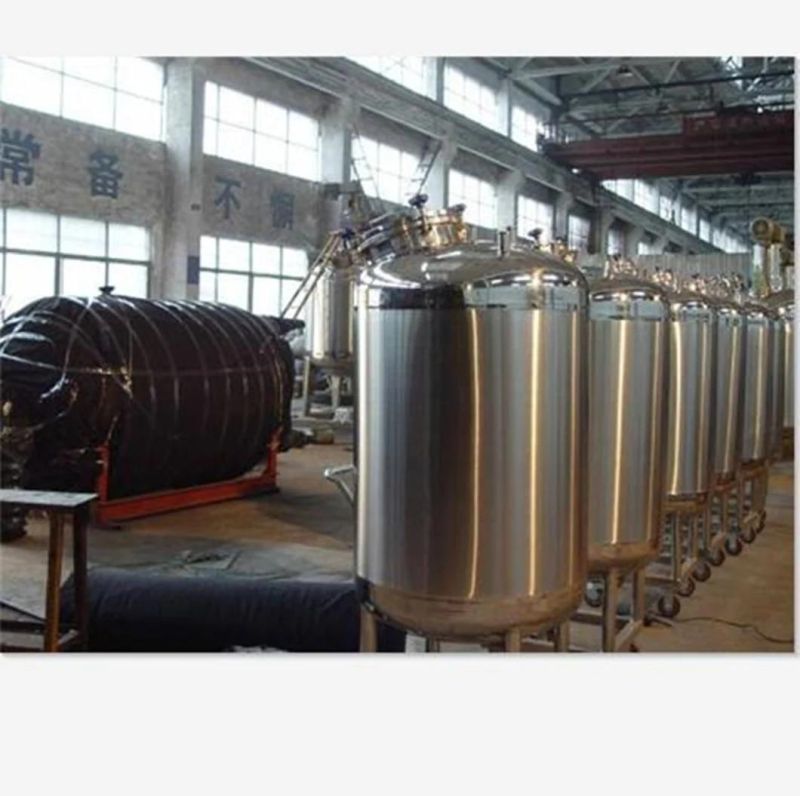

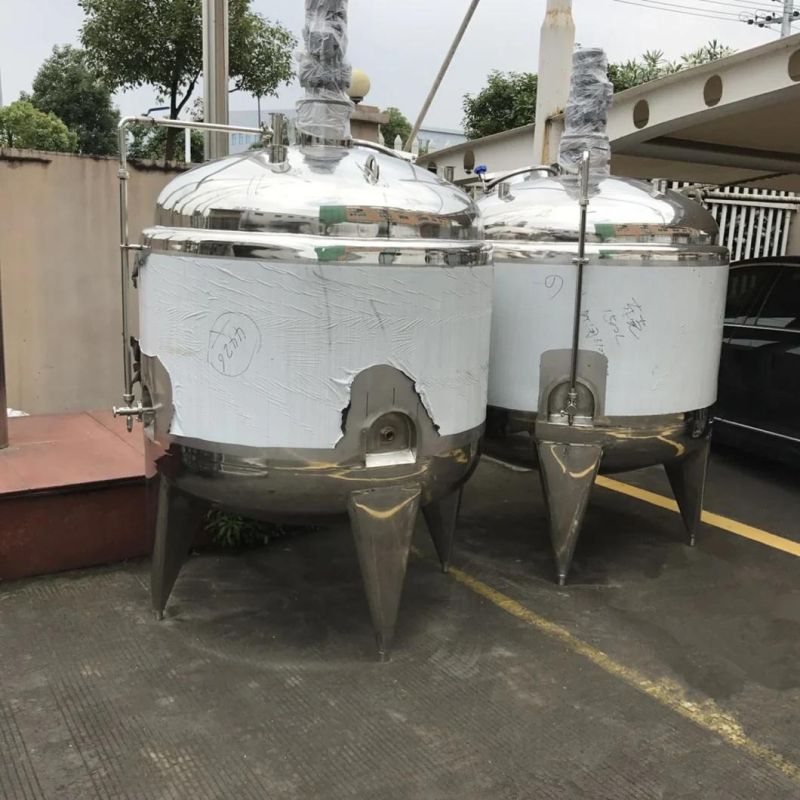

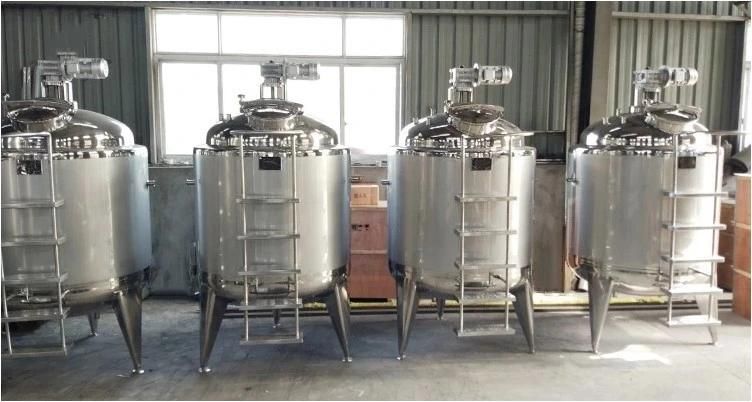

Double Jacketed Vessel for Milk Beverage Chemistry Pharmacy Industry



Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate

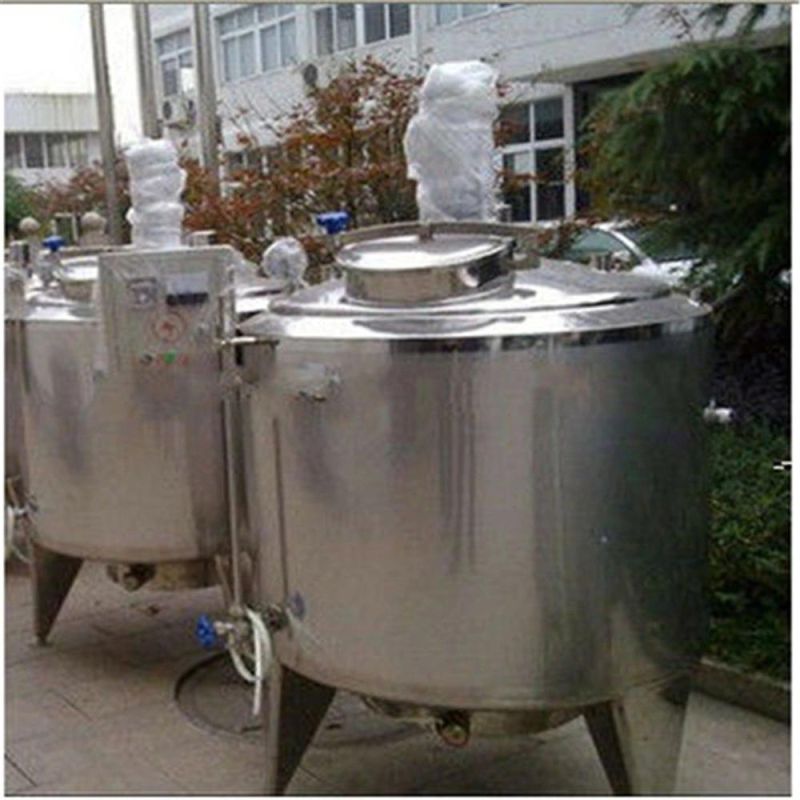

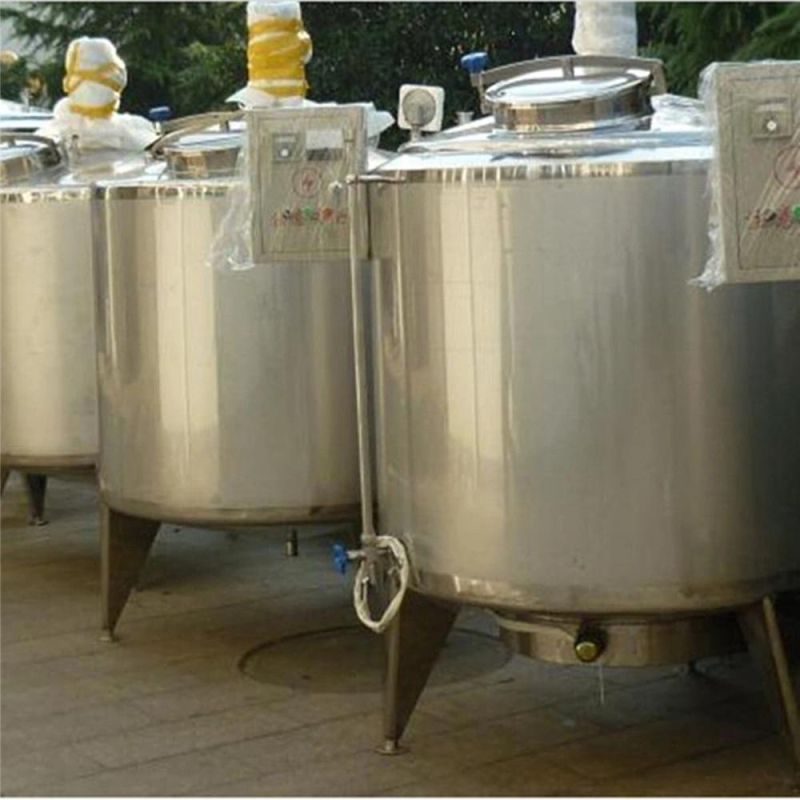

ELECTRIC HEATING MILK BATCH PASTEURIZER

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Other specifications can make to your order .
 Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,
(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)

Double Jacketed Vessel for Milk Beverage Chemistry Pharmacy Industry .
