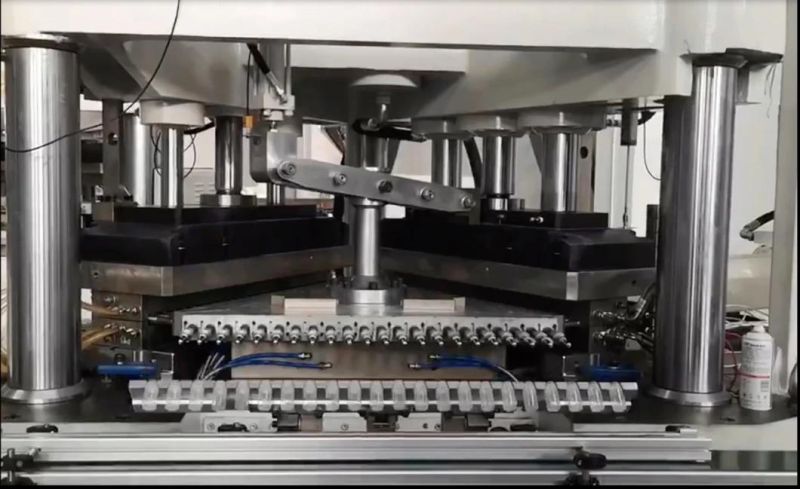

22 Cavity Injection Blow Molding Machine
Guangzhou 247 International Trading Co., Ltd.Base Info
Description
Technical Parameters Preform systemUnitSTIBM95S Screw diametermm65 Screw L/D L/D23:1 Shot volumecm3660 Injection weight(HDPE)g625 Max.Screw speedrpm10-235 Heating capacityKW12.6 No.of heating zoneQty3+N Clamping system Clamping force of preformKN1008 Clamping force of blowingKN221 Opening stroke of mold plantenmm160 Lifting H of rotary tablemm80 Max.Platen size(L×W)mm900×480 Min.mold thickness(H)mm280 Heating capacity of mouldKW8 Stripping system Stripping strokemm260 Dry cyclesec3 Driving system Motor powerKW26+26+3 Hydraulic pressureMpa14 Product range Suitable bottle rangeml5-800 MAX.bottle heightmm≤220 Max.Dia.of bottlemm≤100 Other Min.air pressureMpa1 Discharge rate of compressed airm3/mm≥1 Water flowagem3/h6
()Total rated power with mold heatingKW75.6 Dimension(L×W×H)M5.0×2.0×2.6 Net weinghtton12STIBM95S Injection blow molding machine main parts configuration
()Total rated power with mold heatingKW75.6 Dimension(L×W×H)M5.0×2.0×2.6 Net weinghtton12STIBM95S Injection blow molding machine main parts configuration
| Name | Brand | |
| 1 | Electro-Hydraulic system | ++ INOVANCE controller+motor+SUMITOMO pump :++Or TECHMATION controller+PHASE motor+ECKERLE pump |
| 2 | Hydraulic motor | INTERMOT OR STF |
| 3 | Hydraulic valve | YUKEN |
| 4 | Seal Kit | COG,DINGZING,HALLITE |
| 5 | Accumulator | OLAER |
| 6 | Oil cooler | DELTA |
| 7 | High-pressure hose | EATON orCONTITEC orPARKER |
| 8 | Air Valve | SMCFESTO |
| 9 | Pneumatic connector | CAMOZZI |
| 10 | Control system | PLC+ OMRON+MCSG |
| 11 | A.C. Contactor | SCHNEIDER |
| 12 | Relay | , OMRON or SCHNEIDER |
| 13 | Promixity switch | OMRON |
| 14 | Linear Scale | GERFAN |
