• Model NO.：OMM 8~OMM50
• Max.Torque (Cont.)：25nm
• Max.Output Power (Cont.)：2.4kw
• Max.Operating Pressure(Cont.)：10MPa
• Max.Flow (Cont.)：1620L,Min
• Max.Weight (Cont.)：2kg
• Inlet Pressure (Cont.)：17.5MPa
• Length：114mm
• Port：Botton Port
• Transport Package：Plastic Tube +Carton+Wooden Pallets
• Specification：small volume high speed motor
• Trademark：Blince
• Origin：Dongguan, China
• HS Code：8412291000
• Production Capacity：1000 Per Month

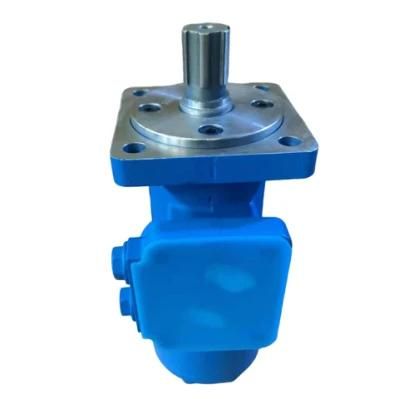

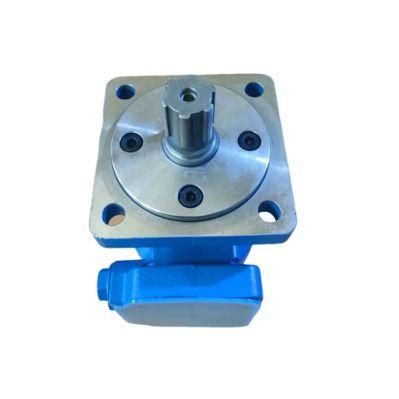

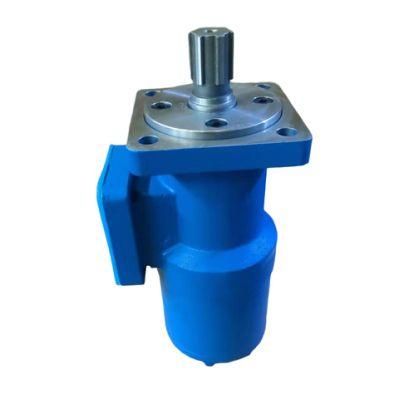

BLINCE Orbital hydraulic motor OMM

Displacement:8 / 12.5 / 20 / 32 / 40 / 50Flange:3-M6 Circle-flange, pilotØ 31.5× 5
3-1/4-28UNF Circle flange, pilot Ø 31.5× 5
2-Ø 9 Rhomb-flange, pilotØ 63× 2Output shaft:ShaftØ 16, parallel key 5× 5× 16
ShaftØ 15.875, parallel key 4.8× 4.8× 19.05
ShaftØ 16.5, involute B17× 14, DIN5482Ports/drain port:G3/8, G1/8
9/16-18UNF, 3/8-24UNF
End port G3/8, G1/8
End port 9/16-18UNF, 3/8-24UNF
Rotation directionalForward
Reverse
Paint:No paint / Silver grey / Black / Blue
Application areas:
* Construction equipment
* Agricultural equipment
* Material handling & Lifting equipment
* Forestry equipment
* Lawn and turf equipment
* Special purpose
* Machine tools and stationary equipment
* Marine equipment
* Any More

BLINCE hydraulic motor can substitue for:
Sauer-Danfoss orbit motor  OML/ OMM/OMP/ OMR/ OMH/ OMEW/ OMS/ OMT/ OMV
White orbit motor  WP/WG/WR/RS/DR/RE/CE/HB/WS/D9 series
Parker orbit motor  OMP/TC/TB/TE/TH/TF/TL/TG/OMS/OMT
Eaton Char Lynn orbit motor  J/JH/JS/2K/6K/J6K/10K
M+S orbit motor  MLHM/MP/MR/MH/MS/MT/MV
SAM orbit motor  BG/BR/BS/AR/HR/HT
Brevini orbit Motor  BG Series
Japen OPN ORB-GS Series
