• Model NO.：NC
• Type：3 in 1 Filling Machine
• Application：Juice
• Capacity：6000bph
• Weight：2400kg
• Certification：ISO,Ce
• Filling Principle：Gravity Filling
• Bottle Volume：200ml~2500ml
• Material Type：Fresh Juice , Energy Drink
• Structure：Rotary
• Transport Package：Exported Wooden Case
• Specification：2550x1750x2100mm
• Trademark：Nancheng Machinery
• Origin：China
• Production Capacity：30 Sets,Month

Containers and specificationsProject Name: Full Automatic Complete Juice 2000-20000bph Production LineHot Filling Fruit Juice MaterialShapeFilling volumeFilling level(mm)Neck typePET BottleSquare or Round Bottle 100-2000ml Distance from bottle neck
According requestAs requestAdjustable specifications of the bottle type(Middle Mould Base) Bottle diameter ≤105mm Bottle Height≤335mm Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.Juice PreparationFruit , Concentrate, Powder mixing .....Container Label & Control ModePackaging systemPalletizing system
Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / AutomaticPacking systemMin, Spec.Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer  Manual
Film shrinker
Wrap Around packer
Robert Packing Machine 1*2
2*3
3*4
4*6
3*5 User Ambient ConditionsTemperature:10~40ºC;Humidity:No dewUser Electrical Supply SpecificationVoltage:380V±5%, 3phase; Frequency:50HZ±1%








ModelRCGF8-8-3RCGF12-12-5RCGF18-18-6RCGF24-24-8RCGF32-32-10RCGF40-40-12RCGF50-50-12RCGF60-60-15

Capacity b/h2000300060001000013000160002000024000Power kw3.04.34.85.68.29.51113Weight kg18502200260029003500450058006800Power supply380V/50HZ,380V/60HZ,220V/50HZ,220/60HZ

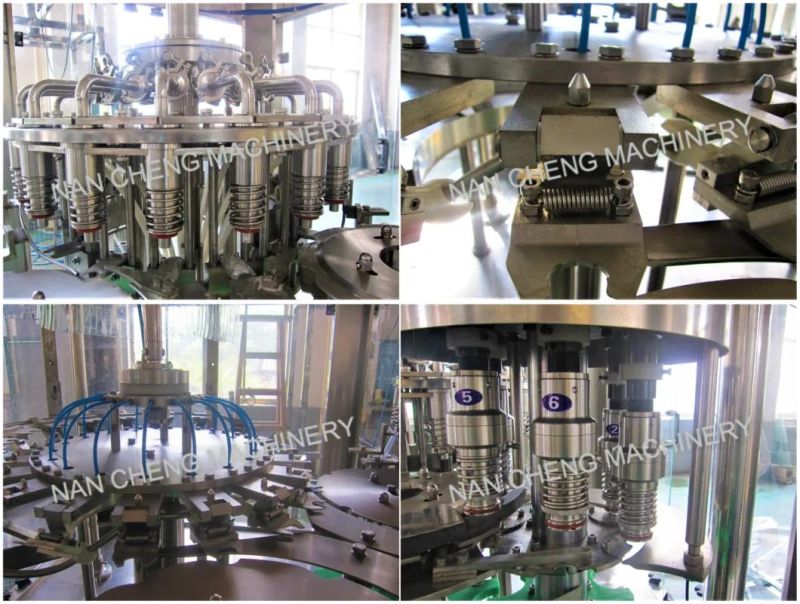

Main technical parameter
1. This juice filling machine has a compact structure,perfect control system,easy to operate and highly automated.
2. The parts contact with juice filling machine  is made of quality SUS, anti-corrosive, and easy to clean.
3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4.Only by changing the bottle block, star-wheel, can realize to fill the changed bottle shape.
5. The juice filling machine adopts perfect overload protective device can ensure the operator and machine safe.
6. This juice filling machine adopts frequency converter, which can adjust the capacity suitably.
7. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
8.The control system has many functions, such as control producing speed, and production counting etc.
9.The electric components and pneumatic components are all introduced from world famous brand products


Main Features of Juice Rinsing Filling Capping and Packing Machine:

1 The juice filling line processing capacity is varied from 60 tons/day to 1500 tons/day.
2 The juice production line Can deal with similar characteristic of fruits.
3 Using the high efficient of destoner to improve the mango output percentage effectively
4 Using efficient belt juice extractor to improve the juice efficiency and the output percentage.
5 The production process fully automatic PLC control to save labor and  Facilitate production management
6 Low-temperature vacuum evaporation ,Maximize reserve the  flavor substances and nutrients  also save energy.
7 Tubular UHT sterilizer and Aseptic filling machine, produce high-quality aseptic juice products
8 Automatic CIP cleaning ,ensure the entire juice filling line equipment of  food hygiene and safety requirements


Technical Parameter of Juice Filler and Capper:

Raw material:Peach,apricot,plum and other similar flesh fruits with hard seed  End product:Nature Juice, juice Concentrate, transparent juice, cloudy juice, canned fruits  Production capacity:20T/D-2000T/DOutput percentage:  ≥90%Solid content  7~12BrixPacking type for end product:Aseptic Bag/glass Bottle/PET Bottle /gable Top Box/ Raw materialFresh Mango / pineappleEnd productTransparent juice and cloudy juice, concentrated juice and nfcProcessing capacity60- 1500 tons / dayOutput percentage50-75%Solid content in NFC10-20BrixSolid content in concentrated juice60~72BrixEnd packageAseptic bag/gable top box/PET bottle

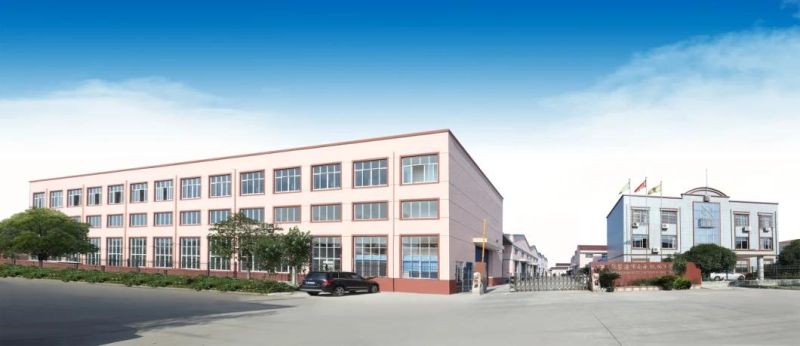

  Factory Introduction



Zhangjiagang City Nancheng Machinery Co.,Ltd is the professional manufacturer of beverage machines in China. The factory plant is located in Zhangjiagang City of Jiangsu Province, about 110km from Shanghai and 50km from Wuxi.

Our main products covers: bottle water production line/ juice drink production line/ carbonated drink production line/ 5 gallon barrled water production line and auxiliary equipment for thers lines.

15 years of experience in the industry insu prores first class quality of our products. A good reputation of service bought us customers from dozens foreign countries.

Looking forward to establishing a great business relationship you.

welcome to NANCHENG

Dear Mr/Ms:
This is Lyn, the sales from Zhangjiagang NanCheng  Machinery Co., Ltd.
Be honest with you, NanCheng has been specialized in the production of beverage machinery for fifteen  years, which is a professional manufacturer of beverage packaging solutions. We have rich experience in manufacturing and maintenance. Our company has exported into America, Japan, Thailand, Russia, Zambia, Indonesia, Kazakhstan, Yemen, etc.
Pls trust us, that our company can help you and serve you well.

Service Advantage:
1.Competitive price with good quality.
2.ODM/OEM srvice available.
3.In-time delivery guarantee.
4.One year warranty for whole machine.
5.One year spare parts free of charge.
6.Engineers abailable for installation and setting up.
7.Training of workers to handle operation.
