Basic Info.

Model NO. ABLB65I Application Bottles, Jars, Jerry Cans, Gallons, Containers Station Single Station or Double Station Die Head Single Head or Double Head Max. Product Volume 5L Auto-Deflashing with Auto-Deflashing Clamping System Toggle Type Clamping System Mould One Cavity or Two Cavity Suitable Material HDPE,PP,PVC,PS,PETG,LDPE Sutiable 0~5L Bottle Made in China Extrusion Motor Power 15kw Oil Pump Motor Power 5.5kw Extrusion Heating Power 12kw Head Heating Power 5.7kw Cooling Fan Power 0.42kw Transport Package Film Packing Specification ABLB65I Trademark DAWSON Origin Jiangsu Zhangjiagang HS Code 8477301000 Production Capacity up to Product

Product Description

 DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru...
Automatic Extrusion Blow Molding Machine ABLB65I












Automatic Extrusion Blow Molding Machine ABLB65I

ABLB65I full-automatic bottle making machine is specially designed for plastic chemical bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic bottles not over than 5Liters.





1. Suitable products
0~5L HDPE, PP bottles

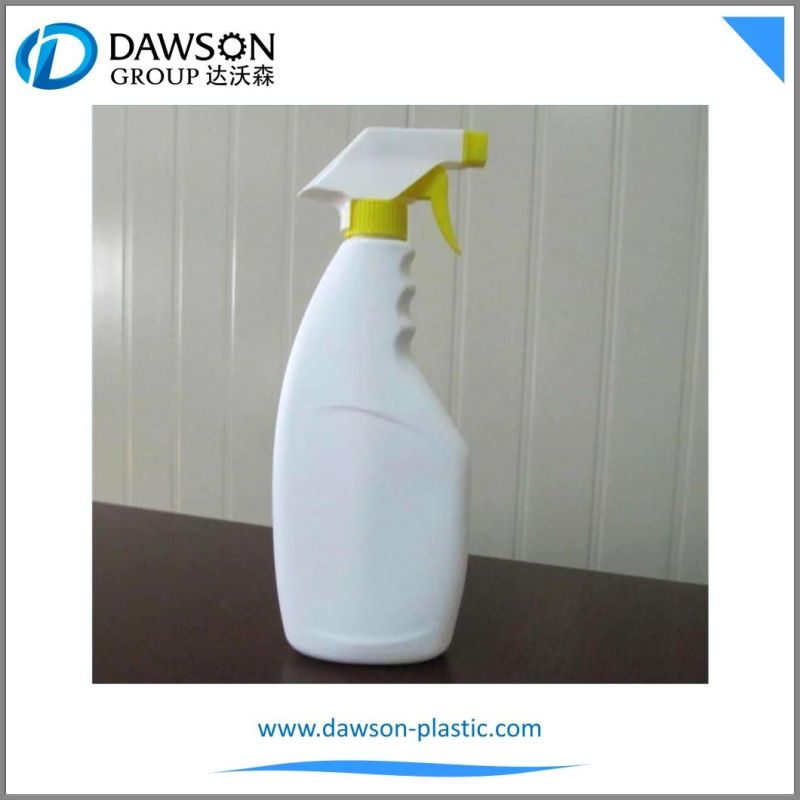

Applications: Milk bottles, food pack containers, jars, chemical bottles,
Lubricants bottles, household bottles, detergent/shampoo bottles, oil bottles.

2. Station
This machine can be double station or single single station, depends on your output demands.

3. Die head
This machine when using single die head, can make 2L to 5L bottles,
, the die head can also be changed to double die head.

Single die head (2~5L)
Double die head (0~2L)


Changing the die head system takes around 1.5~3h, this also included heating time.

Max. Product volume	5Liters
Out put capacities	150~180pcs/h
Screw diameter	65mm
Screw L/D ratio	24L/d
Screw drive power	18.5kw
Screw heating capacity	6kw
Heating zones	3zones
HDPE output	80kg/h
Oil pump drive power	7.5kw
Clamping force	65kn
Mold max size	148-568mm
Mold stroke	330*370mm
Max die diameter	160mm
Blowing pressure	0.6mpa
Air volume	0.6m³/min
Cooling water pressure	0.3mpa
Water consumption	50L/min
Machine size	3.1*1.5*2.7m
Machine weight	5.5ton
