High Speed ABA PE Agriculture Film Extrusion Machine Price
Nanyang Yukang Photonics Co., Ltd.Base Info
Description
360Take-off wond-up speed 60-80m/min 60-80m/min 60-80m/min 60-80m/min 60-80m/min Total Power(kw) 38 50 65 78 100 Weight(T) 4.5 5 7 10 16
Use:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
OPTIONAL EQUIPMENT:
1) COROAN TREATER
2)ROTERY DIE DEVICE
3)THICKNESS AUTO CONTROLLER
4)FILM WIDTH AUTO CONTROLLER
Use:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
OPTIONAL EQUIPMENT:
1) COROAN TREATER
2)ROTERY DIE DEVICE
3)THICKNESS AUTO CONTROLLER
4)FILM WIDTH AUTO CONTROLLER
| 9 | Barrel and screw material: BIMETALIC Screw and 38CrMoAl barrel |
| 10 | Die HEAD : fixed die head with double vent air ring |
| 11 | Gear box: water cooling reducer, hard tooth surface |
| 12 | AIR BLOWER :5.5KW(Detal inverter control) |

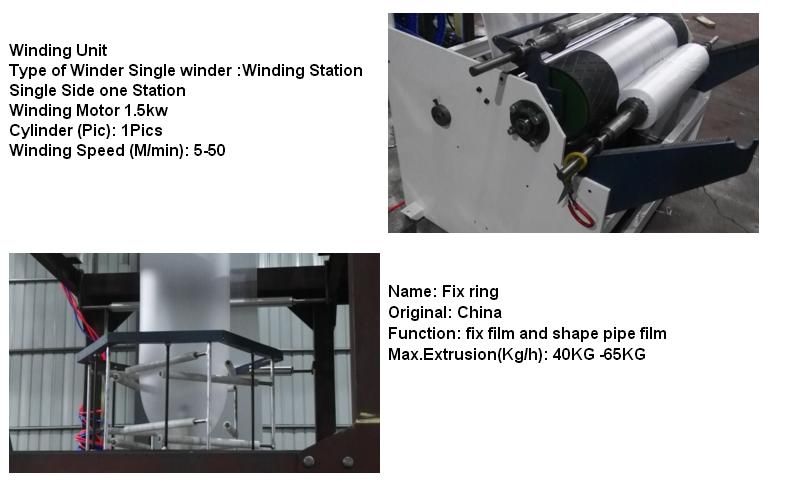

| 13 | single winder : automatic rewinding and automatic changer roll ,control by PLC ,with two air shaft |
| 14 | counter of metric |
| 15 | Main motor : China motor With inverter control (China BRAND) |
| 16 | Heating ring : casting -AL material |
| 18 | with pneumatic cylinder on top tower and winder side |
| 19 | Line speed :100m/min |
| 20 | With Embossing roller |
| 21 | With Gusset device |
| 22 | Bubble fixer :Aluminium material figuration frame |
| 24 | Other low-pressure electrical part : China brand |
| 25 | Power supply: 380V,3 phase, 50 HZ/Cycles. |
| 26 | UP and down device: inner type up and down, . 1pc |
