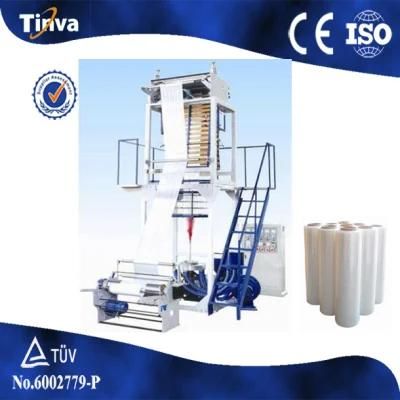

NameDataMarkSingle screw extruder

fine grinding hard gear box450 gear boxChina standScrew,  CylinderScrew diameter: φ65mm, Screw L/D length=30/1, Material: 38CrMOAIAZhoushanrotary speed of screw0~80(r/min)
Max film width1200(mm)
Min film width400(mm)
Max film thickness0.1((mm)/ one layer
Min film thickness0.006(mm)/ one layer
Cylinder cooling fan3 phase centrifugal fan  1 set
Cylinder heat ringStainless steel
Main motor or extruder3-phase asynchronism motor 22kw
With frequency speed inverterCover of main partInteger
Material feedingManual
Die head flangeTumble in
Die head heat ringStainless steel
Temp controlDigital type
Traction system

traction frameFixed
Length of Traction roller1300mm
Traction motor1.5KwWith frequency speed inverterTraction speed0~50(m/min)
Traction roller open and closePneumatic
Plywood deviceWooden Manual adjusting
Structure style of bubble stabilizerBlock pole
Guide roller diameter60mm(mm)
Rewinding system

Rewinding styleOne station passivity rewind
Rewinding motor3-phase torque motor 10N*mWith speed adjustRewind rollerManual normal roller(3'' inner) 2 pcs
Die

Die Head DiameterHDPE: 100mm
LDPE: 250mmSize be your optioanlCooling system

Fan ring and fan piece780 type fan ring, equip with fan piece according to die
Air blower3 phase centrifugal fan 2.2Kw
Temp controlCursor type
Other accessory

Tool1 set
Size

Max Output65kg
Overall dimension6000*2400*4500mm(L*W*H)
Weight2.6T
