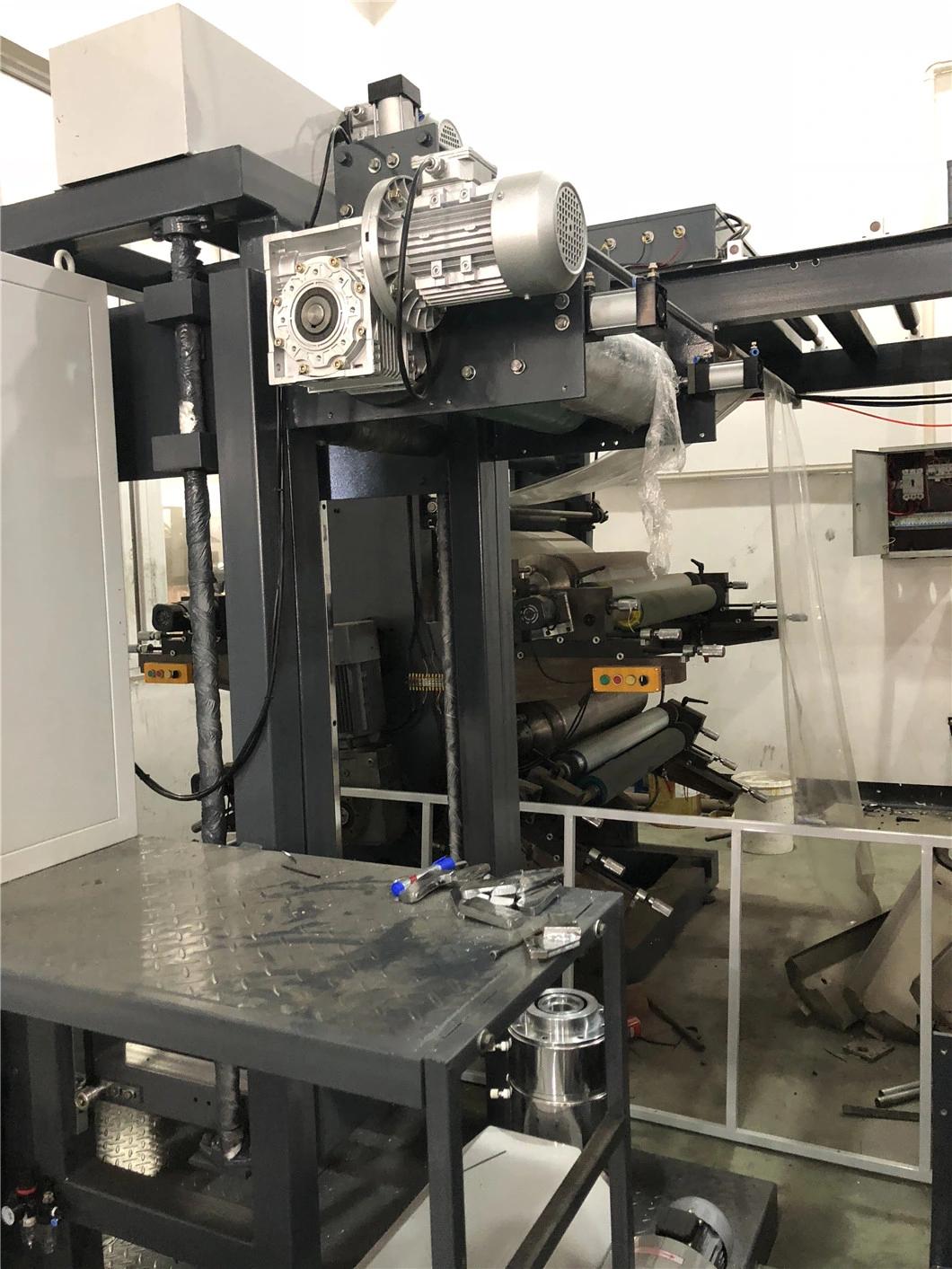

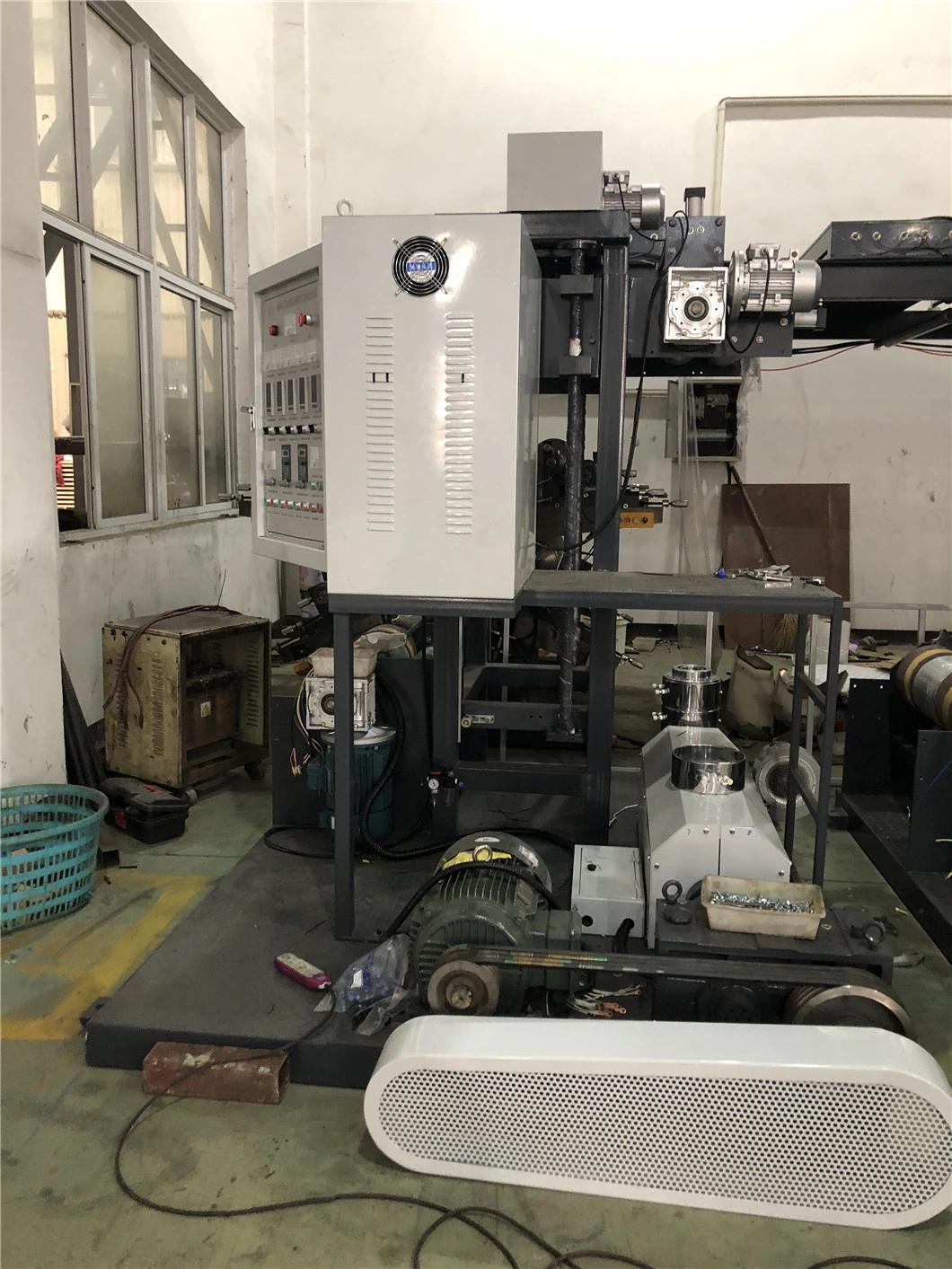

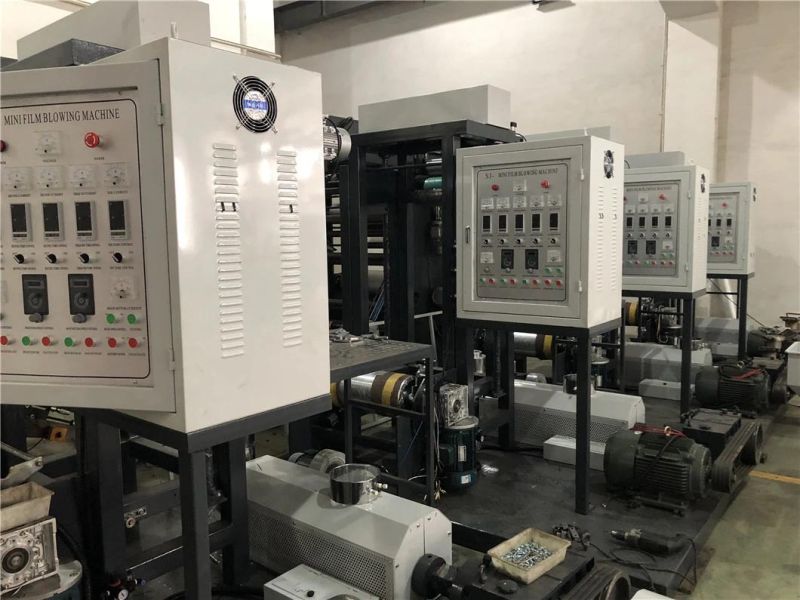

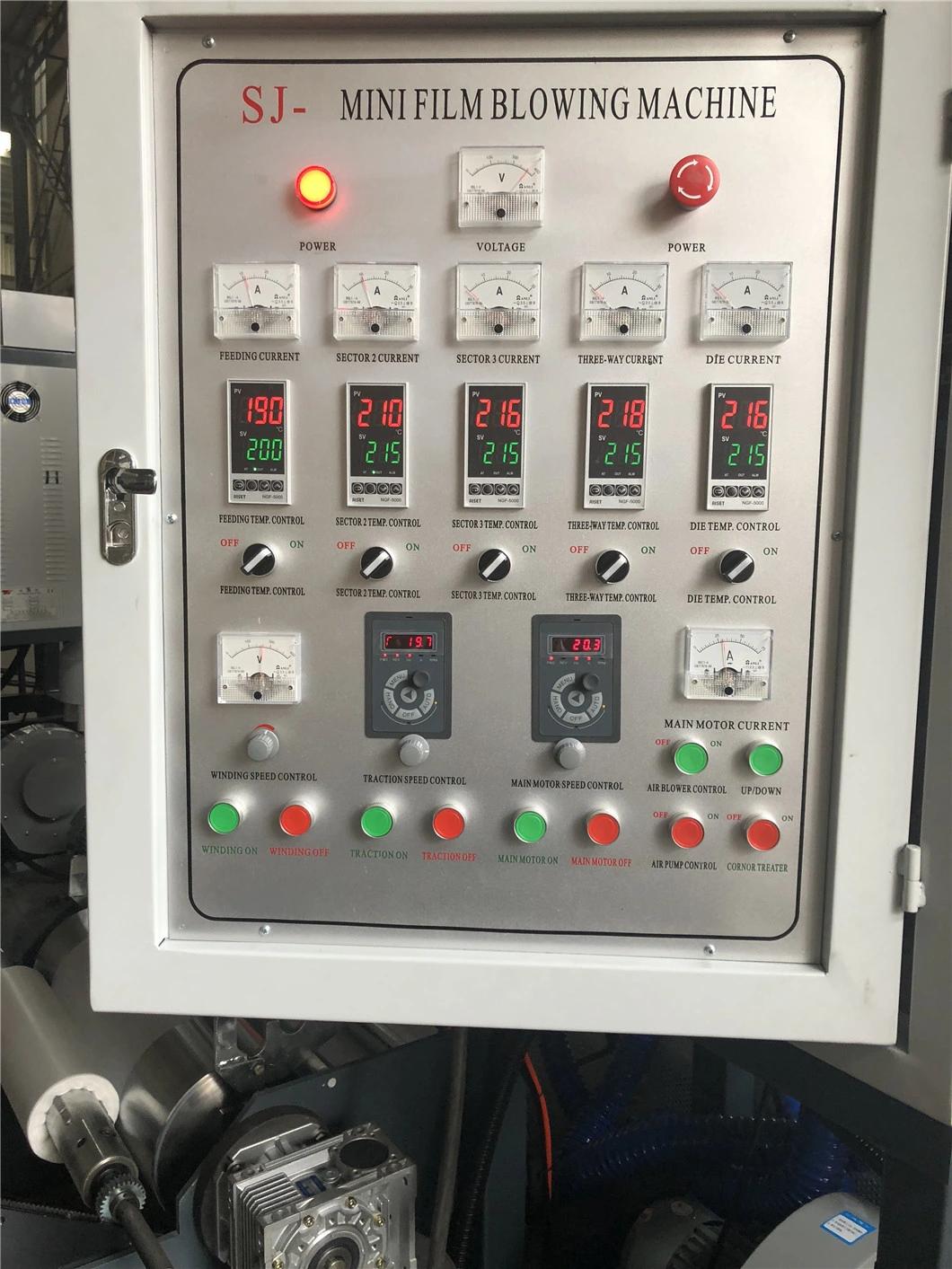

Mini Film Blowing Machine
Classic Hardware Co., LtdBase Info
Description
30-45kg/hr0.01-0.15 0.01-0.08
Type of die
Take-up unit
Winding unit
| Screw diameter(mm) | Φ50 |
| Screw L/D length | 28:1 |
| Screw material (adopt alloy steel nitrogen treater) | SACM-645/38 CRMOALA |
| Cylinder material | SACM-645/38 CRMOALA |
| Driving motor (kw) (3phase frequency inverter control) | 15 |
| Average power-consume(kw) | 8 |
| Die size (surface adopt chromium plate) | Air ring (made of aluminum) | Air blower(kw) | Center steady stick (LD) |
| Φ80 | 1 | 1.5 | 1 |
| Roller width(mm) | 700m |
| Effective width | 600mm |
| Take-up speed(m/min) | 10-100 |
| Take-up motor(kw) | 0.75 |
| Type | Winding motor (torque motor control) | Windingspeed (m/min) | Cover dimension (m) |
| Surface friction type | 1.5kw | 10-100 | 3.5×2.3×2 |
