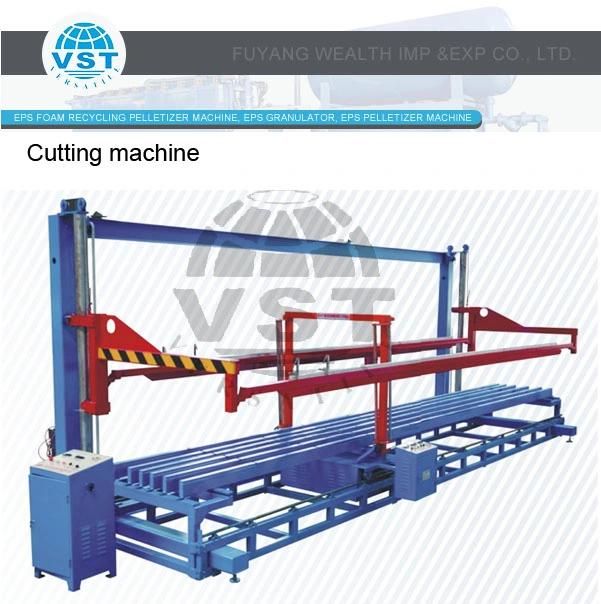

Product Description

Main Feture:

1.  The main frame of the machine is welded from square profile steel, with strong structure, high strength and no deformation;

2.  The machine can make horizontal cutting, vertical cutting and down cutting automatically, but wires setting is done by hand.

3.  Adopts 10KVA multi-tapped special transformer for adjustment with wide adjustable range and multiple votages.

4.Cutting speed range 0-4m/min




Item	PSC200C	PSC400C	PSC600C	PSC800C
Max blcok size(mm)	2000*1300*1300	4000*1300*1300	6000*1300*1300	8000*1300*1300
Power	22.3kw	22.3kw	22.3kw	22.3kw
Overall dimension(mm)	4400*2600*3250	6400*2600*3250	8400*2600*3250	10400*2600*3250
Weight	1300kg	2000kg	2800kg	3200kg
