Automatic Paper Sleeve Equipment Food Packaging Paper Sleeve
Jiaxing City Qunbang Hardware Co., Ltd.- Certification:CE, ISO9001
- Power Source:Gas
- Process:Thermal Processing
- Automatic Grade:Automatic
- Application:Ice Cream, Biscuit, Sugar Cone
- Customized:Customized
Base Info
- Appox Gas Consumption:LPG11-13kgs,Hour LNG17-19m3,Hour
- Drive Motor:2HP
- Air Blower:2HP
- Motorized Rolled System:320*240mm

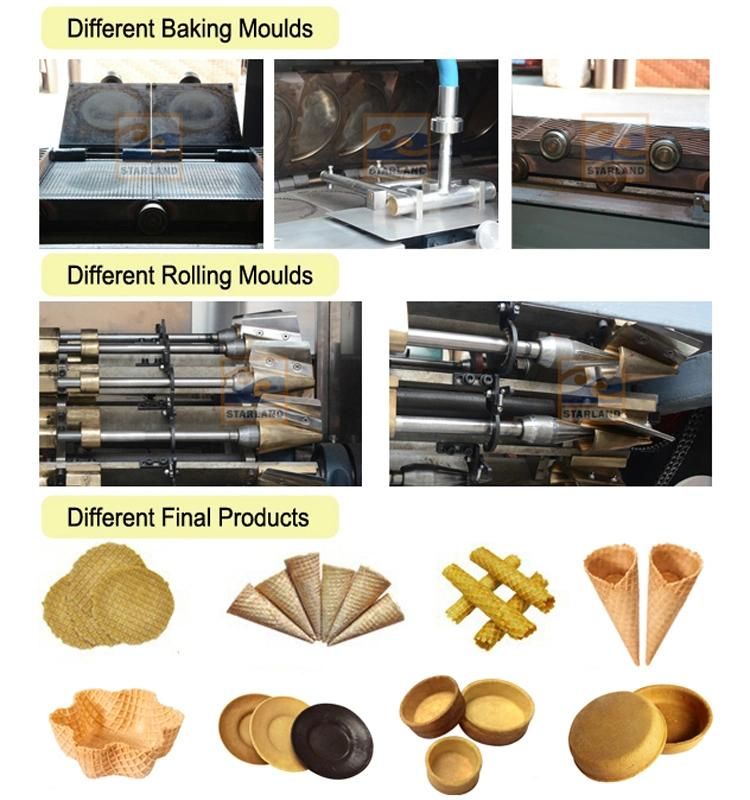

- Baking Plates:61
- Rollning Stations:24 Rolling Cores
- Transport Package:Stainless Steel
- Specification:L11.80*2.25*1.73 METER
- Trademark:STARLAND
- Origin:Guangzhou
- Production Capacity:6800-7200 PCS,Hour
Description
CBI-47A*/CBI-47X2A*CBI-71A*/CBI-71X2A*CBI-107A*/CBI-107X2A*Number of baking plates4771107Standard Cones/hour**420066009500Gas Consumption(kg)/hour5-69-1011-12Machine Dimension(mm)6700L*2400W*1800H9600L*2400W*1800H13900L*2400W*1800HMachine Weight(kg)450065009600Main Motor specification1.5hp;1.1kw2.0hp;1.5kw2.0hp;1.5kw
CBIII series and WBIII series
(Baking Plares Size:320mmX240mm;suitable for cones length over 125mm and waffle basket)
CBIII-39A*/CBIII-39X2A*CBIII-55A*/CBIII-55X2A*CBIII-61A*/CBIII-61X2A*Number of baking plates395561Standard Cones/hour**350055006000Gas Consumption(kg)/hour5-69-1010-11Machine Dimension(mm)7000L*2400W*1800H9500L*2400W*1800H10500L*2400W*1800HMachine Weight(kg)470065008500Main Motor specification1.5hp;1.1kw2.0hp;1.5kw2.0hp;1.5kw
CBIV series and WBIV series
(Baking Plares Size:260mm*240mm;suitable for cones length between 100mm to 120mm and waffle basket)
CBIV-45A*/CBIV-45X2A*CBIV-63A*/CBIV-63X2A*CBIV-97A*/CBIV-97X2A NEW*Number of baking plates456397Standard Cones/hour**400060009000Gas Consumption(kg)/hour5-69-1011-12Machine Dimension(mm)6800L*2400W*1800H9000L*2400W*1800HTo be confirmedMachine Weight(kg)4500650010000Main Motor specification1.5hp;1.1kw2.0hp;1.5kw2.0hp;1.5kw

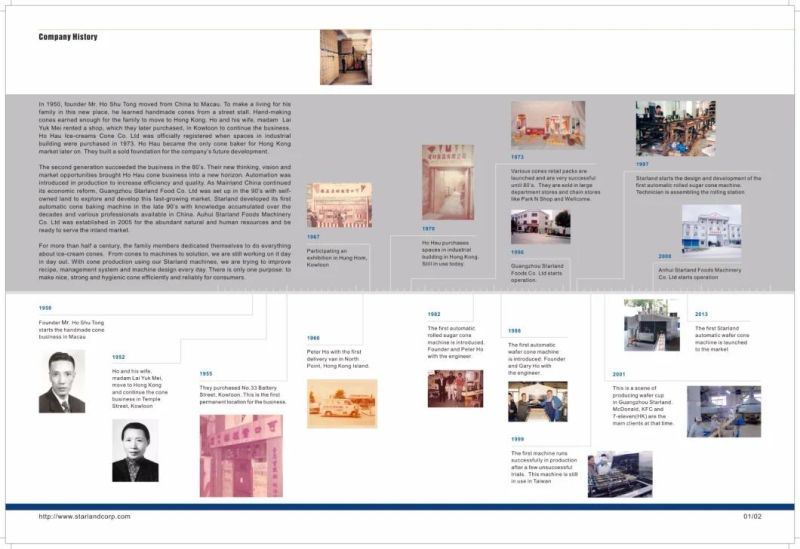

About US






CBIII series and WBIII series
(Baking Plares Size:320mmX240mm;suitable for cones length over 125mm and waffle basket)
CBIII-39A*/CBIII-39X2A*CBIII-55A*/CBIII-55X2A*CBIII-61A*/CBIII-61X2A*Number of baking plates395561Standard Cones/hour**350055006000Gas Consumption(kg)/hour5-69-1010-11Machine Dimension(mm)7000L*2400W*1800H9500L*2400W*1800H10500L*2400W*1800HMachine Weight(kg)470065008500Main Motor specification1.5hp;1.1kw2.0hp;1.5kw2.0hp;1.5kw
CBIV series and WBIV series
(Baking Plares Size:260mm*240mm;suitable for cones length between 100mm to 120mm and waffle basket)
CBIV-45A*/CBIV-45X2A*CBIV-63A*/CBIV-63X2A*CBIV-97A*/CBIV-97X2A NEW*Number of baking plates456397Standard Cones/hour**400060009000Gas Consumption(kg)/hour5-69-1011-12Machine Dimension(mm)6800L*2400W*1800H9000L*2400W*1800HTo be confirmedMachine Weight(kg)4500650010000Main Motor specification1.5hp;1.1kw2.0hp;1.5kw2.0hp;1.5kw
