Basic Info.

Model NO. FYX180 Drilling Way Rotary Type Crawler Model No Fyx180 Rock Hardness F6-20 Rotary Speed 45-65rpm Walk Speed 2.5km/H One Time Propelling Length 3000mm Work Pressure 1.7-2.5MPa Air Consumption 17-31m3/Min Rotary Torque 3200-4600n.M Diesel Power 55kw Weight 4500kgs Transport Package 20FT Container or LCL Specification 3800*1500*2200mm Trademark JEAO Origin China HS Code 8430412100 Production Capacity 300sets Per Months

Product Description

180m depth Crawler DTH Water Well Drilling Rig for Sale

1.Application
Water well drilling,Geothermal well drilling,Agricultural irrigation wells and other well drilling.

2.Advantage:
1).The rig can create jobs in different formations, hole depth 150m.
2).The rig using a new type of hydraulic technology, supporting large torque hydraulic
motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power
for the hydraulic system, the two stage air filter and air compressor air inlet design,
prolong the service life of diesel engine.
3).Convenient pump group design unique repair, reduce repair cost. Hydraulic central control console, convenient operation.
4).The rig adopts a special crawler chassis of engineering machinery, strong cross-country performance.
5).Positioner combined, can be adjusted according to the drill pipe and the impact of different types of replacing the positioning disk, to ensure the positioning accuracy, reliable centering.

Specification for Crawler DTH Water Well Drilling Rig for Sale :

Model No.	FYX180	FY200	FY300	FY400	FY600	FY800
Drilling diameter(mm)	140-254	140-305	140-325	140-350	140-350	140-400
Drilling depth(m)	180	200	300	400	600	700
One time propelling length(mm)	3000	3000	6600	6600	6600	6600
Diesel power(Kw)	55	65	84	92	118	140
Walking speed(km/h)	2.5	2.5	2.5	2.5	2.5	2.5
Ground Distance (mm)	250	250	250	250	250	250
Climbing ability (Max)	30	30	30	30	30	30
Rotary speed(rpm)	45-65	45-70	55-115	45-115	45-115	55-120
Rotary torque(N.m)	3200-4600	3500-4800	6200-8500	6500-9000	8500-11000	8850-13150
Air consumption (m³/min)	17-31	17-30	17-35	17-35	17-42	17-35
Working pressure(Mpa)	1.7-2.5	1.7-3.0	1.7-3.3	1.7-3.5	1.7-3.5	1.7-3.5
Size(mm)	3800*1550*2350	4000*1750*2450	5900*2000*2850	5900*2100*2850	6000*2200*2850	6100*2200*2900
Total weight(Kgs)	4500	5800	9000	10000	12000	13000

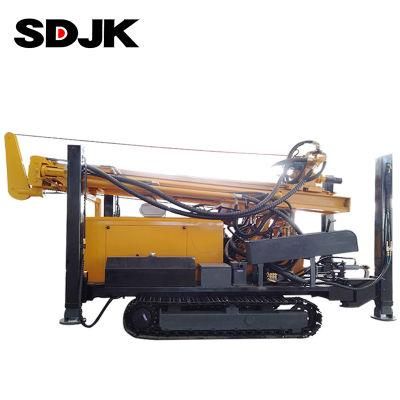

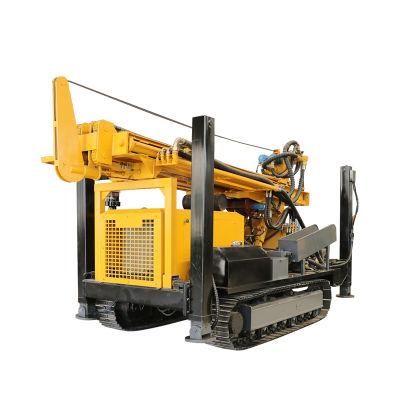

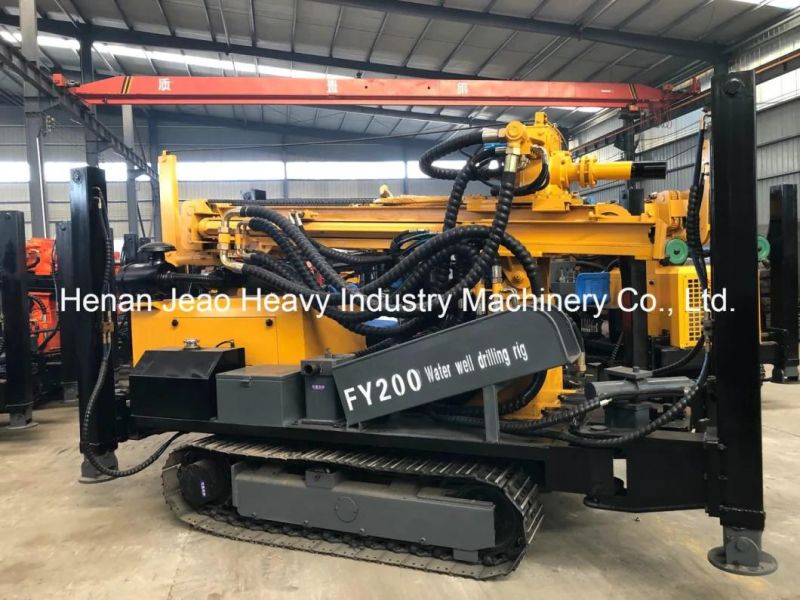

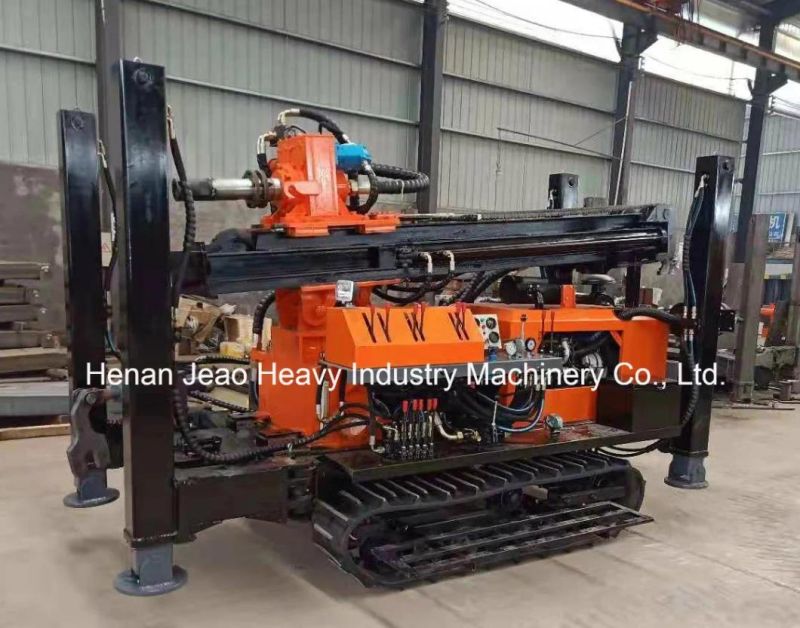

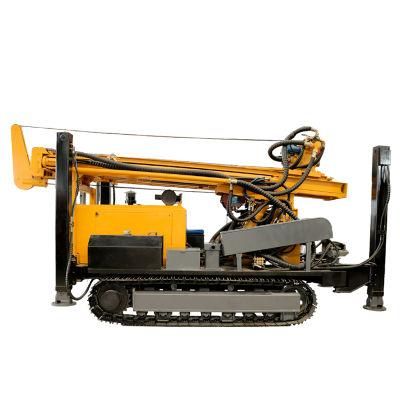

Pictures for DTH Crawler Water Well Drilling Rig for Hard Rock:
