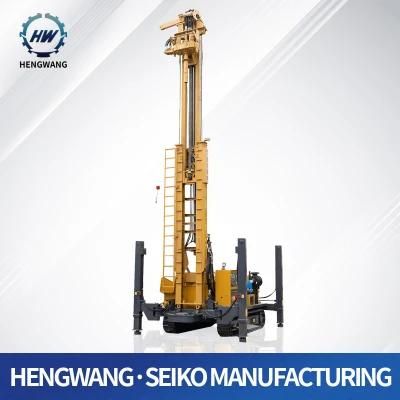

Pneumatic Rotary 300 Meter DTH Water Well Drilling Rig Machine Price

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

Model

HQZ-320L

Total Weight(T)

7.5/9

Dimensions(mm)

4200*1900*2600

Drilling Diameter(mm)

140-350

Drilling Depth(m)

320

One-time Advance Length of the Drill(mm)

3000/6000

Walking Speed(Km/h)

2.5

Climbing Ability(max)

30

Min. Ground Clearance(mm)

230

Working Air pressure(Mpa)

1.7-3.3

Air Consumption(m³/min)

23

Main Power(kw)

85/Yuchai

Rotation(rpm)

55-115

Rotary Torque(Nm)

8500-10000

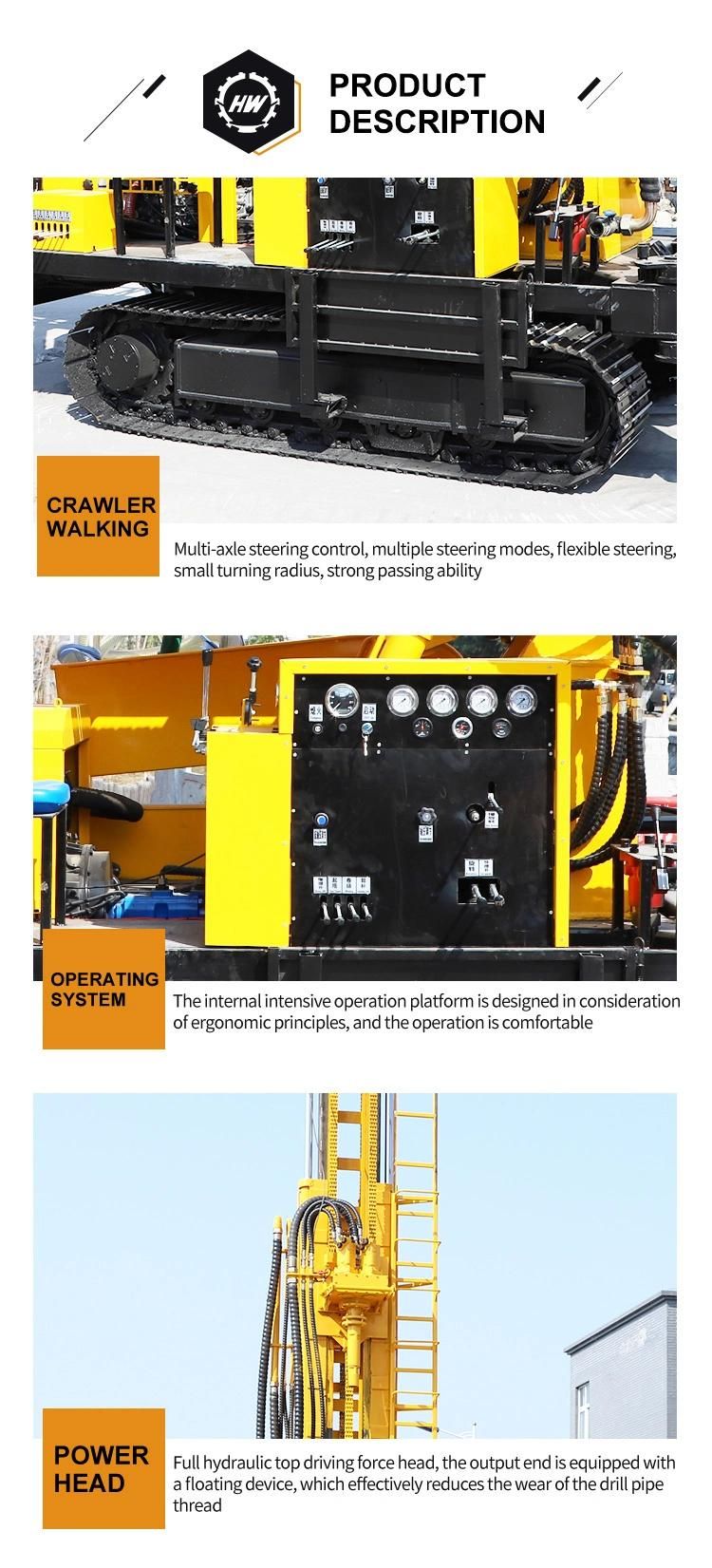

Detail Photos
Pneumatic Rotary 300 Meter DTH Water Well Drilling Rig Machine Price

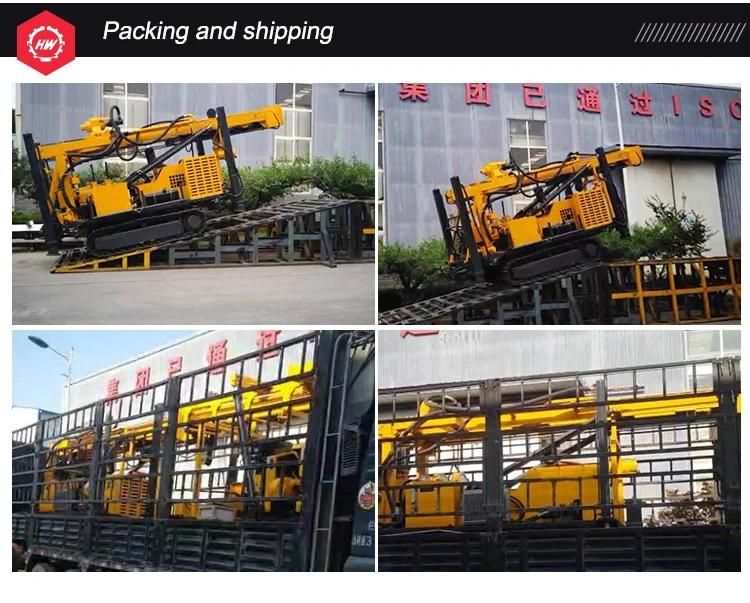

Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
