High Speed HDPE PE Plastic Blown Film Extruder Price

Nanyang Yukang Photonics Co., Ltd.

Base Info

Description

Max. film layflat width:600mm  -800MM (When open is 1200-1600MM)Screw diamter:45MM/50MM/55MMMain motor: 7.5KW /11KW / 15KW/18.5KW Raw Material PE: HDPE LDPE LLDPE DieRotary die or Fixed die Option partcorona, auto loader



Characteristic

  • main motor and take-up motor are controlled by inverter  . Save 30% energy
  • with lifting traction.
  • with 2nd traction

  • by pneumatic cylinder system to adjust the gap of take-up rubber roller and take up steel roller
  • equipped with A-FORM wooden board to make the gusset

  • material of screw and barrel: 38CrMoAlA Polished with Nitrided Treatment

hardness of heat treatment: screw HV≥740, barrel HV≥900 depth of hardening:0.6-0.7mm
brittleness grade: ≤2 grade

  • Gear box: Surface heat quenching and tempering/auto. Oil lubricated

  • Die material: steel 45# Mu surface treatment of flow channel: hard chrome- plating

  • Screw , 3-joint, die head part heating zone,  ues Digital display temperature controller

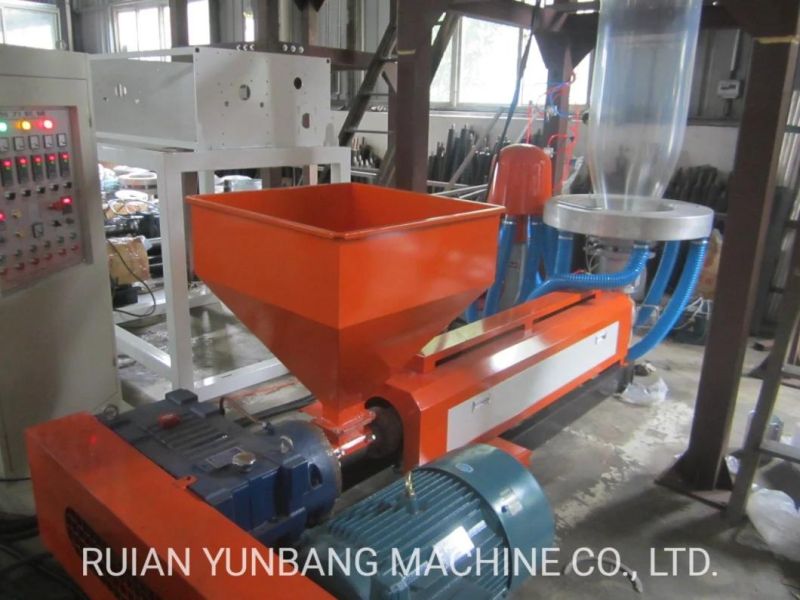

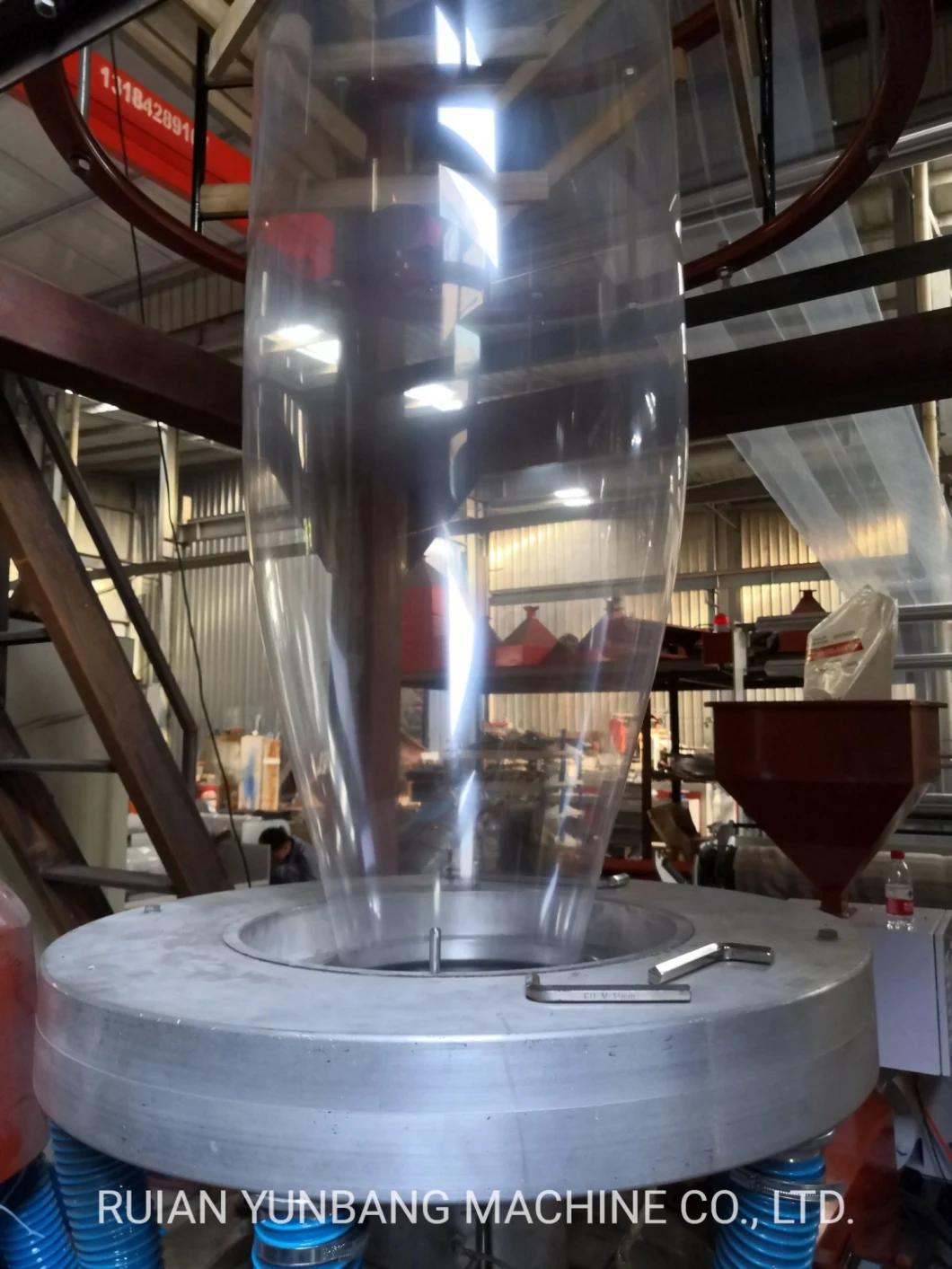

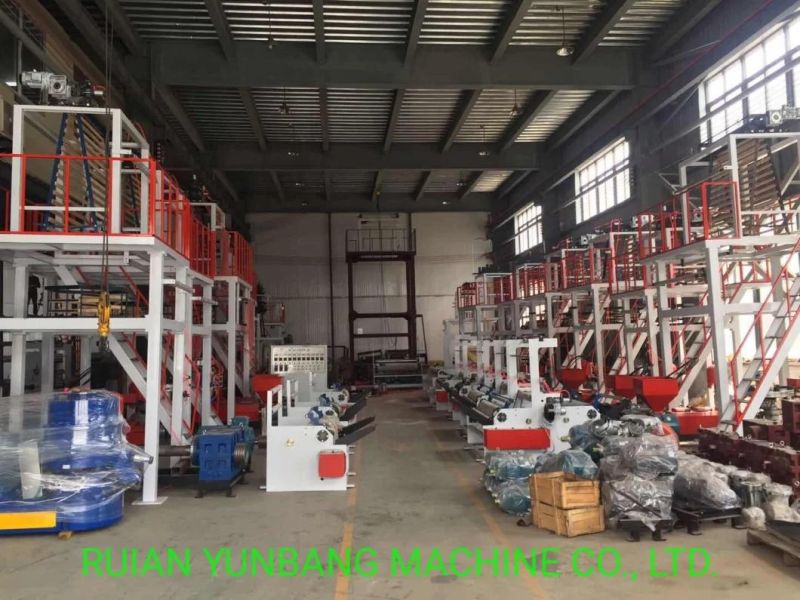

Machine Picture:
High Speed HDPE PE Plastic Blown Film Extruder PriceHigh Speed HDPE PE Plastic Blown Film Extruder PriceHigh Speed HDPE PE Plastic Blown Film Extruder PriceHigh Speed HDPE PE Plastic Blown Film Extruder Price
