Basic Info.

Model NO. XD600 Knife Roll Two Shafts Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, UL, SGS Shredding Room 600*500mm Rotor Diameter 280mm Motor Brand Simo/Wannan/Boneng/Siemens/Weg Blade Materials SKD11, H13 Gear Box Guomao or Boneng Bearing Heavy Duty Bearing Voltage According to Customer Output 400-800kg/Hr Rotating Speed 16-21rpm Output Size 30-160mm Weight 2400kg Delivery Time 30-40 Working Days Transport Package Wooden Case Specification XD600 Trademark FAMOUS Origin China HS Code 84778000 Production Capacity 5sets/Month

Product Description

Double Shaft Shredder Machine
Product Description:
The XD series double shafts shredders have been designed for a wide way of applications and industries, such as: shredding WEEE waste, scrap tires, packaging barrel, pallets, etc. Depending on input materials and the following process the shredded material can be used directly or go into the next step of size reduction. XD's serious double shaft shredder has two rotors built into the machine that rotate at low speeds, high torque and low noise. Adopt with microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming.

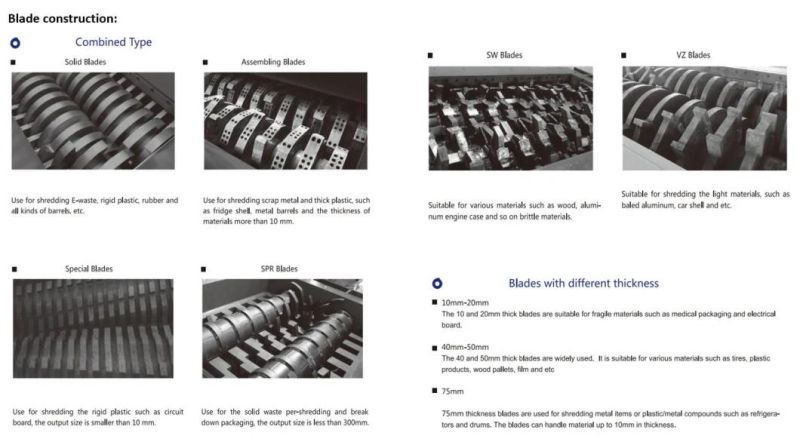

 Based on different materials, we design the special blades with different hooks, normally, we have single hooks blade, double hooks blades, four hooks blades and multi-hooks blades. Also the thickness of blades for different materials are different, the range is 10mm-80mm. We design single or multi-hooks of blades with different thickness for different materials.
 Such as:
The 10 and 20mm thick blades are suitable for fragile materials such as medical packaging and electrical board.
 The 40 and 50mm thick blades are widely used for various materials such as tires, plastic products, wood pallets, film and etc.
 The 80mm thickness blades are used for shredding metal items or plastic and metal compounds such as refrigerator and drums, the blades can handle material up to 10mm in thickness.
Suitable Products:

• PLASTICS
• RUBBER
• WOOD
• BIOMASS
• PAPER
• ALTERNATIVE FUELS (RDF/SRF)
• DOMESTIC & COMMERCIAL WASTE

Product Parameters:

Model	Motor (kw)	Diameter of rotor (mm)	Speed (rpm)	Rotating Knife (pcs)	Fixed Knife (pcs)	Hooks	Weight (kg)
XD600	7.5+7.5	Φ280	16	20	20	5-13	2400
XD800	11+11	Φ280	16	16	16	5-13	3700
XD1000	18.5+18.5	Φ400	16	20	20	5-21	4100
XD1000	22+22	Φ420	16	20	20	5-21	4500
XD1200	37+37	Φ440	16	24	24	5-21	6500
XD1500	55+55	Φ500	16	30	30	5-21	8700
XD2000	90+90	Φ750	16	40	40	5-21	9200

Note: The above technical parameters is only for your consideration, real technical parameters of shredder machine will be different based on shredding different material requirements, please call us for more information before purchasing.

Double Shaft Shredder Machine Work Process:

Our Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request. We will tell you the tracking number after delivery.
Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. FAQ

Q: Are you a factory or a  trading company?

A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 30 years, our factory is in Zhangjiagang city which is near shanghai and wuxi.

Q: Do you have any certifications?

A: Yes, we have ISO, CE, SGS.

Q: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: When can I get my machine after I paid?

A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: How to install my machines when it arrives? how much the cost?

A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have
problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory.
Customer pay for visa, round air tickets, accommodation and USD100/day/person.

Q:How long time for installation?

A:According your machines order, we will send one or two engineers to your plant, it will take about 15 days to 30 days.

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price.
