Fiber Laser Cutting and Engraving Machine Specially for Stainless Steel
Zhuhai Hanbo Trading Co., Ltd.- Application:Automotive Industry, Advertising Industry, Iron, Stainless Steel, Aluminum, Gold, etc.
- Cooling System:Water Cooling
- Technical Class:Pulse Laser
- Applicable Material:Metal
- Structure Type:Gantry Type
- Laser Classification:Free Electron Laser
Base Info
- Model NO.:HSGQ-3050
- Laser Technology:Laser Vapor Cutting
- Working Area:300X500mm
- Cutting Thickness:0.5-12mm Carbon Steel
- Maximum Output:500W,800W,1000W
- Laser Medium:Yvo4
- Wave Length:1080mm
- Min Line Width:0.15mm
- Power Configuration:380V,50Hz,100A
- Cooling:Water Cooling
- Max Cutting Speed:180m,Min
- Transport Package:Wooden Case
- Trademark:Holy Laser
- Origin:China
- HS Code:8456100090
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. HSGQ-3050 Laser Technology Laser Vapor Cutting Working Area 300X500mm Cutting Thickness 0.5-12mm Carbon Steel Maximum Output 500W/800W/1000W Laser Medium Yvo4 Wave Length 1080mm Min Line Width 0.15mm Power Configuration 380V/50Hz/100A Cooling Water Cooling Max Cutting Speed 180m/Min Transport Package Wooden Case Trademark Holy Laser Origin China HS Code 8456100090 Production Capacity 50 Sets/MonthProduct Description

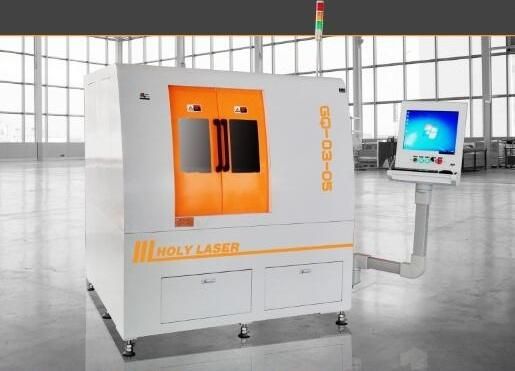

HSQ-3050-Z-500W/800W/1000W
Features of Holy laser's Fiber Laser Cutting Machine:
HSGQ-3050-Z is a series of enclosed and high-precision fiber laser cutting machine designed by Holy Laser specially for ornaments, art and gift manufacturers. The moving structure uses the most advanced and the best linear motor in the laser cutting industry. The cooperation between the high precision and high speed motor cooperate and the follow-up cutting head will make sure the machine will running with a high precision in a high speed. Benefiting from its brilliant ability of cutting, the machine has been widely used in many cutting and marking ares that need high-precision manufacturing. For example the manufacturing of hardware, micro-electronics, ornaments. This machine is also good at cutting a variety of metal, like carbon steel, silicon steel, stainless steel, titanium alloy, aluminum, galvanized sheet, pickle sheet, SGCD etc in high speed. Integrating the most advanced technologies around the world the machine has the advantages of low cost, high quality and high efficiency.

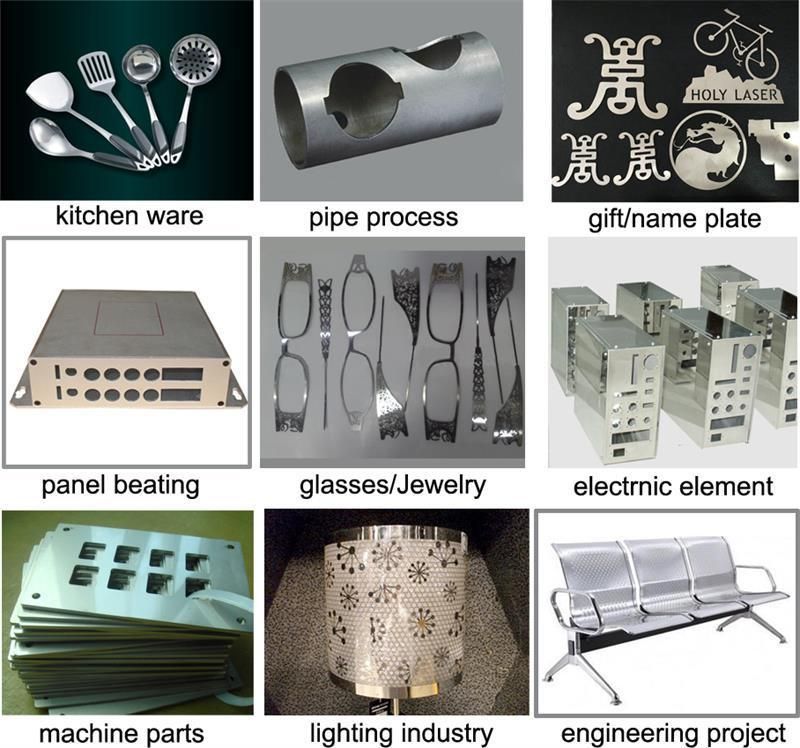

Application Industry of Our Metal Laser Cutting Machine:
It is suitable to be used in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances

Application Material:
It is Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on
Technical Date:
model | HAGQ-3050-Z-500W | HAGQ-3050-Z-800W | HAGQ-3050-Z-1000W |
laser power | 500W | 800W | 800W |
laser wavelength | 1080nm | 1080nm | 1080nm |
laser medium | YVO4 | YVO4 | YVO4 |
beam quality | <0.373mrad | <0.373mrad | <0.373mrad |
min line width | ≤0.15mm | ≤0.15mm | ≤0.15mm |
max idle speed | 180m/min | 180m/min | 180m/min |
X axle stroke | 300mm | 300mm | 300mm |
Y axle stroke | 500mm | 500mm | 500mm |
Z axle stroke | 100mm | 100mm | 100mm |
processing surface (X*Y) | 300x500mm | 300x500mm | 300x500mm |
positioning accuracy of X,Y and Z | ≤±0.03mm/m | ≤±0.03mm/m | ≤±0.03mm/m |
Max cutting thickness (carbon steel) | 0.5-5mm | 0.5-6mm | 0.5-12mm |
Max cutting thickness (stainless steel) | 0.5-3mm | 0.5-4mm | 0.5-6mm |

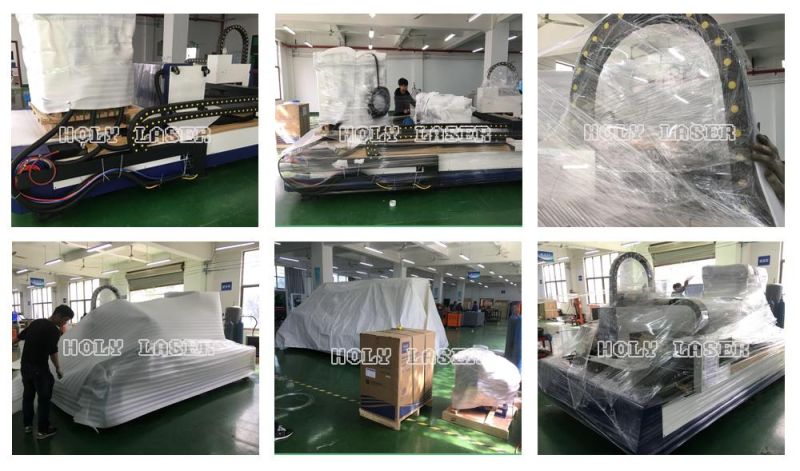

Packing and delivery:
Packing: Packed in wooden case with waterproof felt inside, keeping machine safe
Delivery: 3-5 days upon receipt of your payment

After-sale service:
• One year warranty for product quality
• Free training for machines installation and operation
• Free design of machine as you required
• Lifelong maintenance and spare parts supply
• Free marking samples as you required

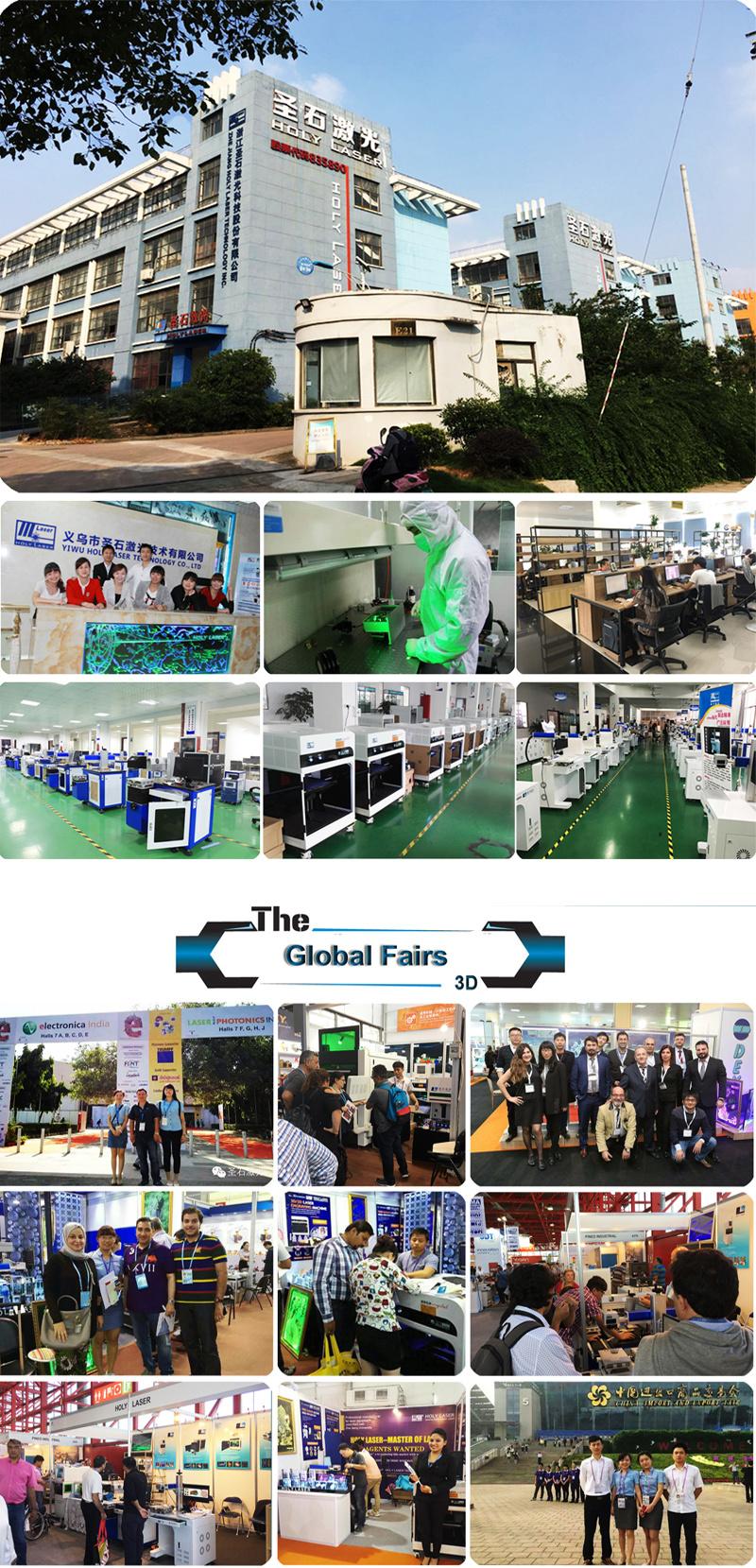

Factory Profile:
• We are the manufacturer with 13 years' history on researching and producing all kinds of Lasers
• Cooperated with the Zhejiang University and update new technology in-time
• Key enterprise supported by the government of Yiwu City


For more detailed information, please feel to contact with me or check our website: http://holylaser.en.made-in-china.com
