Basic Info.

Model NO. ZH-70SE Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Speciality High Speed Motor Germany-Siemens Inverter Germany-Siemens Bearing Japan-NSK Control System Sychronization Electric Element Siemens and Schneider Maintance 1 Year Transport Package Wood Package Specification BV Trademark ZH Origin Dongguan, China HS Code 8477900000

Product Description

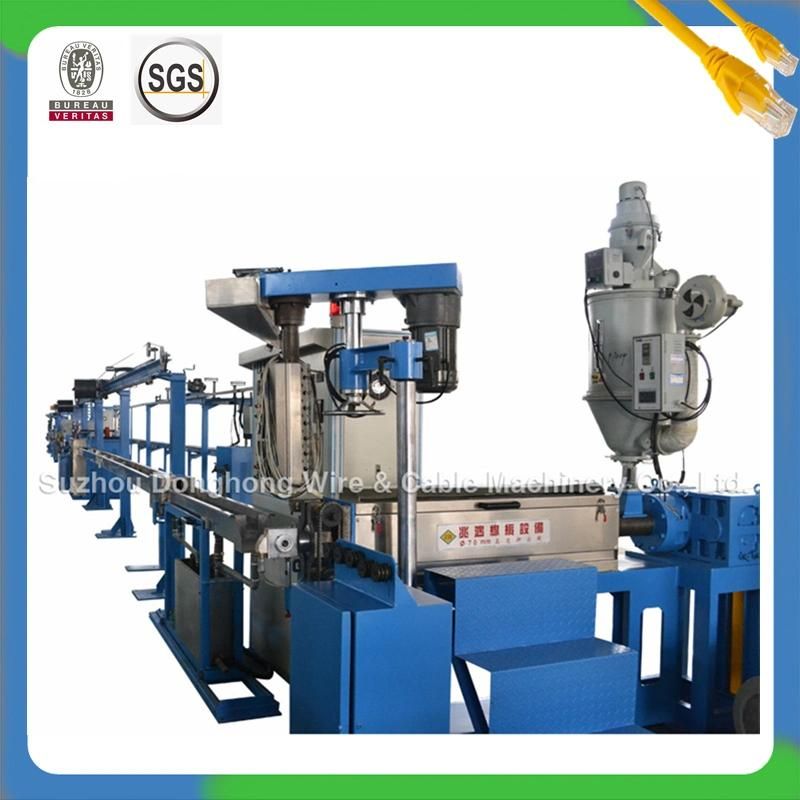

High-end Cable Sheathing Line Machine/Cable Making Machine for Sheath of CAT5 CAT6 CAT7

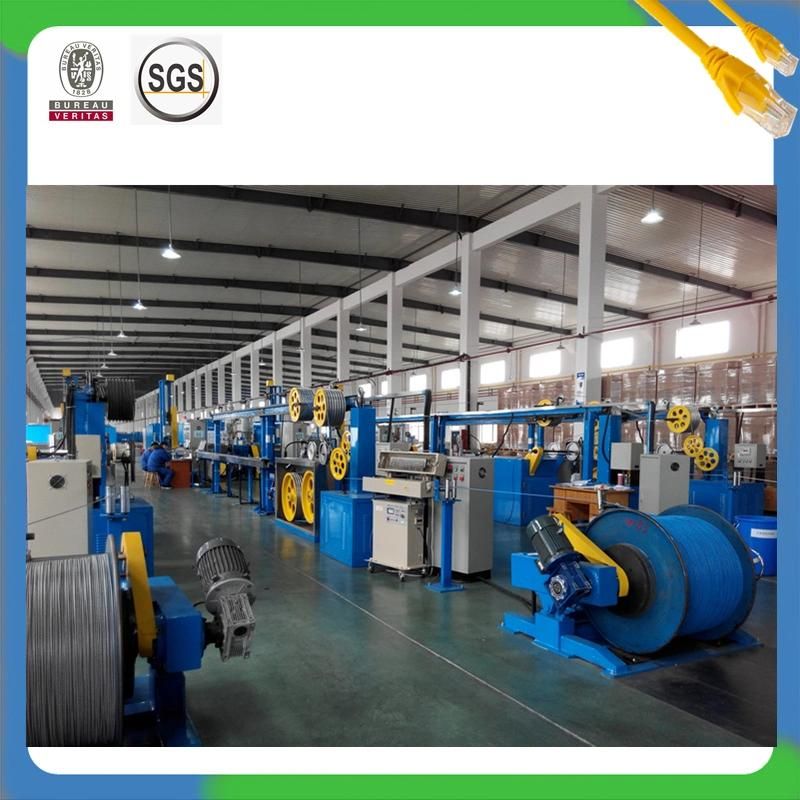

Application of Cable Extrusion Line
It is applicable for electronic wire, power wire, data wire, control wire and high frequency sheath (Jacket) extruding.


Cable Extrusion Line Feature

1. Optimization design of the new type screw, with large outputs, plasticizing completely, rapid change color, etc;
2. Extruding finish plastic's concentricity could be reach to more than 93%, outer diameter error range is ±0.01;
3. Using SCR power controller or solid-state relay, equip with RKC temperature controlled meter, the temperature difference of machine body is ±1ºC;
4. Design with human interface operating system, wire diameter asthmatically tracking feedback, it is easily for operating, more efficiency.

Specification


Pay-off type	Dual shaft type
Pay-off bobbin	PN300-400
Core wire specification	1-8mm
L/D ratio	26:1
Extrusion output	140kg/h
Main motor power	30/50HP
Finished wire diameter	2-12mm
Temperature control	7 section
Cooling device	Single/ Double layer U type (8M)
Hauling power	5HP
Accumulator type	horizontal
Accumulating length	200
Outlet wire speed	Max 400m/min
Take-up type	Dual shaft / shaft
Take-up bobbin	PN400-630
Take-up power	3HP
