Rig Model

Power

Rated Power

HW425

YuchaiYC4DK-80

58 kW

HW425-1

YuchaiYC4DK-100

73.5 kW

HW425G

YuchaiYC4DK-125

90 KW

Hole Depth

30 m

Drill Pipe Sizes

76 X 3,000 mm

Hole Dia

110 -138 mm

Hammer

4"/5"

Rotation Torque(Max.)

3,200 N.m

Rotation Speed

0 -100 rpm

Working Pressure

0.7-2.5Mpa

Length of Feed Beam

5,645 mm

Feed Travel Length

3,660 mm

Feed Extension

960 mm

Feed Speed

26 m/min

Feed Force

20 kN

Pull Up Force

45 kN

Feed Type

Chain & Cylinder

Tramming Speed (Max.)

2.5 km/h

Gradient

25°

Ground Clearance

280 mm

Total Weight

6,230 kg/6,500kg

Transportation Dimensions

7,000 X 2,250 X 2,700mm

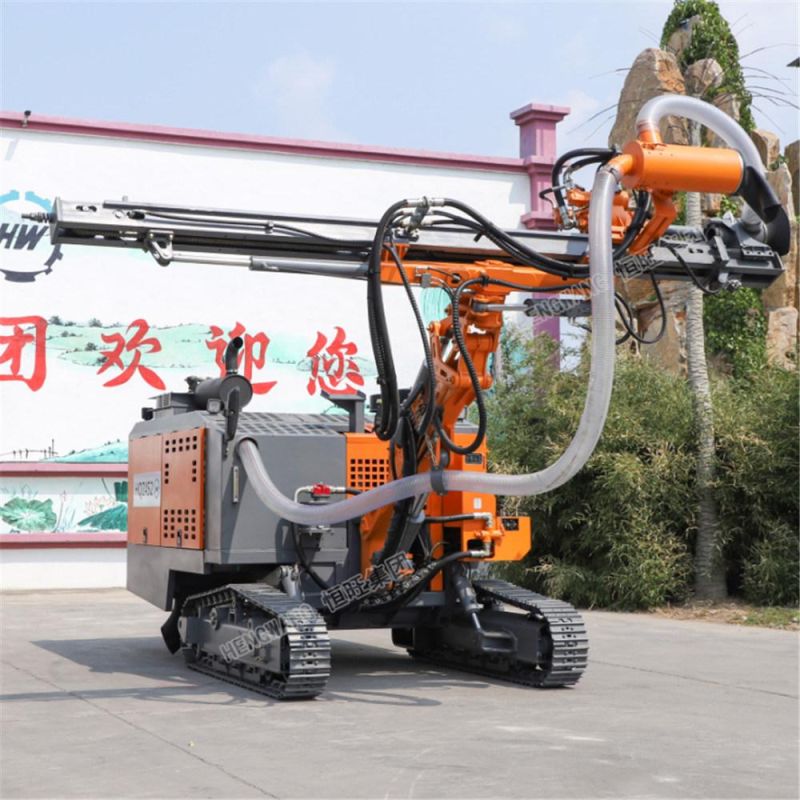

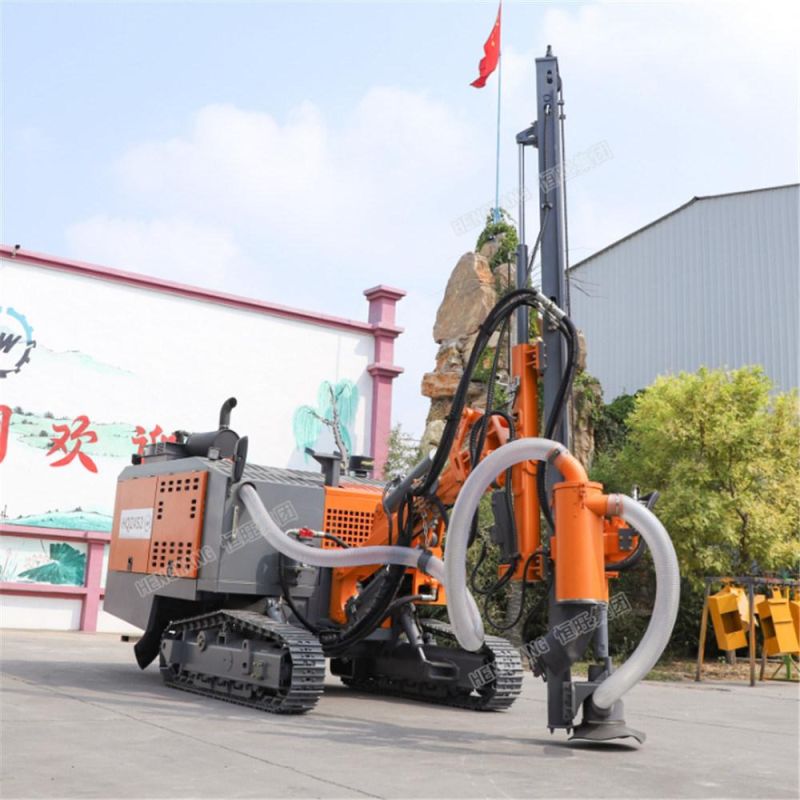

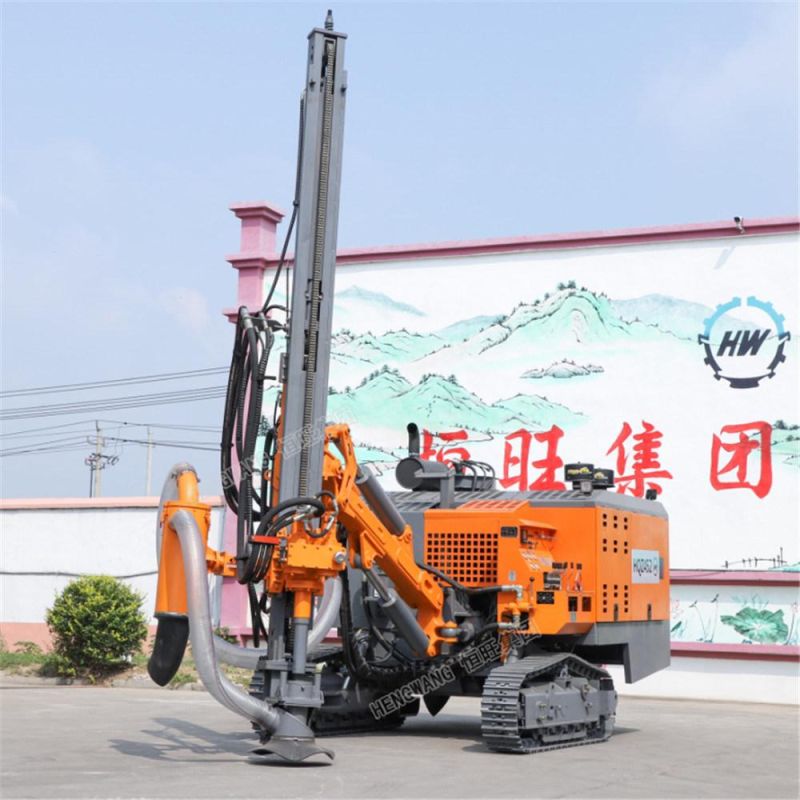

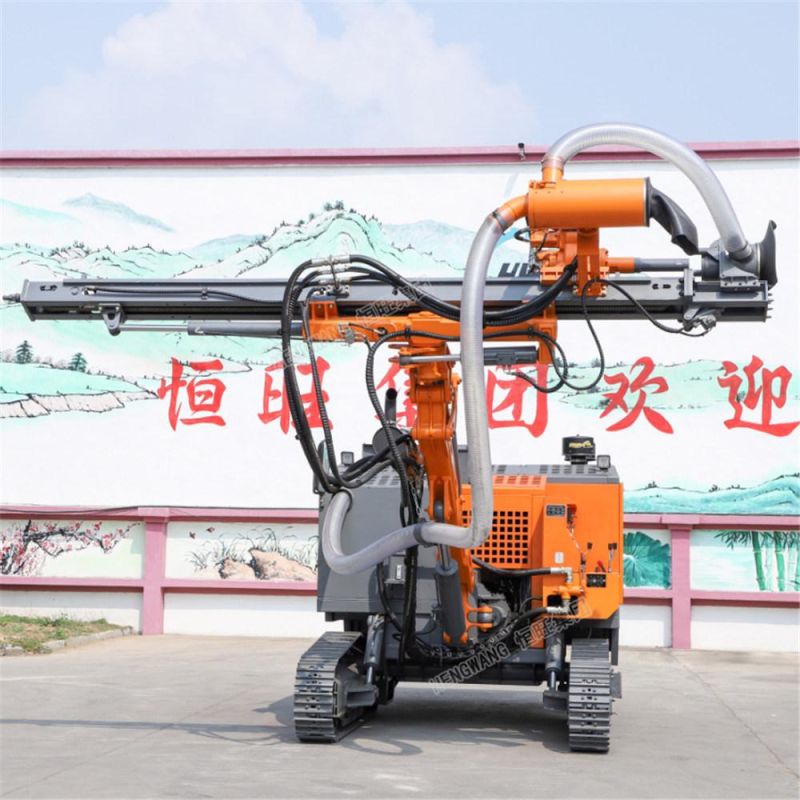

Picture:



Contact:Cici Yang





Jining Hengwang Mining Machinery Co., Ltd.
