• Model NO.：SZ
• Material：PTFE,NBR,FKM
• Delivery Date：30days
• OEM/ODM：Yes
• Transport Package：Plastic Bag,Box, Then Carton
• Specification：Custom
• Trademark：Morgan
• Origin：China
• HS Code：3926909090
• Production Capacity：1000000PCS,Month

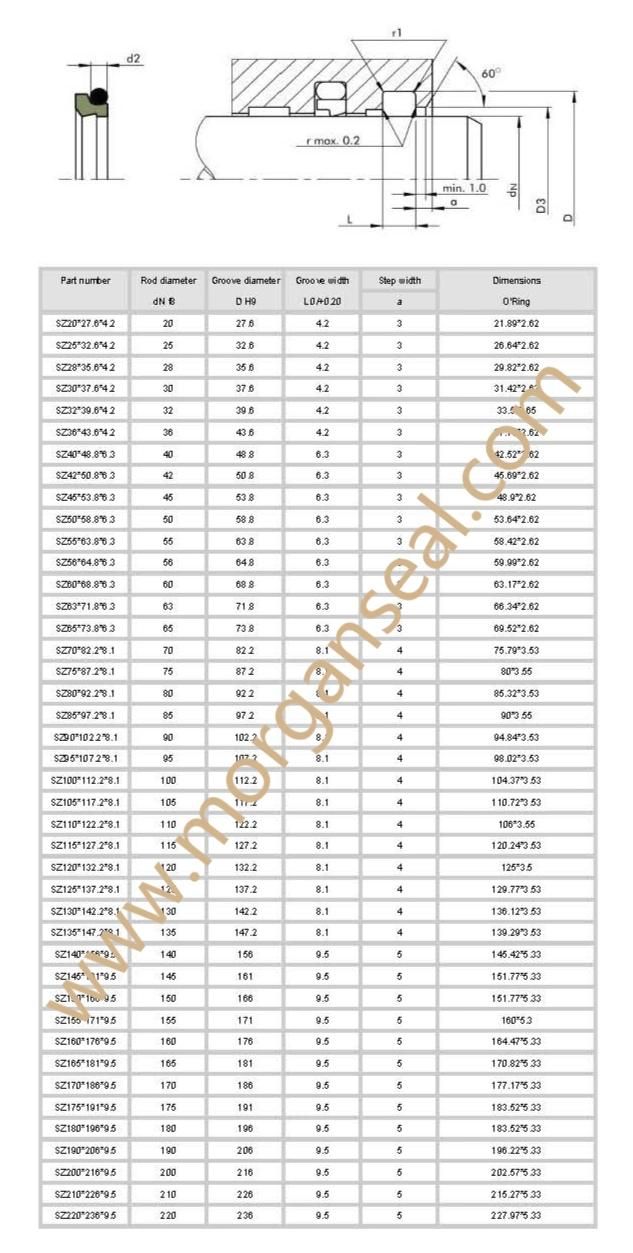

Rod diameterGroove diameterGroove widthBore diameterStep widthO-ring cross-sectiondN f8D H9L+0.2D3 H11a mind219.0-39.9dN+7.64.2d+1.53.02.6240.0-69.9dN+8.86.3d+1.53.02.6270.0-139.9dN+12.28.1d+2.04.03.53140.0-399.9dN+16.09.5d+2.55.05.33400.0-649.9dN+24.014.0d+2.58.07.00650-999.9dN+27.316.0d+2.510.08.40>1000.0dN+27.316.0d+2.510.08.40

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.Chemical resistanceAliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)Compatibility issueFuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agentsTemperature range-30°C / +100°C in dynamic applications (+120°C in static applications)Chemical resistanceMineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils.
Fire-resistant liquids (HFD)
Silicone oils and greases
Mineral and vegetable oils and greases
Aliphatic hydrocarbons (propane, butane, petroleum)
Aromatic hydrocarbons (benzene, toluene)
Chlorinated hydrocarbons (trichlorethylene)
Fuel (including high alcohol content)
Atmospheric and ozone agentsCompatibility issueGlycol-based brake fluids
Ammonia gas
Organic acids with a low molecular weight (formic and acetic acids)Temperature range-20°C/+200°C


About MorganEstablished by Guangzhou Mechanical Engineering Research Institute Co., Ltd. (51% share, hereinafter to be referred as GMERI) and Morgan Construction Co., Worcester, MA, U. S. A. (49%, hereinafter to be referred as Morgan, Worcester) in 2006, Guangzhou Morgan seals Company Ltd. Is a professional manufacturer for sealing products. Combined the rich seals research and production experience of GMERI with the advanced technology and administration of Morgan, Worcester, the joint venture is renowned for its modern production lines, persisting research & development, strict quality control, quality sales and after-sales service. Now she has gained a good name from her customer all over the world, such as Siemens Primetals, Baosteel, SMS siemag and so on.
Morgan Seals Research and Development ability is based on her parent firm who has won awards as scientific research achievements for more than 1000 projects and over 200 of them won scientific and technological progress prizes of municipal, provincial, ministerial and national levels. At the same time, it also has one National Certified Laboratory, one National Engineering Research Centers and three Industry Level Inspection Centers.
