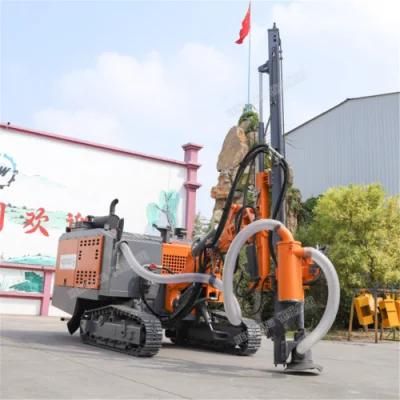

200m Cheap Price Rotary Water Well Drilling Rig
Zhejiang Huawei Machinery Co., Ltd.Base Info
Description
The Main Parameters Model JK-DR200X Weight 4.7T Bore diameter 140-254mm Drilling depth 200m Stroke 3.3m Travelling speed 2.5km/h Gradeability 30% Power 65KW Rated pressure 1.7-2.5mpa Air consumption 17-31m³/min Drill rod diameter Φ76, Φ89 Drill rod length 1.5m 2.0m 3.0m Elevating capacity 10T Swing speed 45-65rpm Swing torque 3200-4600N.M Dimensions 4000*1700*2200mm
