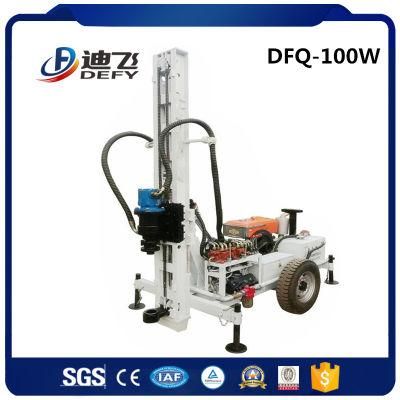

200m Used Mini Water Well Rotary Drilling Rig
Bestsub Technologies Co., LimitedBase Info
Description
Hydraulic
Characteristics
1.Power Source: Diesel engine or electrical motor for your choices. Diesel engine(with electricity start) can be used at places where don`t have electricity, it is very convenient.22HP diesel engine, capable enough.
2.Mud Pump: BW-160 mud pump is very powerful to wash the wells and
cool drill bit. favorable effect.
3.Hoist: working with drill tower to lift the drill tools.
4.Transmission Case: Changing the rotary speed to meet different stratum.
5.Vertical Shaft Case: Control drilling tools to drill wells. Chuck can hold and release drill rods perfectly and tightly, giving powerful propulsion force for smooth and stable working.
6.Frame: Drill Tower:Integrative drill tower, hydraulic controlling. No need to erect tower manually before drilling, greatly improving the efficiency.
Support legs: Four hydraulic support legs, will support it during drilling no need to take out wheels, increasing the working stability.
Moving Part: Drilling Rig can be mounted on wheel-trailer, crawler or truck. Is easy to move.
7.Working with different drill tools can drill all kinds of stratum,such as sand, mud, soil, gravel, weathering rocks and hard rocks so on.
Three wing bit: drill for open hole, soil, sand, and small gravel layers.
Alloy bit: for soil, sand, gravel, etc.
Diamond bit: for rock and hard rock ground
8.A light is installed on the drilling rig,providing the construction lighting at night.

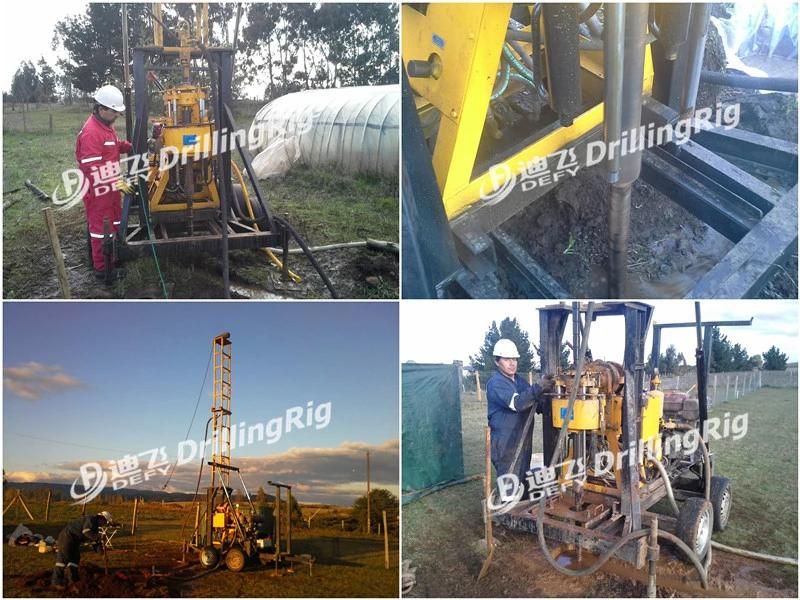

Working Site:
Company Information:
After-Sales Service
1. One year quality guarantee for main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.
Contact Me
How about our XY-200F water well hydraulic rotary drilling rig in rocks,would you like to have one. If you want to know further information,please let me know. our engineers and i will help you know the drilling rig better.Hope we can cooperate with you.Best wishes.
