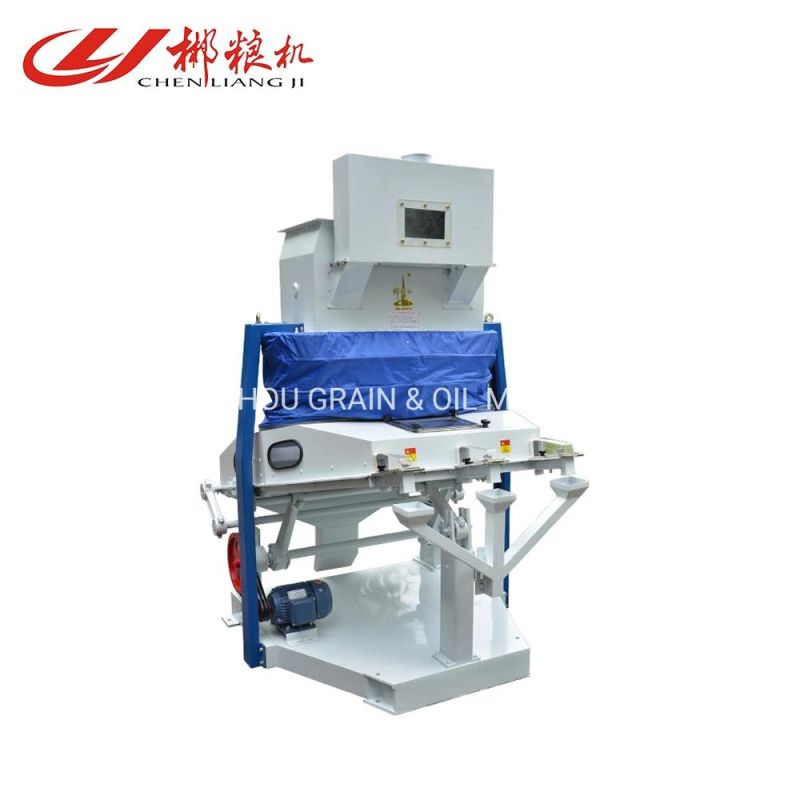

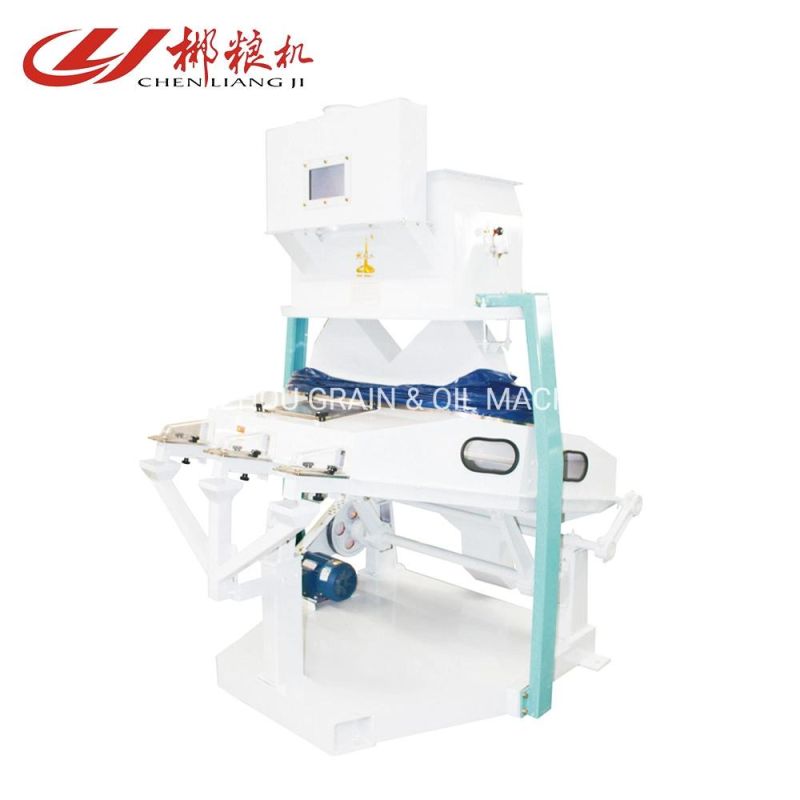

Clj Hot Sale Paddy Suction Destoner Rice Destoner Rice Mill Machine Rice Processing ...
Guangdong Decent Industrial Technology Co., Ltd.- Type：Rice Mill
- Application：All
- Voltage：380V
- Appearance：Vertical
- Condition：New
- Customized：Customized
Base Info
- Model NO.：TQSX168
- Capacity：10-12 T,H
- Air Volume：7500-7800m3 ,H
- Power：1.5 Kw
- Weight：510kg
- Transport Package：Wooden Case
- Specification：1550x1830x2370 mm
- Trademark：CLJ
- Origin：China
- HS Code：84378000
- Production Capacity：4000 Units ,Year
Description
Basic Info.
Model NO. TQSX168 Capacity 10-12 T/H Air Volume 7500-7800m3 /H Power 1.5 Kw Weight 510kg Transport Package Wooden Case Specification 1550x1830x2370 mm Trademark CLJ Origin China HS Code 84378000 Production Capacity 4000 Units /YearProduct Description
Characteristic:
1. Unique selection chamber to seperate stones from grain, especially errective brwon rice.
2. Unique sieve stucture to save blowing rate.
3. Negative-pressure air suction to prevent dust from escaping the machine.
| Model | TQSX168 | TQSX125A | TQSX100B | TQSX85B | TQSX200 |
Output (t/h) | 10-12 | 7-8.5 | 5-6.5 | 3.5-4.5 | 14-16 |
| Speed of Main Shaft r/min | 485±15 | 485±15 | 485±15 | 485±15 | 485±15 |
| Level Slant Angle of Stoning Plate (adjustable range) | 11°-15° | 10°-14° | 10°-14° | 10°-14° | 11°-15° |
| Effective Operating Size of Stoning Plate(L×W)mm | 1170×1640 | 1275*1200 | 1175*950 | 1175*800 | 1200*1990 |
| Effective Operating Size of Selection Plate (length×width)mm | 145×60 | 160*65 | 160*45 | 160*45 | 190*105 |
| Air Suction volume m3/min | 7500-7800 | 5400-6200 | 3800-4100 | 3200-3400 | 9800-10400 |
| Equipment Resistance | 40-50 | 40-50 | 40-50 | 40-50 | 40-50 |
| Horizontal Slang Angle of Rocking Bar (degree) | 35±1.5 | 35±1.5 | 35±1.5 | 35±1.5 | 35±1.5 |
| Power of main machine(Kw) | 1.5 | 1.1 | 0.75 | 0.75 | 2.2 |
| Overall Dimension (length×width×height) mm | 1826×1550×2365 | 1615*1375*2065 | 1515*1125*2065 | 1515*975*2065 | 1650*2220*2410 |
| Machine Weight Kg | 550 | 480 | 380 | 350 | 960 |
