Geophysical Exploration Blasting Drill Rig

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

air compressor built-in surface DTH mine drilling rig for quarry ModelHW421Machine Weight6800kgEngineYuchai 162 kWDrill Pipe Sizes60 X 3,000 mmHole Dia80-115 mmWorking Pressure15 barF.A.D12 m3/minTramming Speed ( Max.)3 km/h (High Speed)Gradient25°Track Frame Oscilation±10°Transportation Dimensions6000X2800X2750 mmDetailed Images

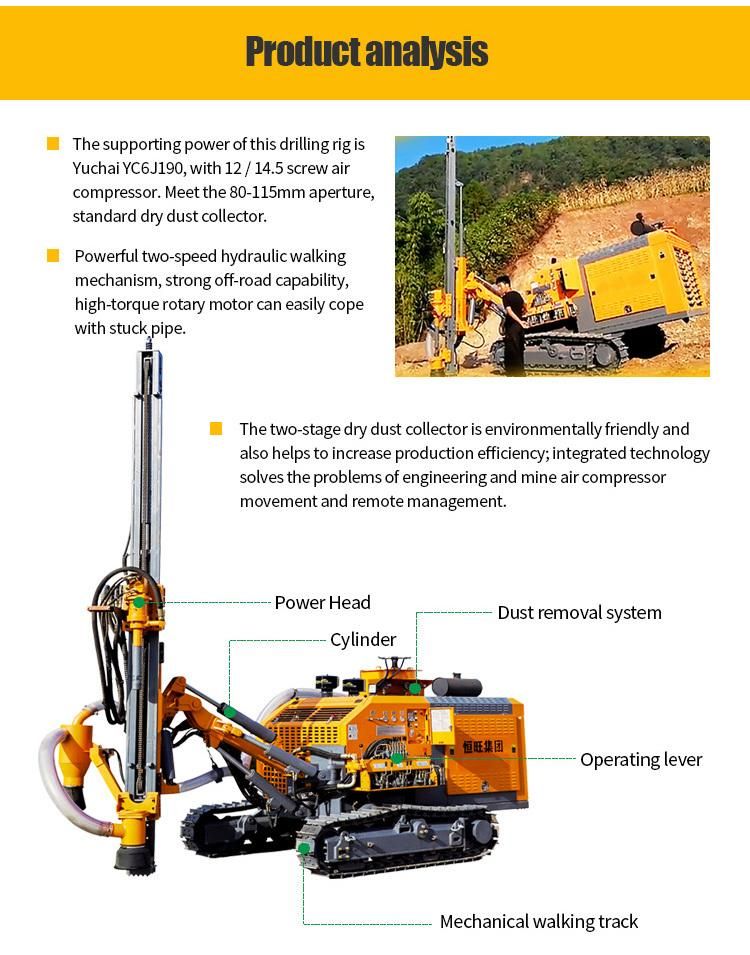

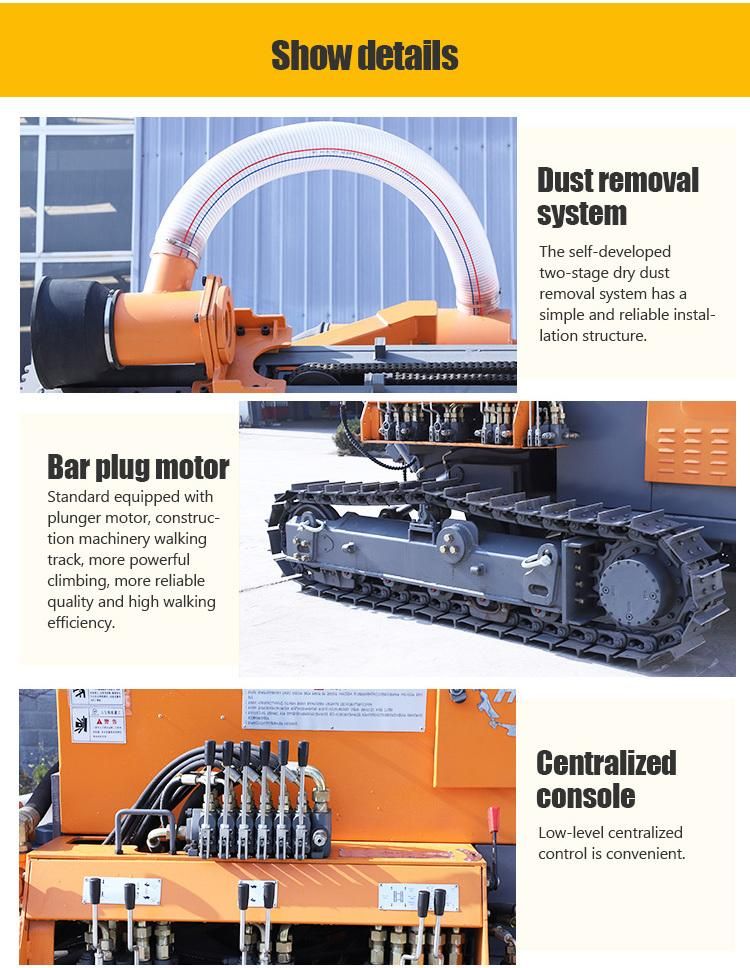

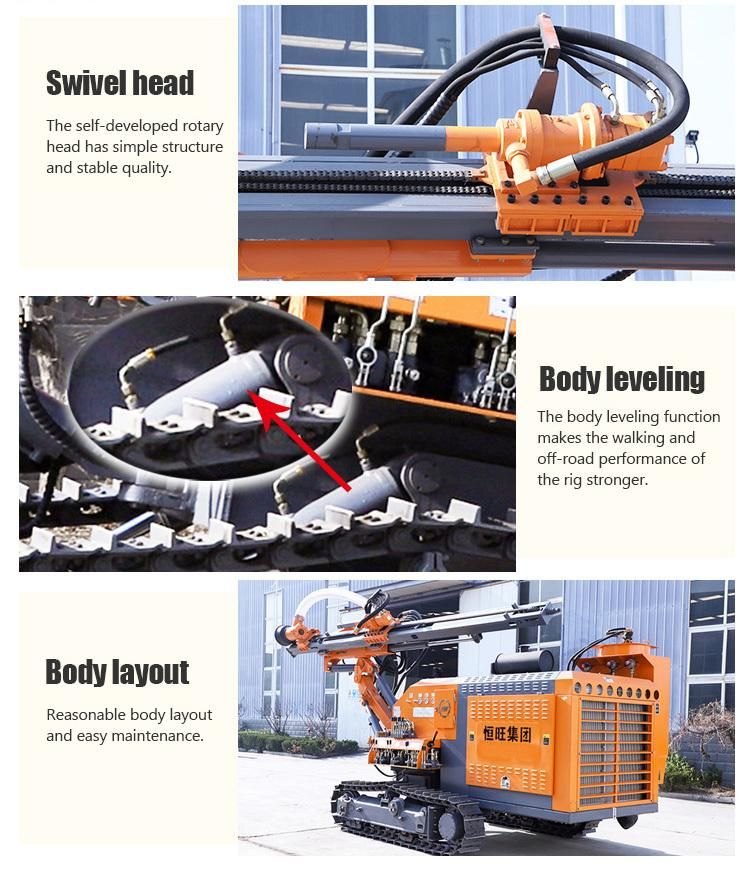

Detailed Images of quarry blast hole drilling machine
Geophysical Exploration Blasting Drill Rig

High Quality surface DTH drilling rig and Durable.
Geophysical Exploration Blasting Drill Rig

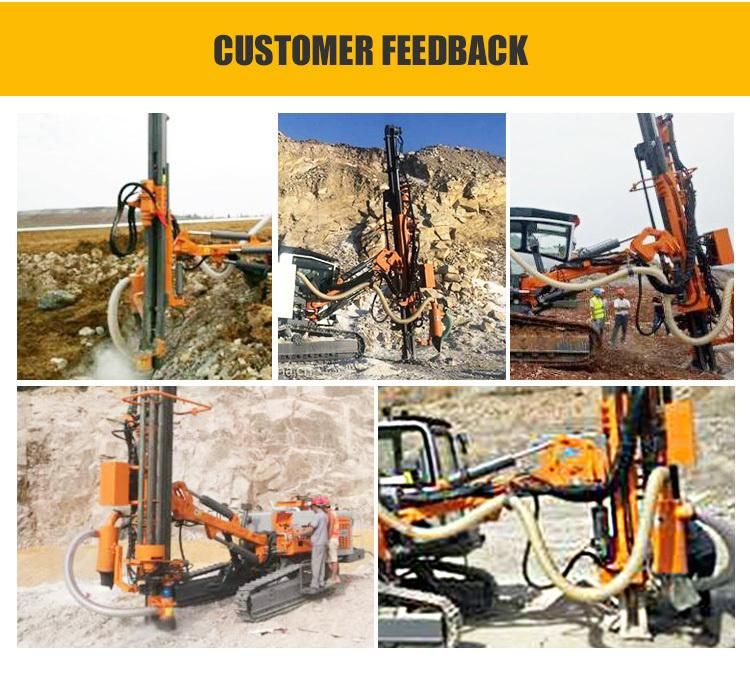

Construction Site of blast hole drilling rig Geophysical Exploration Blasting Drill Rig

Company Profile
