Underground Mining Heavy Electric Powered Rail Shuttle Car
Jinan Sealine International Co., Ltd- Type：Single-Side Dump Car
- Material：Stainless Steel
- Certification：CE, Ma
- Warranty：1 Year
- Color：Black
- Customized：Customized
Base Info
- Model NO.：ST(D)-
- Condition：New
- Model：St(D)-16b
- Self Weight(T)：17.8
- Long(M)：12.84
- Width(M)：1.77
- Height(M)：2.68
- Mainland：China
- Keywords：Electric Powered Shuttle Car
- Volume(M3)：16
- Loading Capacity(T)：32
- Track Gauge(mm)：600,762,900
- Transport Package：Wooden Case or Carton Case
- Trademark：China Coal
- Origin：Shandong, China
- HS Code：8606300000
- Production Capacity：1000 Sets Per Month
Description
ModelST(D)-14BST(D)-16BST(D)-20BST(D)-25BST(D)-30BVolume(m3)1416202530Self weight(t)13.617.819.8422.628.8Loading capacity(t)2832405060Track gauge(mm)600/762/900Overall dimension sizeLength(m)11.2512.8412.914.317.8Width(m)1.771.771.782.051.8Height(m)2.562.682.682.72.7Min. turning radius(m)1820252530Loading height(m)1.451.521.531.71.73Disassemble time(min)2444.54.5Max running speed(km/h)15Max motor power(kw)18.518.5*222*222*230*2Drive modesingle drivedouble driveCenter distance of truck frame(mm)54506250635070807250Applicable rail(kg/m)>=33>=33>=38>=38>=43Applicable roadway size(width*height)(m)3.4*3.53.5*44*44*4.55*5.5

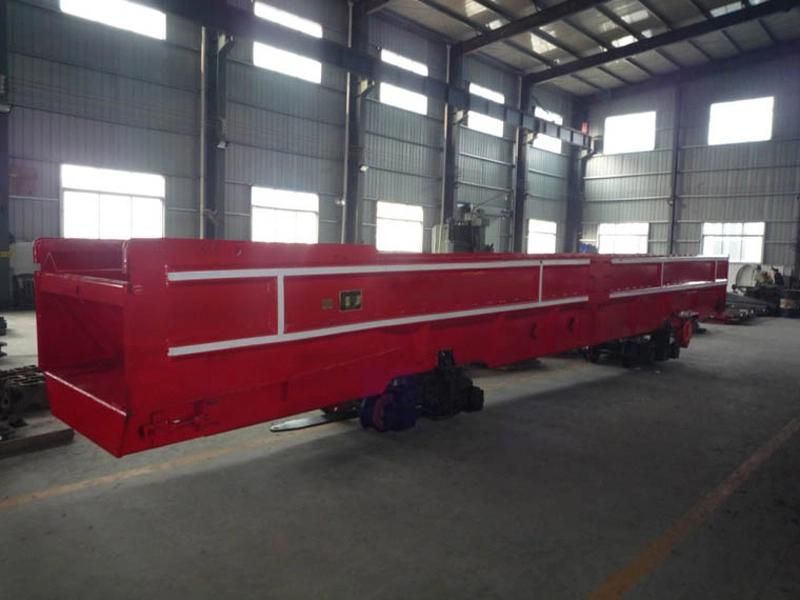

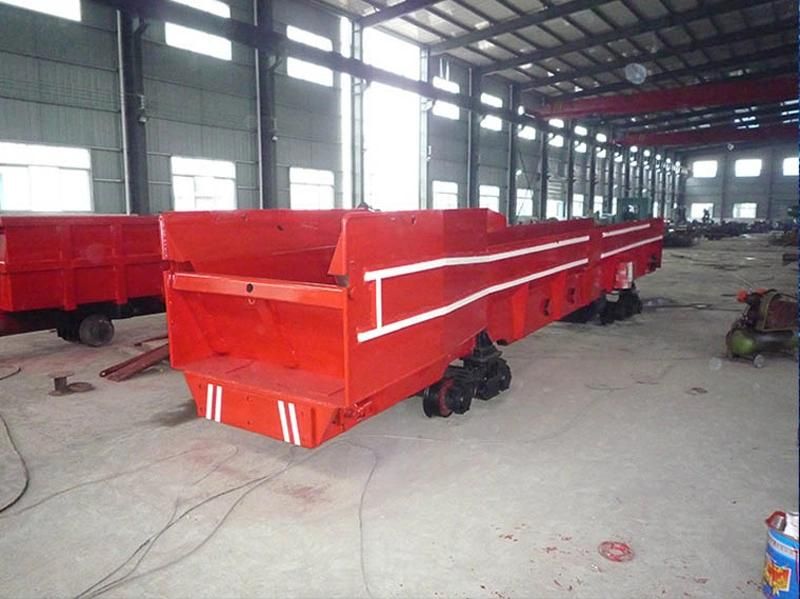

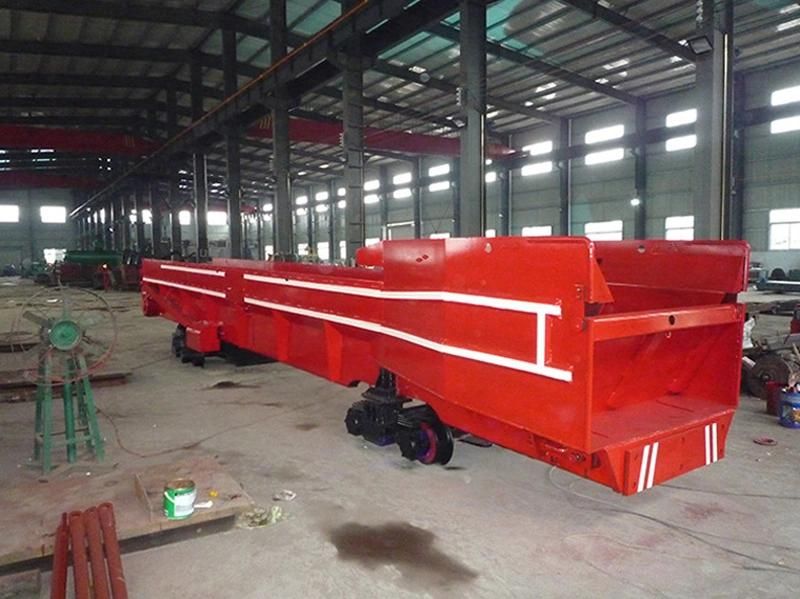

Photos Of Underground Mining Heavy Electric Powered Shuttle Car
Photos Of Underground Mining Heavy Electric Powered Shuttle Car
