Basic Info.

Model NO. MT135/150 etc. Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Non-Intermeshing Screw Channel Structure Non Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Turn Key Project We Can Support You Turn Key Project From a to Z Production Efficiency Depends on Different Capacity Technic New Technic Make It Easy to Operate Customised Yes, We Can According to Customer Requirement Heating Element Easy to Replace Electric Components Famous Brand Like Siemens etc. Hydrulic Station Saperate with The Machine Gurantee One Year From Start up Capacity 100-200kgs/H 200-300kgs up Standard ISO9001:2000 Transport Package Stand Export Packing Specification 1x40′′ containers Trademark Melite Origin China HS Code 84772090 Production Capacity 15 Lines Per Year

Product Description

PS Foam Sheet Extruder (MT135/150)

1. PS Foam Sheet Extruder include:

Feeding Device--Twin Extruders--Hydrulic filter changer--Mould head--Fixing Drum--winding Unit--Ps foam sheet

2. Spec. of Machines:

A. MT135/150 PS Foam Sheet Extruder

PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured
extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous
oll,from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly
operating system with inverter controlled driving, digital temperature control and so on,from this
machine you can get the PS Foam sheet by rolls,the PS Foam Sheet can be used for food container,
tray,plate and packing ect.

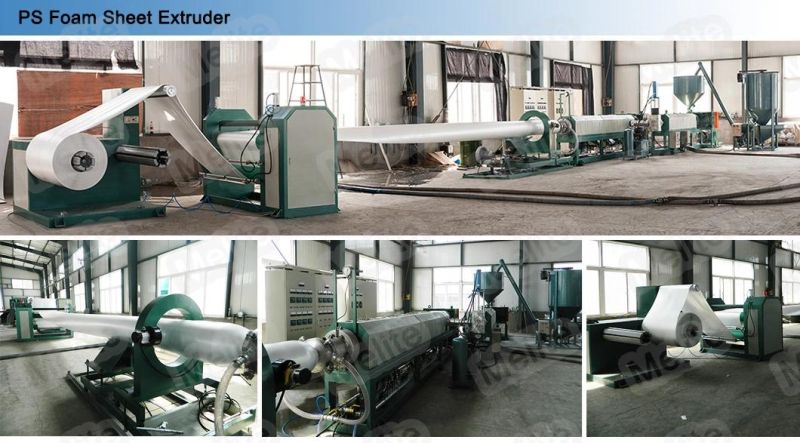

3.PS Foam Sheet Extruder Picture:




4.Technical Data:

Components:
A.Mixer
Hopper Capacity	300-500kg/ hopper (controlled by time relay)
Motor	1 set, 4-pole, 3kw
B. Automatic Feeding System
Automatic Self-control System
Motor	1 set, 6-pole, 1.1kw
C. NO.1 Extruder
Screw Diameter	Φ130mm
L/D	30:1
Screw Material	38CrMoAlA adopt Nitrogenous treatment
Heating zones	6 zones
D. NO.2 extruder
Screw Diameter.	Φ150mm
L/D	35:1
Material	38CrMoAlA adopt Nitrogenous treatment
Heating zones	6 zones
Pressure gauge	1pc
E. Cooling System
Hollowness water circulation cooling	1 set, as the dimensions by the customers
F. Hauling-off System
Rubber Roller	3 pcs, (according customer's requirement)
Traction Speed	3-31m/min
Motor	1x 4-pole, 3 kw (controlled by frequency changer)
G. Winding Device
Winding Pneumatic Shaft	2 pcs (according customer's requirement)
Torque motor	2sets
H. Die Material
Installation Power	200kw
Central height	1000mm
I. Weight	8 T

5. Our Advantages:

A. Machine advantage:

We upgrade our extruder, thermoforming machine, make it easy for operation,expecially the mechnical hand vacuum forming machine.
Supreme configuration.

In order to assure the reliability of the equipment operation,the main electric components adopt:German Siemens frequency exchanger, Japanese Mitsubishi PLC, Japanese Omron servo motor, Japan RKC temperature control etc.
the operation of the equipment is more humanizing, handle easily and simple to operate. The frame structure of our machines are magnificent strong and adopts superior materials to ensure the stability of equipment operation.

As the professional Plastic machine manufacturer, we keep pace with time, and keep the technical research.

B. Services Advantage:

Provide the professional technical support for designing plant layout and recommending suitable machine.

As a machine user,you will pay more attention to the after-sales services, in order to serve our customers,we provide 24 hours on-line after-sales services to save our customers' time.

6. Customer's frequently asked questions

A. We are new in this field,how can we set up a facotry?

Dear, don't worry, we did many turn-key project from 2008 until now, we have enough experience for helpping you setting up a new facotry,and we can provide the raw material(GPPS,HIPS,mastbatch and so on),formulations,machines,and your factory desin & layout, and we will arrange our engineers go to your factory for installation and trainning, you have Melite Team,take it easy, we are at your services all the time.

B. When your engineers are in our factory, everything is going on well, after they leave our factory,our workers can not operate the machines,what shall we do?

Firstly,we will let our 24 hours on-line services team to help you check which kind of problem you meet, if we can not solve the problem online, we will arrange our engineer fly to your site to solve your problem asap,your problem is our problem, Melite and You are together like a family forever.
