Basic Info.

Model NO. SJ-50.55.65 Computerized Computerized Machine Weight Range From Different Size Certification CE, ISO9001:2008, GMP Rewinder: Automatic Cutting and Change R Production Capacity: 60sets/Month Transport Package as Required Specification CQC, ISO9001, CE, SGS Trademark YUNBANG Origin China HS Code 8477309000 Production Capacity 720 Set/M

Product Description

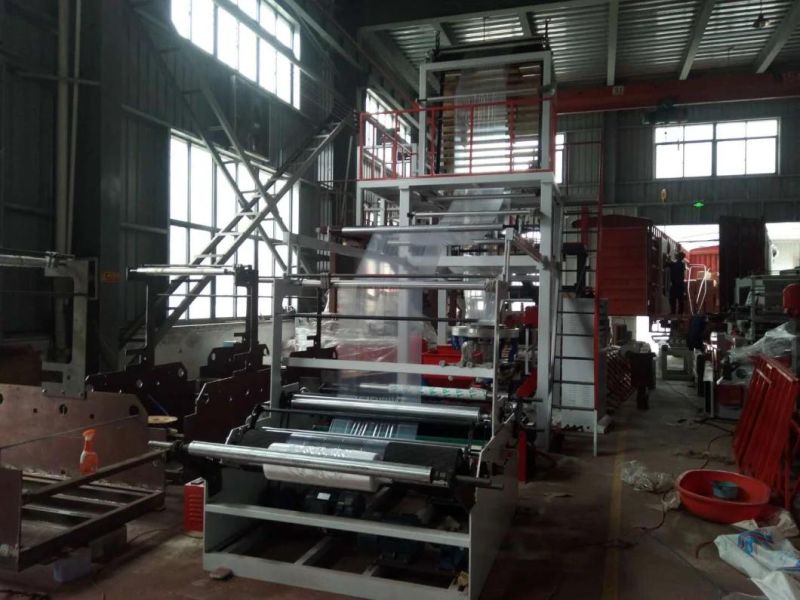

SJ-50, 55.65 High-speed Film Blowing Machine

Use:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

OPTIONAL EQUIPMENT:

1) COROAN TREATER
2)ROTERY DIE DEVICE
3)THICKNESS AUTO CONTROLLER
4)FILM WIDTH AUTO CONTROLLER


9	Barrel and screw material:  BIMETALIC Screw  and  38CrMoAl barrel

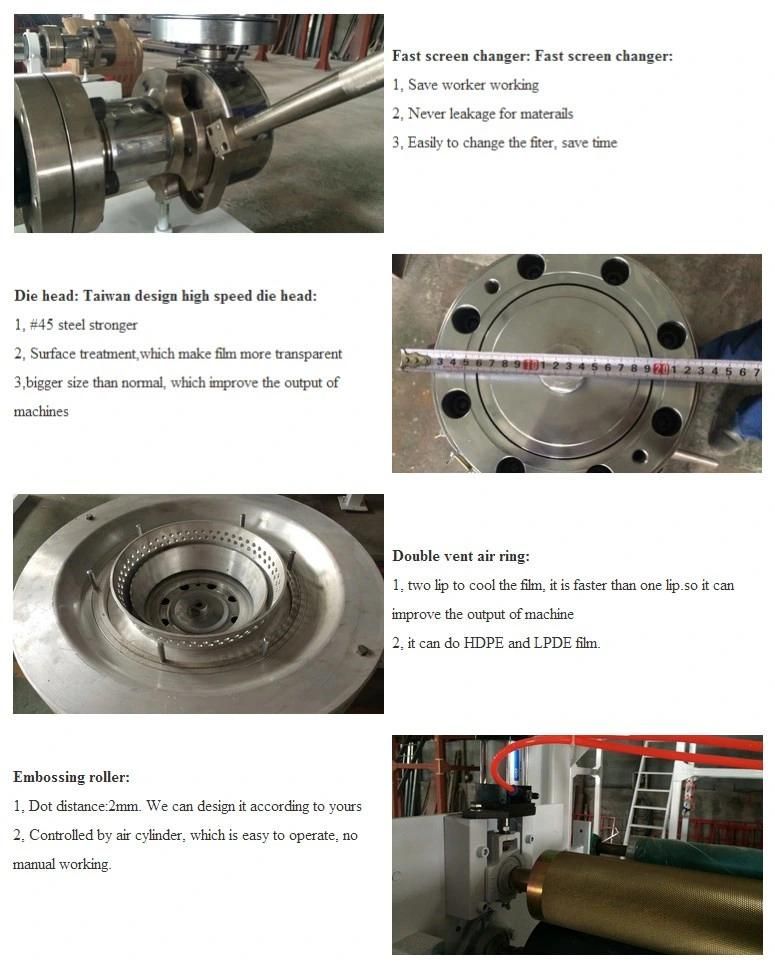

10	Die HEAD : fixed die head with  double vent  air ring
11	Gear box: water cooling reducer, hard tooth surface
12	AIR BLOWER :5.5KW(Detal inverter control)
13	single winder : automatic rewinding and  automatic changer roll ,control by PLC ,with two air shaft
14	counter of metric
15	Main motor : China motor  With inverter control (China  BRAND)
16	Heating ring : casting -AL material
18	with pneumatic cylinder on top tower and winder side
19	Line speed :100m/min
20	With Embossing roller
21	With Gusset device
22	Bubble fixer :Aluminium material  figuration frame
24	Other low-pressure electrical part : China brand
25	Power supply: 380V,3 phase, 50 HZ/Cycles.
26	UP and down device: inner type up and down, . 1pc
