• Model NO.：42T,24H
• Condition：New
• Customized：Customized
• Warranty Time：Two Year for Wheat Flour Milling Machine
• Installation Form：Steel Frame Construction Mill Section
• Noise：Less Than 85 dB
• Pipe：Stainless Steel in Milling Section
• Spare Parts：Two Year for Wheat Flour Milling Machine
• Control System：PLC for Control System
• After Sale Service：Engineer Overseas
• Production：30 Set Per Month
• Pack：Suitable for Sea Transportation
• Dust：Less Than 10mg,M3
• Transport Package：Plastic Film, Transported in Container20′or 40′
• Specification：GB1355-88
• Trademark：hongdefa
• Origin：Hebei China
• HS Code：84370000
• Production Capacity：More Than 200 Sets,Year

Basic Info.

Model NO. 42T/24H Condition New Customized Customized Warranty Time Two Year for Wheat Flour Milling Machine Installation Form Steel Frame Construction Mill Section Noise Less Than 85 dB Pipe Stainless Steel in Milling Section Spare Parts Two Year for Wheat Flour Milling Machine Control System PLC for Control System After Sale Service Engineer Overseas Production 30 Set Per Month Pack Suitable for Sea Transportation Dust Less Than 10mg/M3 Transport Package Plastic Film, Transported in Container20′or 40′ Specification GB1355-88 Trademark hongdefa Origin Hebei China HS Code 84370000 Production Capacity More Than 200 Sets/Year

Product Description

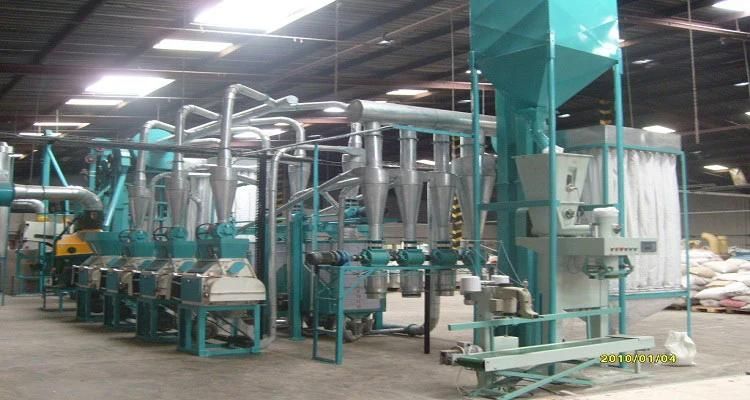

42T/24H wheat flour milling machine wheat grinding machine
This machine is a complete production line including cleaning, milling, packing and controlling systems.
The raw material is wheat and the final product is super fine wheat flour for making bread, cake, biscuits and so on.

Product Description
The parameter for 36T/D wheat flour milling machine
1. Total length of the roller: 4000mm
2. Capacity(wheat/24h):   42T/24h
3. Flour extraction:  to produce standard flour:75-82%
to produce grade 2 flour:70 -75%
to produce grade 1 flour: 60-65%
4. Flour quality: Obey the people's republic of china's GB1355-88 standard
5. Power supply: about 120KW.
6. Total weight of the equipment: 26T
7. Dimension of the factory: 32000×9000×7500mm (tripod structure)

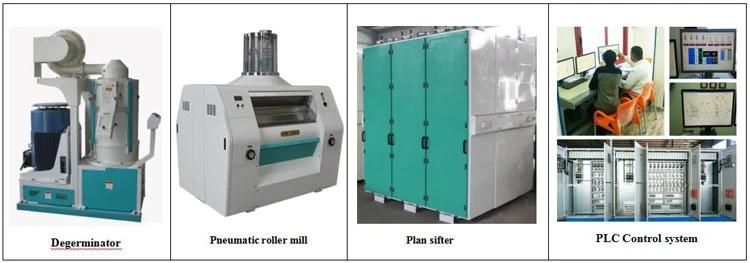

           High Standard Quality maize mill machine
           Advance roller stands
           Screw air compressor
           Stainless steel pipe where contact with the material

1. Cleaning part
to clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator  and dampening. This section is to prepare for milling part and to protect the machinery as well.
2. Milling part
The second step, to mill the grain and separate the flour, bran and other by-product:
(1) Mill: mill the grain to break the integrity by the roller moving
(2) Sifter: to separate the flour, bran and other by-product, also separate large size and small size to ensure flour quality.
3. Packing part
The third step, the packing machine can be manual or automatic weighting and packing.
4. PLC controlling system
 To controlling the whole set of machinery to work well and showing the process of working

--1.Roller mills manufactured precisely and controlled by pneumatic / electric mode. It can make better grinding effect compared with other ordinary mills.
--2.Complete set of flour mill adopt various configuration modes for different choices. There are streamlined design, reasonable layout, and good performance. It can be installed on steel structure or in building.
--3.The flour mill is with advanced technical process and flexible adjustment. It can produce grade flour and special flour.
--4.Perfect after-sales service is also supplied for all the machines.
--5.We arrange engineers to help install the machine, which can ensure the machine operate efficiently.

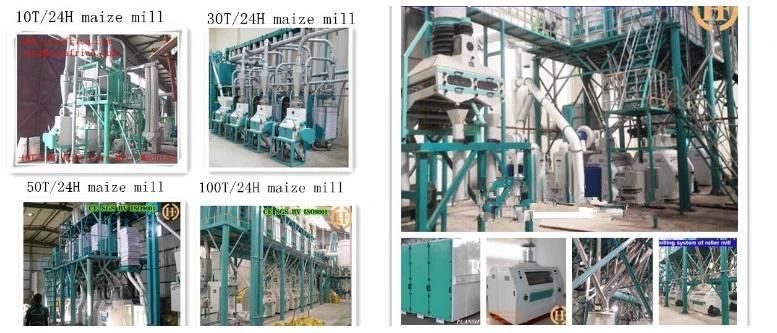

We have installed flour mill before:

50T/24H wheat flour milling machine wheat grinding machine was installed in Zimbabwe in 2008.

50T/24Hwheat flour milling machine wheat grinding machine was installed in Ghana in 2008

80T/24H wheat flour milling machine wheat grinding machine was installed in Ethiopia in 2017

100T/24H wheat flour milling machine wheat grinding machine was installed in Zimbabwe in 2014

60T/24H wheat flour milling machine wheat grinding machine was installed in Brazil in 2010

50T/24H wheat flour milling machine wheat grinding machine was installed in Argentina in 2010

Hongdefa machinery

Shijiazhuang Hongdefa Machinery Co.,LTd is a professional manufacture of wheat flour mill and maize mill,we provide high quality machine from 500kg/h to 50ton/h with different design according to our client needs,with European technology,South Africa maize process,China wheat process, roll out unique and innovative wheat flour mill and maize mill plant.
The head office of Shijiazhuang Hongdefa Machinery Co.,Ltd is located 4hours driving From Beijing,where we have approximately 100employees, a manufacturing facility of
3000square meters and 500 square meters of office space
Shijiazhuang Hongdefa Machinery have more than 30years experience in milling market.
