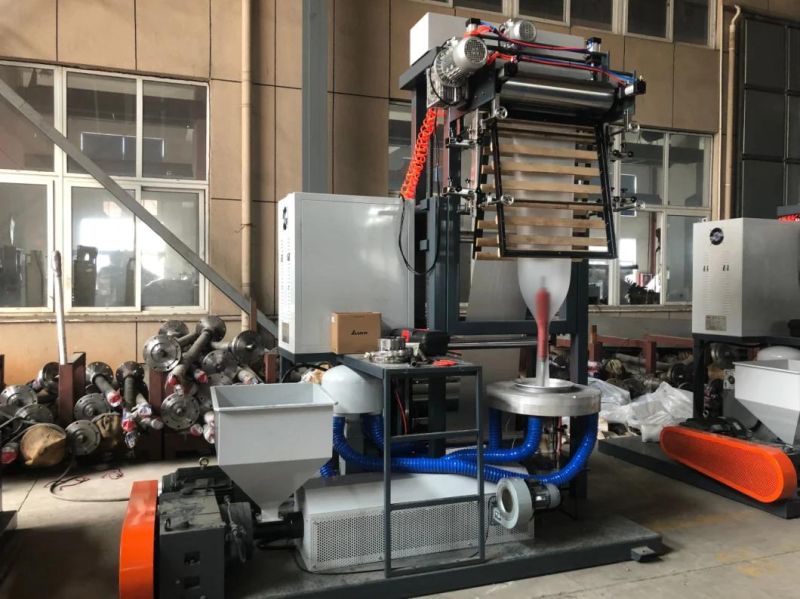

Tiny Film Blowing Machine

Classic Hardware Co., Ltd

Base Info

Description

25-30kg/hr0.01-0.150.01-0.08
Extruder

Screw diameter(mm)	Φ45
Screw L/D length	28:1
Screw material (adopt alloy steel nitrogen treater)	SACM-645/38 CRMOALA
Cylinder material	SACM-645/38 CRMOALA
Driving motor (kw) (3phase frequency inverter control)	11
Average power-consume(kw)	8

Type of die

Die size (surface adopt chromium plate)	Air ring (made of aluminum)	Air blower(kw)	Center steady stick (LD)
Φ80	1	1.5	1

Take-up unit

Roller width(mm)	600m
Effective width	500mm
Take-up speed(m/min)	10-100
Take-up motor(kw)	0.75

Winding unit

Type	Winding motor (torque motor control)	Windingspeed (m/min)	Cover dimension (m)
Surface friction type	1.5kw	10-100	3.5×2.3×2
