Basic Info.

Model NO. Shredder Machine Production Capacity 1, 000 PCS/Year

Product Description

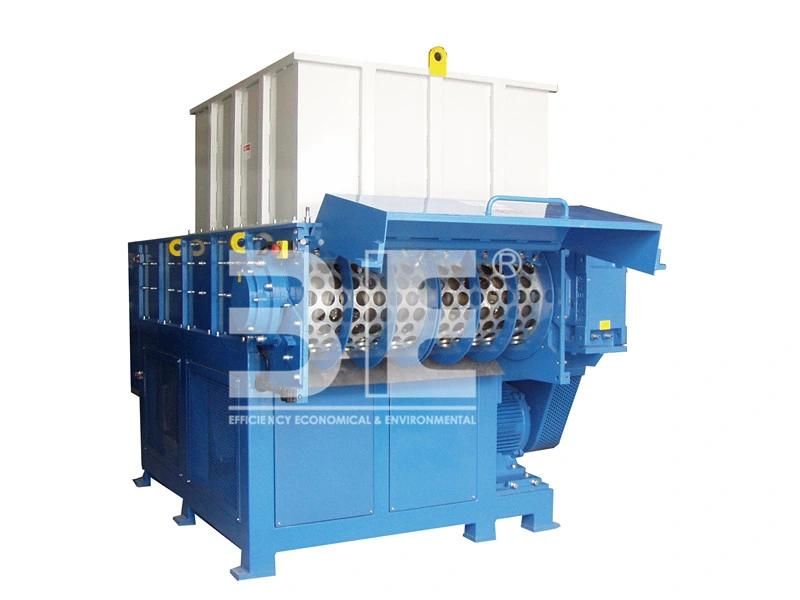

       3E's single shaft shredder is a widely used type of machine.  It consists of a single, solid shaft with square blades bolted into it. This shaft rotates at about 74-83 RPM, depending on the model, and these blades pass through a bed knife on the base of the cutting chamber. A hydraulic ram continually pushes the material against the shaft of the shredder for continuous cutting.
       3E's single shaft shredder is an ideal machine for plastics, paper, wood, fiber, rubber, organic waste a wide variety of non metallic materials.
       The size of the machine required for each project depends on the initial size of the material, capacity and the final particle size desired.
       3E's single shaft shredder is almost always used with a screen, which retains the material in the cutting chamber to reduce the material even further. The standard cut on a single shaft shredder is 25-40mm.
Single Shaft Shredder(WTP Series) Application:

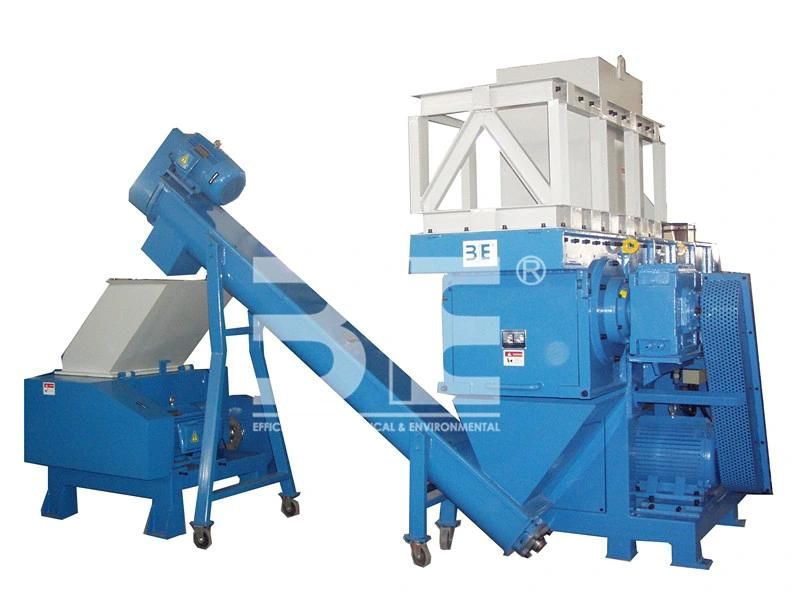

      Our pipe shredder series is specifically designed for processing long and thick walled plastic pipe. The shredder can be adjusted to suit various pipe diameters.




Model Item	Unit	WTP4060	WTP4080	WTP40100	WTP40120	WTP40150
A	(mm)	2890	3350	3500	4100	4400
B	(mm)	1470	1670	1870	2380	2580
C	(mm)	690	840	920	1080	1300
D	(mm)	520	700	880	1100	1400
E	(mm)	850	850	850	850	850
H	(mm)	2460	2460	2460	2460	2460
Cylinder Stroke	(mm)	750	900	900	1100	1300
Rotor Diameter	(mm)	φ 400	φ 400	φ 400	φ 400	φ 400
Main Shaft Speed	(r/min)	83	83	83	83	83
Screen Mesh	(mm)	φ 40	φ 40	φ 40	φ 40	φ 40
Rotor-knives	(PCS)	34	46	58	70	88
Stator-knives	(PCS)	4	4	4	6	6
Main Motor Power	(KW)	30	37	45	55	75
Hydraulic Motor Power	(KW)	3.75	3.75	3.75	5.5	5.5
Weight	(KG)	4000	4800	5300	6000	7100
Shredding Capacity	(KG/H)
