Basic Info.

Model NO. pre-insulation pipe machine Condition New Applications Plastic Pipes Pipe Range 48mm-325mm Transport Package Standard Package Specification EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001 Trademark HSD Origin Qingdao China HS Code 84772090 Production Capacity 1000unit/Year

Product Description

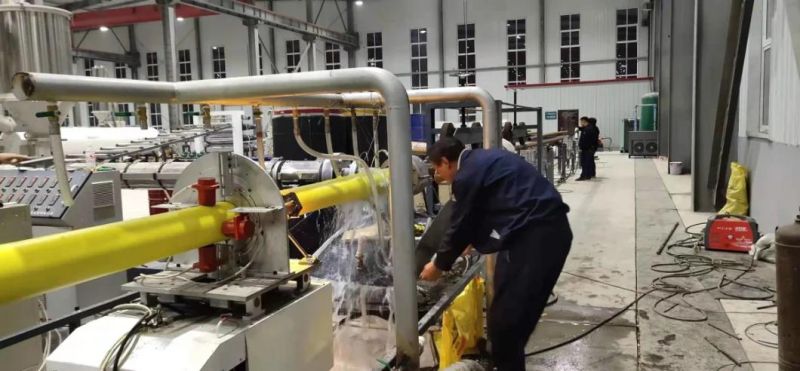

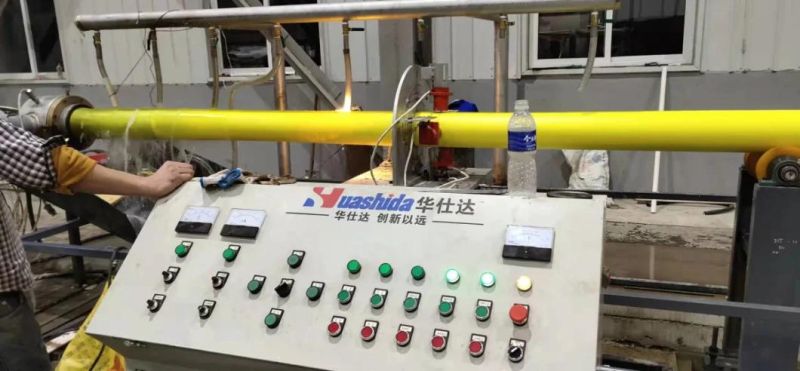

Continuous 48-325mmPU foam pre-insulation pipe making machinery


continuous PU foam insulation plastic pipe extrusion machinery is used for small pipe dia. PU insualtion pipe making. Common pipe dia. scope is from 48-325mm.

Technology Process:

1.Up load pipe-----2.External derusting------3.Put label on pipe side-----4.Intermediate heating------5.external epoxy coating----6.Water cooling-----7.Coating layer detection-----8. Put adhesive on epoxy layer-----9.PE jacket coating------10. PU foaming-----11.Foaming rectification-------12.Pipe edge cutting----13.Water cooling---14.Pipe edge heat shrink sealing------15.Download pipe



Condition:

1. Place:   In room
2. Power:  No danger
3. Moisture: 85% 85% no condensation
4. Temperature: 0-30ºC

Working condition:

1. Power supply:  3. 380V(-10%,+5%) 50HZ
2. Installed:     850 KW About 850KW
3. Cooling water recycling:≤15ºC,0.15-0.2MPa,0.5m³/min

      Material:      HDPEHDPE pellets,  Hot melt adhesive, Epoxy powder

If you have interesting for this continue PU foam insulation pipe extrusion machine you can directly contact with us.
