Basic Info.

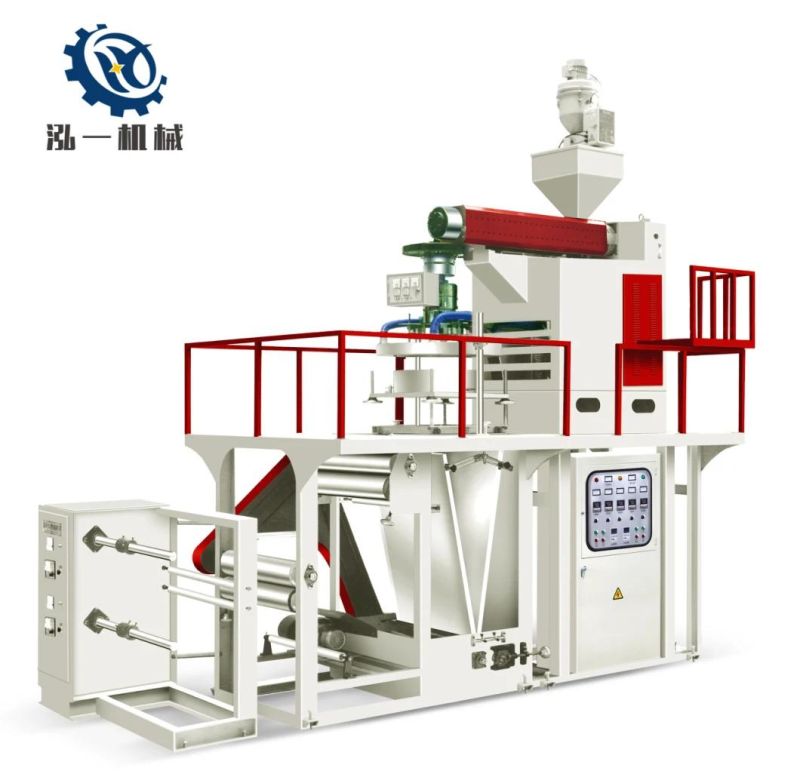

Model NO. FB-G-600 Certification CE Die Head 360 Degree Rotation Drying Method Oven Drying Bubble Ring Water Ring Winder Type Center Control Gurantee One Year Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477300000 Production Capacity 30 Set/Month

Product Description

Product Description
Features:
(1) The machine employs some new technologies such as combined machine head with three-layer extrusion, lower blowing water(rapid) cooling, rotating half-off.
(2) It is applicable to produce PP film to produce the packing film and compound packing material with good insulation, sealing, transparency, light sheltering, cooking, fresh-keeping, hot-sealing, and printing and other performance.
(3) The film has taken the place of most of CPP and BOPP plastic films and provides economical plastic packing film with multi-layer extrusion for food, agricultural by-products, medical products, medical products, pesticide, chemical products, daily necessities and military products etc.

Technology Parameter:

Model	FB-G-600	FB-G-800
Screw diameter(mm)	60mm	75mm
Screw L/D Ratio	L/D28:1	L/D28:1
Screw rotation	10-100r/min	10-100r/min
Power of main motor	15kw	18.5kw
Max.Extrude Output	38kg/h	46kg/h
Rotational Mode of Machine Head	continually rotary	continually rotary
Single-face Thickess of film	0.015-0.08mm	0.015-0.08mm
Max Film Folding Dia.	600mm	800mm
Total Power	28kw	36kw
Machine of weight	3000kg	3500kg
Overall Dimension(L×W×H)	4800×2000×4000mm	5000×2200×4200mm
