Basic Info.

Model NO. PSC-200~800A Model Number Vcl-200A Application EPS Dimensions 4800*1950*1850 Weight 800kgs Connected Load 11.2kw Transport Package Standard Export Package Trademark VST Origin Zhejiang, China (Mainland) Production Capacity 30 Units Per Month

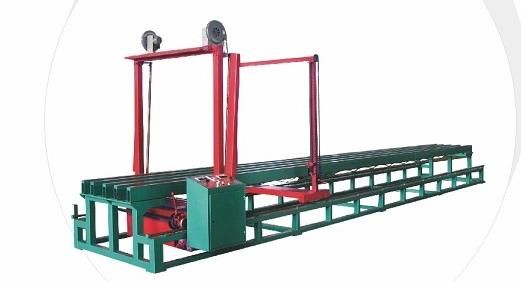

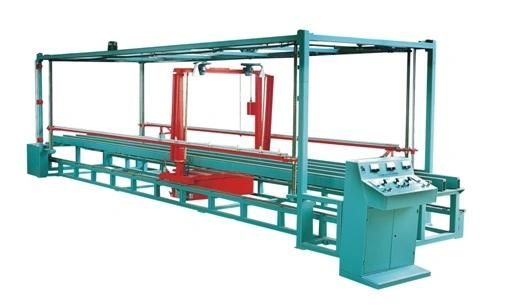

Product Description

Main Feture:
1. The main frame of the machine is welded from square profile steel, with strong structure, high strength and no deformation;
2. The machine can make horizontal cutting, vertical cutting and down cutting automatically, but wires setting is done by hand.
3. Adopts 10KVA multi-tapped special transformer for adjustment with wide adjustable range and multiple votages.
4. Cutting speed range 0-4m/min

Item	DSQ-3000B	DSQ4000Q	DSQ-8000Q
Max cutting size(mm)	3000*1250*1250	4000*1250*1250	6000*1250*1250
Power	35kw	35kw	35kw
Overall dimension(mm)	5800*2300*2600	6800*2300*2600	8800*2300*2600
Weight	2000kg	2500kg	3000kg
