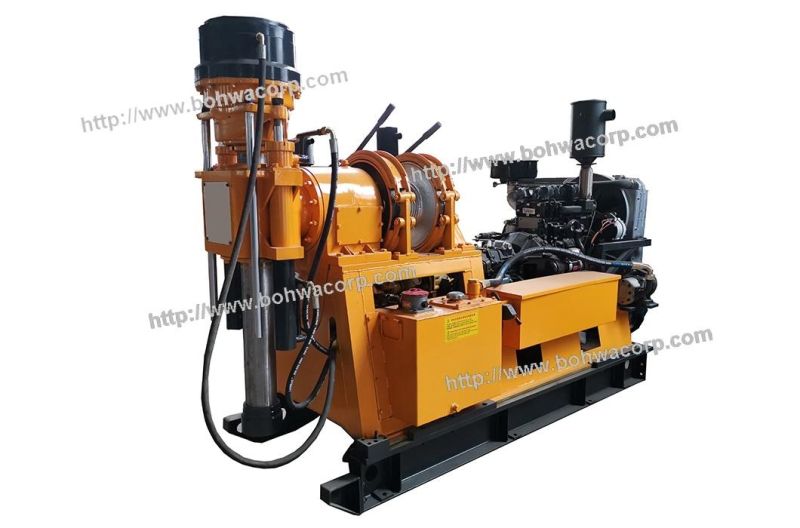

| Drill Type | XY-3 |
Engine/
Motor | Name | Electric Motor | Diesel Engine |
| Type | Y200L-4B35 | YC4D60-D21 |
| Power | 30KW | 40KW |
| Rotational Speed (r/min) | 1470 | 1500 |
| Drilling Capacity | Drilling Rod Dia. (mm) | Drilling Depth (m) | Final Hole Dia. (mm) |
| Φ55.5 Wireline Core Drilling Pipe | 600 | 59 |
| Φ71 Wireline Core Drilling Pipe | 450 | 76 |
| Φ54 Common Drilling Stem | 500 | 59 |
| Φ60 PQ Common Drilling Stem | 400 | 76 |
| Rotator | Spindle Rotational Speed (r/min) | Clockwise: 33, 65, 109, 165, 215, 302, 507, 766, 1002 Anticlockwise: 36, 167 |
| Spindle Dia. (mm) | 76 |
| Angle of Rotation | 0 to 360° |
| Feed System | Model | Double oil tank |
| Lifting Capacity (KN) | 60 (rated), 75 (max.) |
| Pressing Capacity (KN) | 45 (rated), 55 (max.) |
| Stroke (mm) | 600 |
| Winch | Model | Planetary type |
| Three-layer Single-rope Hoist Capacity (KN) | Max. 32 |
| Three-layer Single-rope Hoist Speed (m/s) | 0.72, 1.2, 1.82, 2.38 |
| Drum Diameter (mm) | 220 |
| Wire Rope Diameter (mm) | 14 |
| Wire Rope Capacity (m) | 55 |
| Hydraulic System | Oil Pump Model | CBTLFT-416/E410-ALH6 |
| Oil Pump Displacement (ml/r) | 16+10 |
| System Pressure (MPa) | 8 (rated), 10 (max.) |
| Oil Cylinder Stroke (mm) | 460 |
| Dimension (L × W × H) (mm) | 2490 × 920 × 1880 (Electromotor) 2615 × 920 × 1880 (Diesel engine) |
| Net Weight (kgs) | 1300 |
