Yq70 Yq80 Yq100 Yq130 Rotary Anchor Hole Drilling Rig for Construction
Zhengzhou Zomagtc Company Ltd.Base Info
Description
Model
YQ70
YQ100
YQ120
Drilling diameter
φ60-80mm
φ83-100mm
φ85~130mm
·
Suitable for rock (platts hardness)
≥20
≥20
≥20
Drilling depth
≥15m
≥30
30-40m
Rotary speed(r/min)
110r/min
90r/min
90r/min
Air pressure
0.5-0.7Mpa
0.5-0.7Mpa
0.5~1.0Mpa
Air Consumption
≥3.5m3/min
6M3/min
10m3/min
Cylinder diameter
90mm
90mm
90mm
stroke
1070mm
1070mm
1200mm
propelling force
3600N
6000N
9600N
Power
3kW
3kW
3kW
Voltage
380V
380V
380V
Rated speed
1410r/min
1410r/min
1410r/min
Drill pipe diameter
φ42mm
φ42mm
φ42mm
Drill pipe length
1025mm
1025mm
1025mm
Dimension
1740×260×420mm
1800*650*400mm
1800*700*450mm
Weight
220kg
250kg
300kg

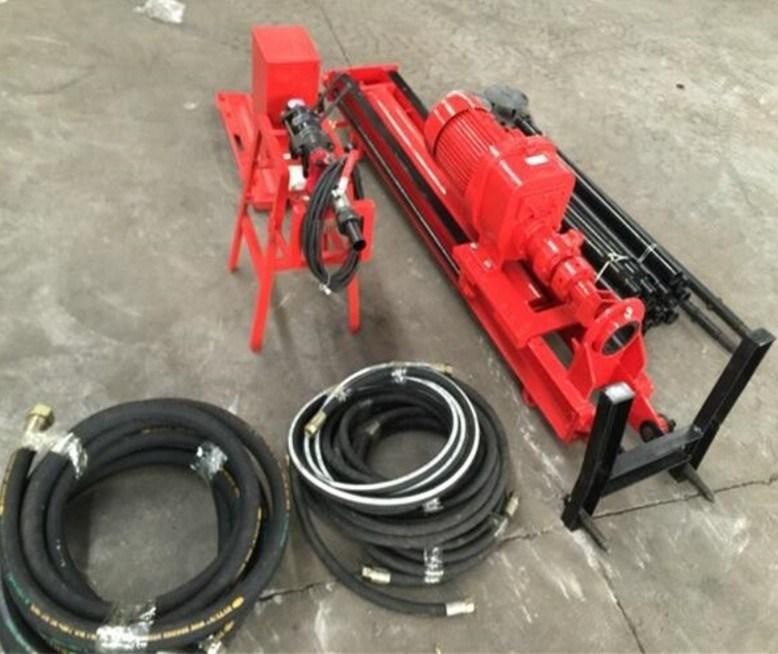

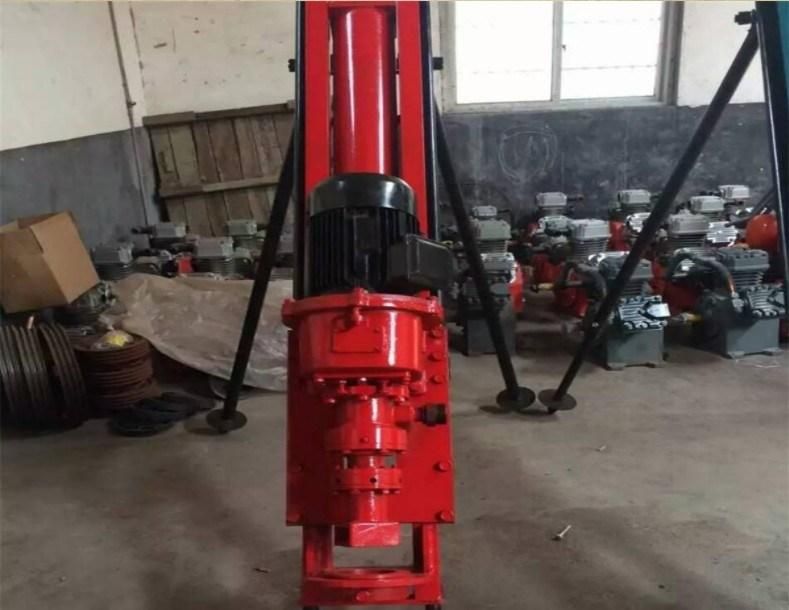

Detailed Images
