Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection

Ningbo U-Per Consumer Goods Co., Ltd.
  • Shape：Cup-Shaped
  • Bonding Agent：Metal

Base Info

  • Model NO.：DY-03
  • Body Material：65mn
  • Arbor Size：16mm, 20mm, 22.23mm, M14
  • Usage：Urethane Epoxy Waterproofing Membrane Pool Deck Co
  • Advantage：Fast Grinding , Long Working Life
  • Diamond Grit and Bond：#30,40 with Medium Bond
  • Equipment：Angle Grinders
  • Sample Production Time：5-7days
  • Manufacturing Experience：Over 8 Years
  • Transport Package：Color Box, White Box, Blister Package
  • Specification：4.5Inch-7Inch
  • Trademark：DY-Tools
  • Origin：Jiangsu, China (Mainland)
  • Production Capacity：100000,Month

Description

Basic Info.

Model NO. DY-03 Body Material 65mn Arbor Size 16mm, 20mm, 22.23mm, M14 Usage Urethane Epoxy Waterproofing Membrane Pool Deck Co Advantage Fast Grinding , Long Working Life Diamond Grit and Bond #30/40 with Medium Bond Equipment Angle Grinders Sample Production Time 5-7days Manufacturing Experience Over 8 Years Transport Package Color Box, White Box, Blister Package Specification 4.5Inch-7Inch Trademark DY-Tools Origin Jiangsu, China (Mainland) Production Capacity 100000/Month

Product Description

Product information :

PCD (polycrystalline diamond) grinding wheels designed for aggressive removal of hard and tacky surfaces such as:

  • Urethane epoxy
  • Waterproofing membrane
  • Pool deck coating
  • Thick mastic
  • Paint
  • VCT/carpet glues

To protect pcd grinding wheels, please Avoid grinding on metal and nail.

Segments:Quarter Round PCD
Arbor Size:22.23mm, 5/8"-11 Threaded
Equipment:Angle grinders
Grinding Method:Wet or dry

Product specification:

DiameterSegmentsArbor
4.5"5 segments22.23mm, 5/8"-11 Threaded, M14
5"6 segments22.23mm, 5/8"-11 Threaded, M14
7"6 segments22.23mm , 5/8"-11 Threaded,M14
7"6 segments22.23mm, 7/8"-5/8" Non-Threaded
7"9 segments22.23mm ,5/8"-11 Threaded
7"9 segments22.23mm , 7/8"-5/8" Non-Threaded

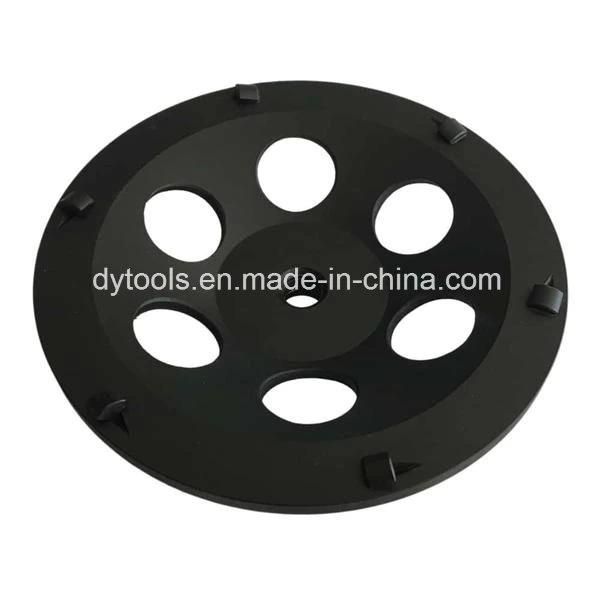

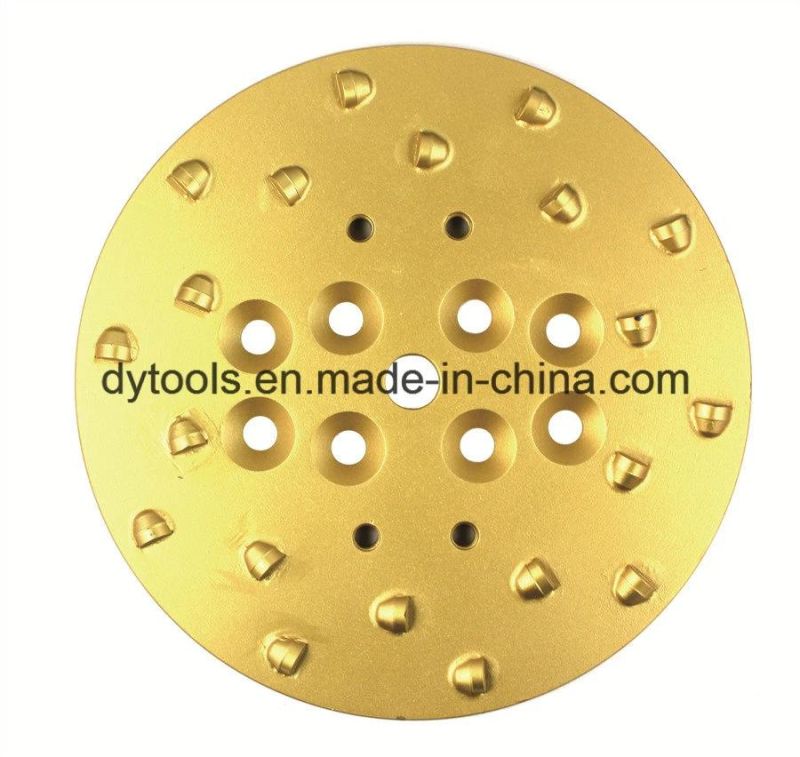

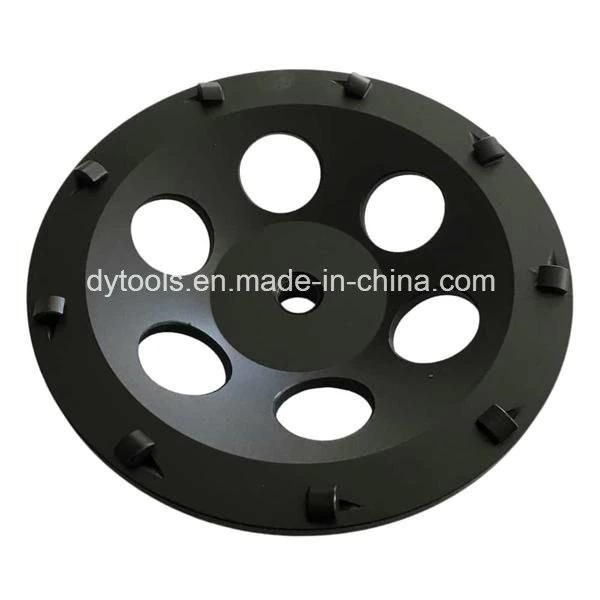

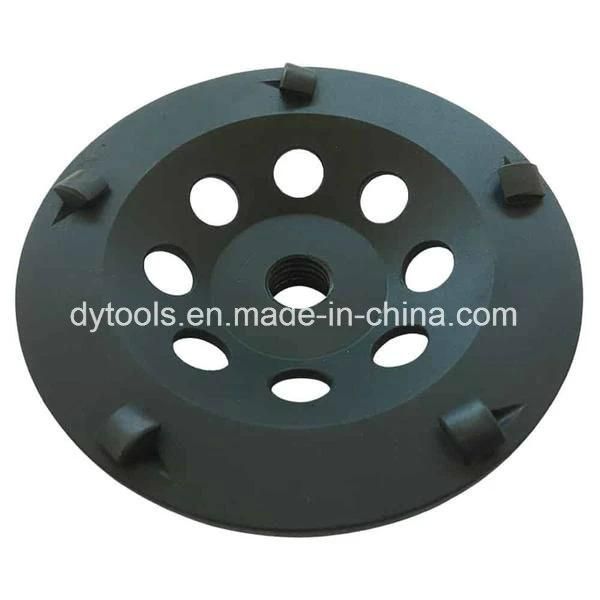

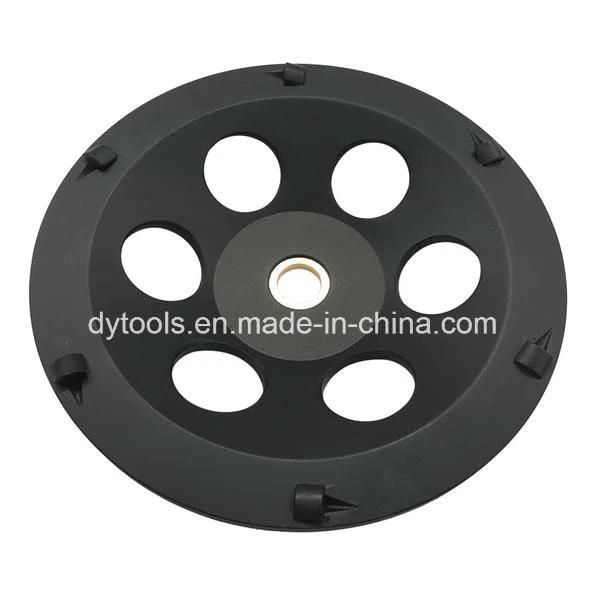

Product Picture :
Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection
Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection

Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection
Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection
Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection
Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection
Product Package :

White box , color box , double blister .

Shipping :
Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection

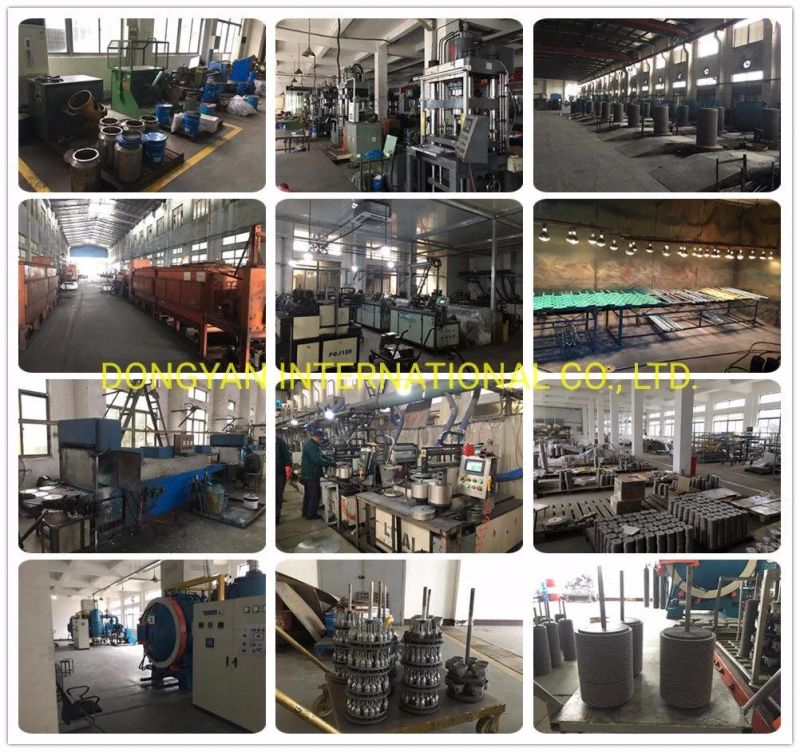

Our Factory:
Silver Welded PCD Grinding Cup Wheel with 5/8-11 Connection

Our factory was established 2000s, and has a long history of more than 20 years. We are now a high technology with the capability of production, sales, and research of new technology.

Our factory was supported with a powerful technology team, advanced production line, and inspection equipment. We strictly conform to ISO9001-2000 quality control system. Inspection between processes follows the EN standard.

We are supply the diamond saw blade, diamond core drill bit and PCD / diamond grinding wheel .Our products have exported to Europe, America,Asia and enjoyed good reputation.

Hope fully to be your trustworthy supplier in China.
