Automatic Bobbin Winder for 3D Drawing Printing Pen Filament 1.75mm Winding Machine

SHAOXING SHANGYU REAL SAW CUTTING TOOLS CO., LTD.

Base Info

Description

Detailed Images
Automatic Bobbin Winder for 3D Drawing Printing Pen Filament 1.75mm Winding MachineAutomatic Bobbin Winder for 3D Drawing Printing Pen Filament 1.75mm Winding MachineAutomatic Bobbin Winder for 3D Drawing Printing Pen Filament 1.75mm Winding Machine

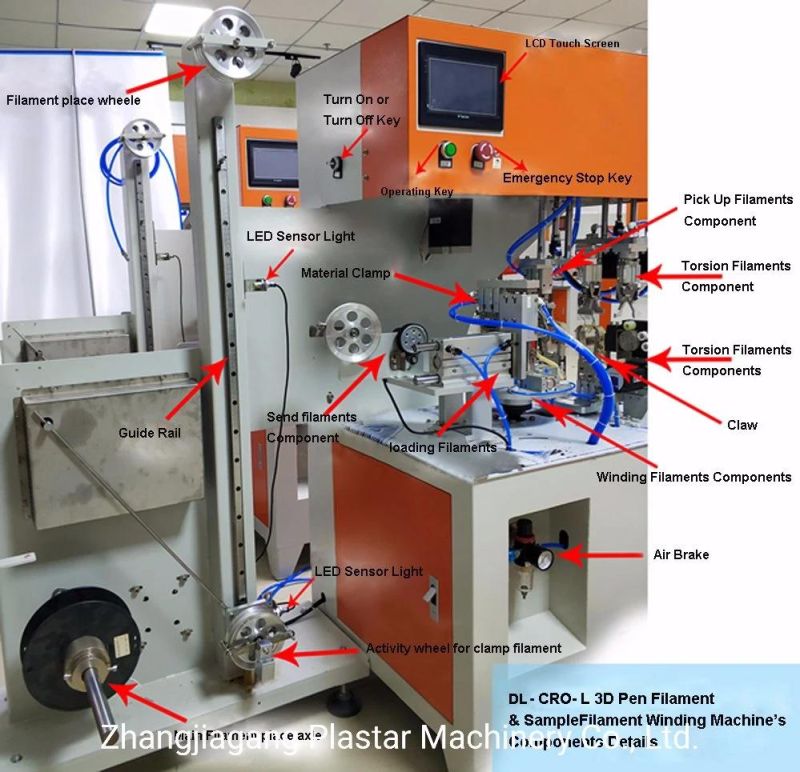

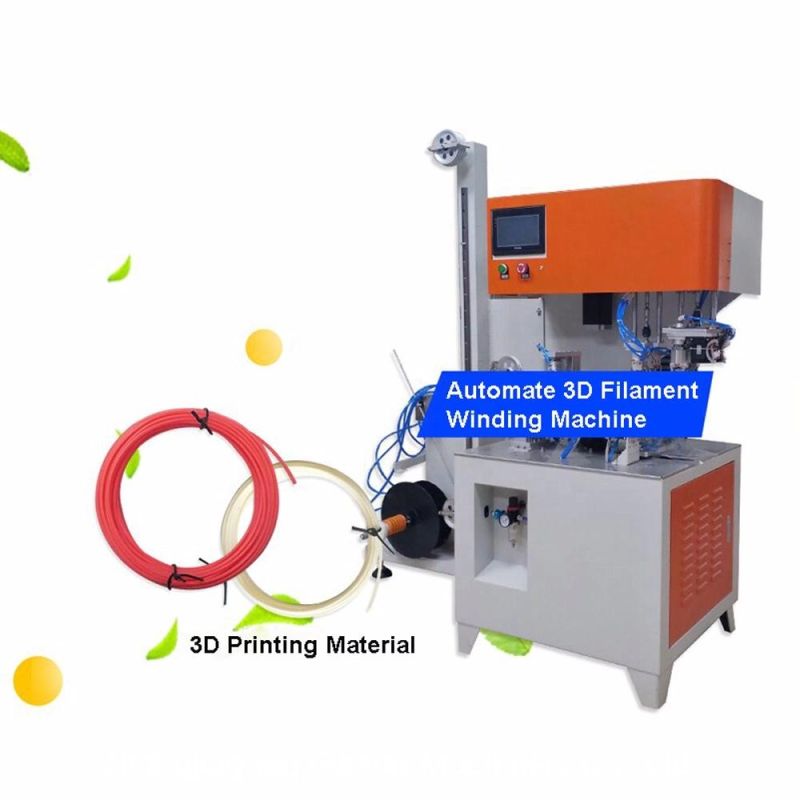

Product Name:Automate 3D Sample Filament Winder
Model Number:YASIN-CRO-L

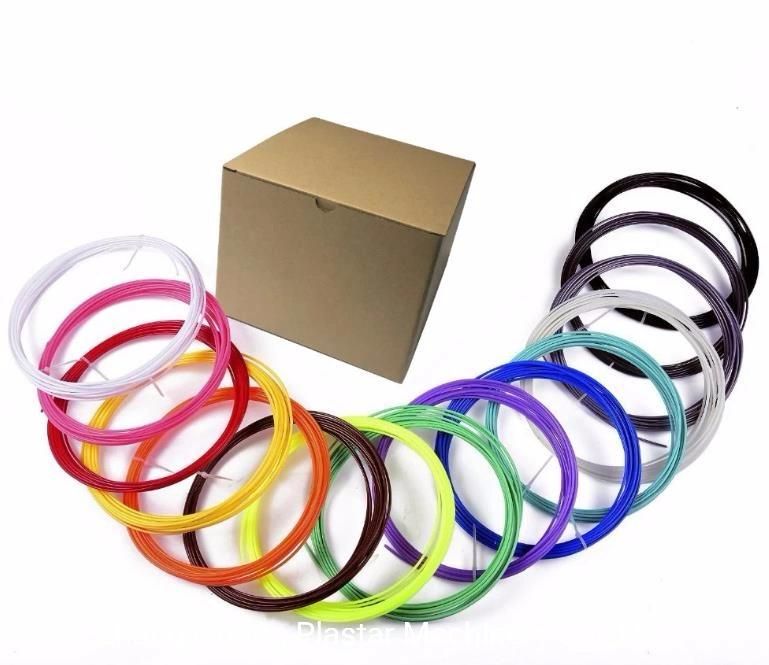

The Finished Filment Appearance:Circle with two tie
Produce Speed:600pieces / h
Finished Filament Circle Diameter:80mm
Build Volume for Filament:10-50grams
Finished Tie Filament Diameter:45mm
Sutable Tie for Packaging:Nylon cable tie
Filament Front Part Stays Long:≤50mm
The End of Long for The Filament:≥50mm
Main Motor:Servo motor and Stepping motor
Voltage Request:210-240V /5A
Power  Request :300W
Aerostatic Press Machine: Normal Aerostatic Press Machine
Atmospheric Pressure request0.4-0.6Mpa
Machine Size :155*70*160cm
Net Weight :150KGS
Gross Weight :200KGS
