• Model NO.：GD600
• Electric Power：16kw,380V
• Total Length：17m
• Max Candy Weight：as Per as Candy Size
• Room Condition：Temp20~25°c
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：TGmachine
• Origin：China
• HS Code：84382000
• Production Capacity：600kg,H

Basic Info.

Model NO. GD600 Electric Power 16kw/380V Total Length 17m Max Candy Weight as Per as Candy Size Room Condition Temp20~25°c Transport Package Wooden Case Specification CE, ISO9001 Trademark TGmachine Origin China HS Code 84382000 Production Capacity 600kg/H

Product Description

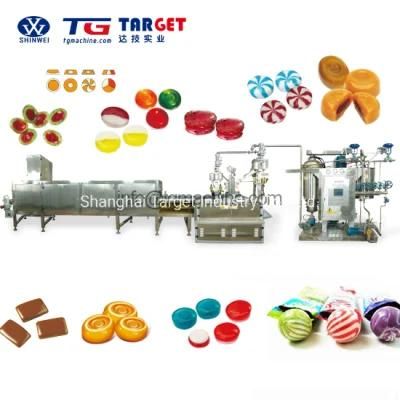

GD600 Full Automatic Servo Driven Hard Candy Deposting Line(Advanced Technology)



FEATURES:
The processing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.


TECHNICAL SPECIFICATIONS:

Model	GD600
Output(kg/h)	600
Max candy weight	As per the candy size
speed	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m³/min, 0.4~0.6MPa
Electric power needed	18kW/380V
Total length(m)	15
Gross weight	3500 kgs

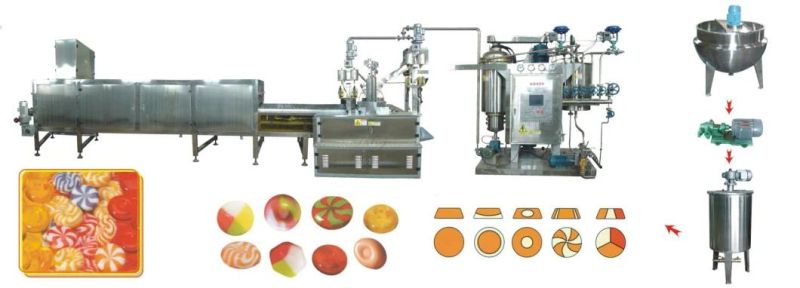

 Deposited hard candy processing flowchart(As reference):
Raw material dissolving ->Transporting->Storage->Dosing->Pre-heating->
Micro-film cooking->Discharding->Mixing with favor and color-> Depositing->
Cooling->De-moulding-> Conveying->Packing->Final products

MAIN EQUIPMENT LIST:
The whole line is comprised of cookers, vacuum micro-film syrup cooking unit, depositor, industrial cooling system, gear pumps, dosing pumps, controller and etc.

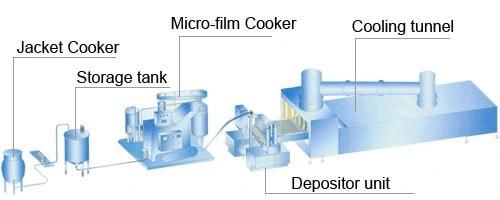

PROCESS FLOWING LAYOUT CHART:
