HJK360Parameters
(Special design for PET)TECHNICAL PARAMETER TABLEUnitINJECTION
UNITSCREW DIAMETERmm60SCREW L/D RATIOL/D25SHOT VOLUME(THEORETICAL)cm3780INJECTION WEIGHT(PET)g826INJECTION PRESSUREMpa147INJECTION RATEg/s273PLASTICIZING CAPACITYg/s49SCREW SPEEDrpm0-180CLAMPING
UNITCLAMP FORCEKn2280OPEN STROKEmm480MAX.MOULD HEIGHTmm550MIN.MOULD HEIGHTmm200SPACE BETWEEN TIE BARSmm510×510 (W×H)EJECTOR FORCEKn65EJECTOR STROKEmm140GENERELEJECTOR NUMBERn9PUMP PRESSUREMpa16PUMP MOTOR POWERKW22HEATING POWERKW16.5MACHINE DIMENSIONm6.0×1.4×2.2(L×W×H)MACHINE WEIGHTT6.9Hopper CapacityL50Oil Tank CapacityL320

Competitive Advantage:

1. This machine adopt special PET screw, prolonged screw and barrel will ensure PET plasticizing effect, to make performs with good brightness and transparence, the production is with low defect.
2. Increased oil pump's power
3. Increased heating ring's power
4. Heaters adopt ceramic, the using life is double than stainless steel.
5. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.

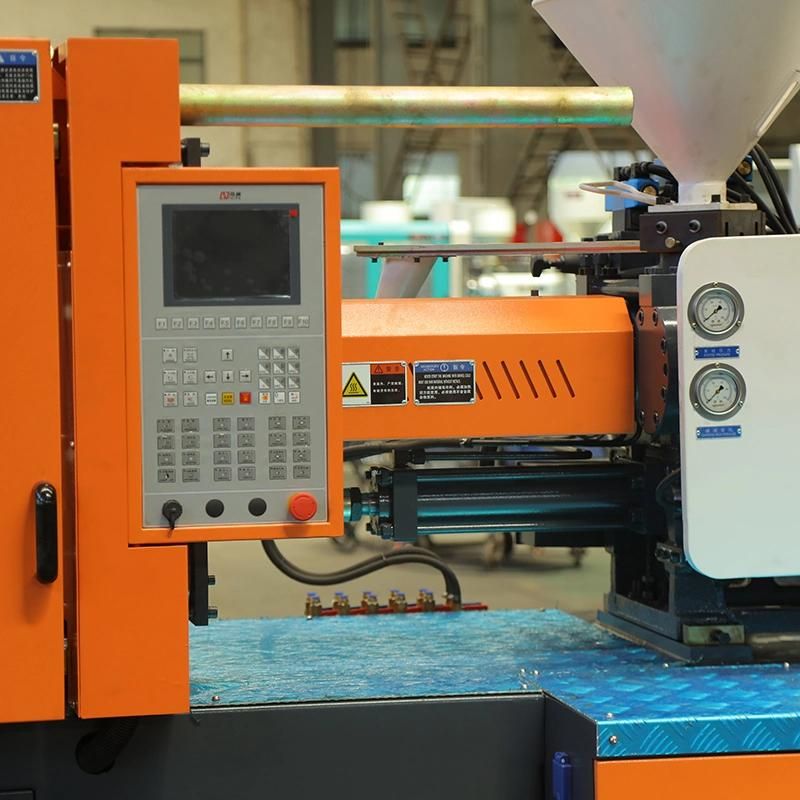

6. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
7. The machine equipped with hydraulic protection
8. The machine equipped with double Hydraulic pulling device
9. The machine equipped with double Air Ejector
10. The machine equipped with single slots on the mold plates,


Special designed points for PET(for HI-P series injection molding machine)

Characteristics of PET resin

1. melting point: 250-260, molding temperature scope of PET is from 255-290, improved GF-PET can reach 290-315.
2. Low viscosity degree.
3. Strong moisture absorbing ability.

Our machine's special design for PET

L/D:25, this is the standard parameter of our PET series injection molding machine.
Enlarged screw diameter and length.
Increased oil pump's power.
Increased heating ring's power.
