High Speed PP/PE/PPR Plastic Pipe Extrusion Line Machine

Qingdao Kaier Xiang Diamond Tools Co., Ltd

Base Info

Description

ItemSJSZ-45SJSZ-51SJSZ-55SJSZ-65SJSZ-80SJSZ-92Diameter of screw(mm)45/9051/10555/11365/13280/15692/188Number of screw(mm)222222Direction of screwsScrew rotation direction/////Screw rotation speed(rpm)1-451-45401-351-371-33Effective length of screw(mm)98510701200144018002500Power of Main engine(kw)1518.522/30375590Barrel heating power(kw)121818243686.8Production capacity(kg/h)12080-150150-180250-300320-400600-800Center height(mm)100010001000100010001200Net weight(kg)280032003500400050008000Dimensions(mm)(L*W*H*)3300*1200*21003600*1100*21003600*1100*21004235*1520*24504750*1550*24606725*1550*2841

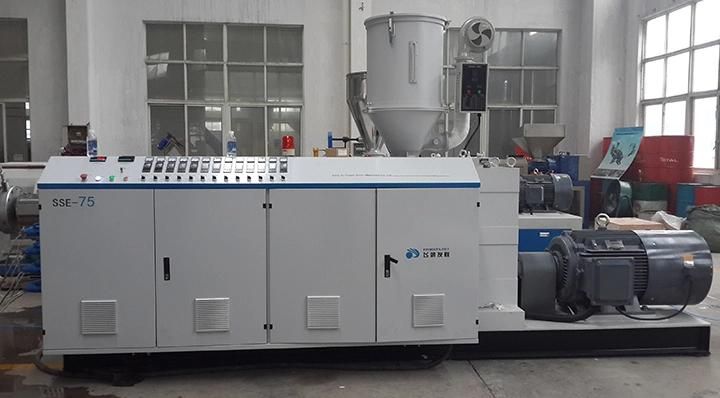

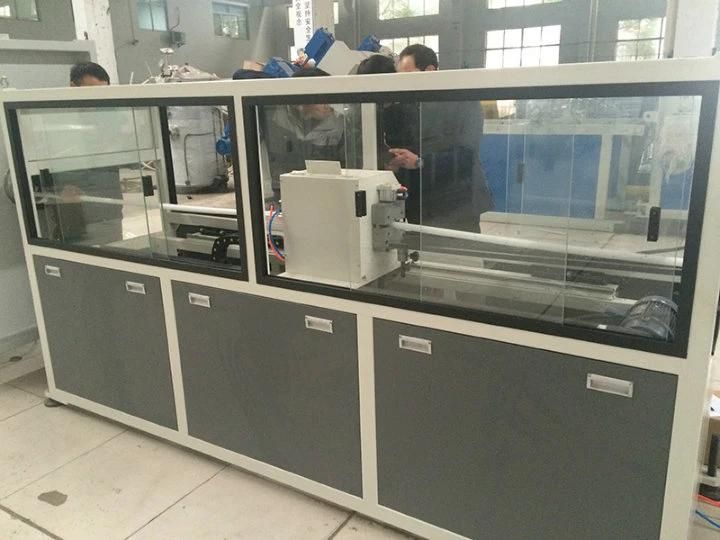

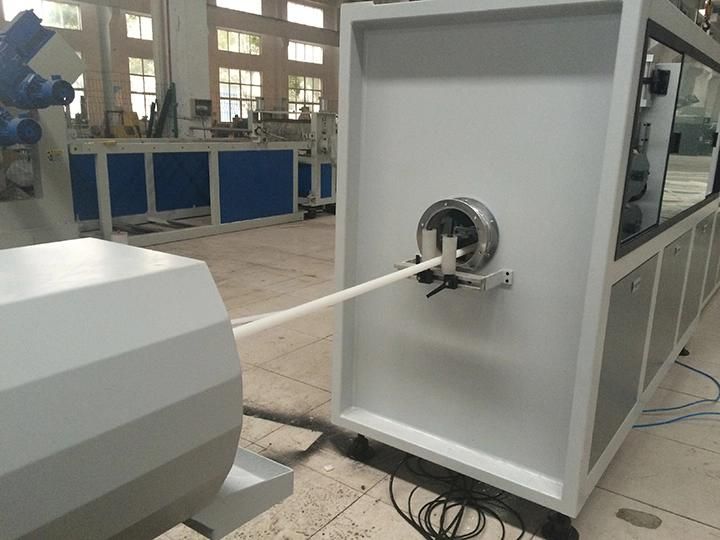

Photo of this line:
High Speed PP/PE/PPR Plastic Pipe Extrusion Line Machine
