Basic Info.

Model NO. HFTF-80T Raw Material PP, HIPS, PVC, Pet etc. Max Forming Area 762*470 mm Max Forming Height ≤130 mm Changing Mould Yes Logo Forming with Logo Forming Application Cups, Bowls, Square Boxes etc. Mould Origin Taiwan Stacking with Automatic Stacking Transport Package Sea-Worthy Packing Specification HFTF-80T Trademark HENGFENG Origin China HS Code 84774090 Production Capacity 40cycles/Min

Product Description

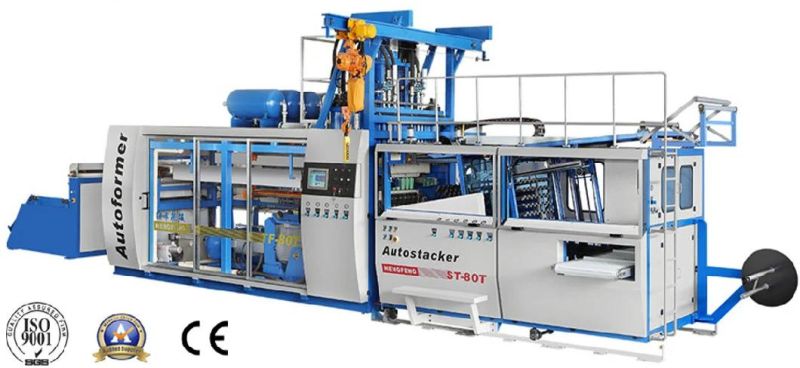

Plastic PP/Pet/PLA Cup Tilting Mould Thermoforming Making Machine

Please link here to find more running video:


https://youtu.be/M0HywCg41JI
Applicantion:

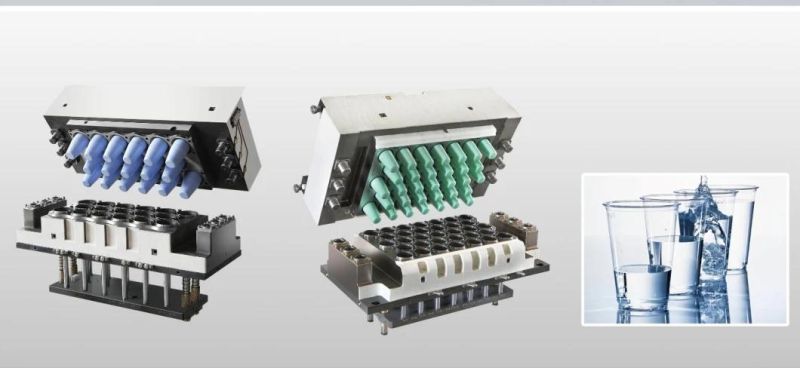

Water Cup Making Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Design Features:
In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Two -station unwinder system
Rapid mould changing device
Mould automatic memry system
PLC design with easy operation.
Main Specification:

1- Max. Forming Area	762×470mm(30"×18.5")
2- Max. Forming Height	≤130mm
3-Mold Clamping force	500KN
4-Sheet Width	Max 820mm; Min 650mm
5-Sheet Thickness	0.4mm-2.0mm
6-Heater Specification	Ceramic Heater up and down 70/80kw
7-Heater Control	Omron Temperature module and PLC match with control
8-Forming Method	Air pressure forming & driven by Cam
9-Operation Method	Fully automatic with touch screen control
10-Material Feeding	Servo Motor 4.4kw
11-Main motoer power	11kw
12-pushing cup motor power	1.3kw
13-stretching servo motor power	11kw
14-Max. Sheet Rolling Diameter	Φ1500mm
15-Air Pressure	0.7-0.85mpa
16-Water Consumption	50L/min
17- Air Consumption	4000L/min
18- Max.No-Load Speed	40 Cycles/min
19- Power (Three Phase Four Wire)	380V,50Hz,3Phase
20- Max installed power	200kw
21- Machine Weight	14500kg
22- Machine Dimension	14500×3850×4250mm
