Made in China Extrusion Blow Molding Machine for Clean Different Size of Medicine Bottles.
Jiangsu YiCheng Fluid Equipment Co., Ltd.Base Info
Description
CONTIUNOUS TYPEMain screw diameter Mm 65 75 90 90 Max plasticizing capacity (PE) Kg/h
70 90 160 160 Driving motor Kw 22 30 45 45 Oil pump motor power Kw 7.5 11 15 15 Clamping force Kn 40 70 120 160 Space between platen Mm 138-368 150-510 240-640 280-680 Platen size W*H Mm 286*330 8350*400 450*500 500*520 Max. mold size Mm 300*350 360*400 500*520 560*520 Platen moving stroke Mm 420 450/520 600/650 650 Heating power of die head Kw 6 7.5 10 12.5 Machine dimension L*W*H M 3.0*1.9*2.4 3.7*3.1*2.7 4.2*3.2*3.0 4.*3.2*3.1 Machine weight T 5 8.5 12 14 Total power Kw 45 60 90 93
Parison wall thickness control system
No1.
human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
No2 .
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
No3 .
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

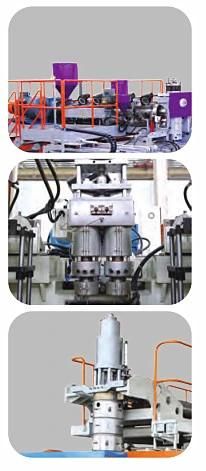

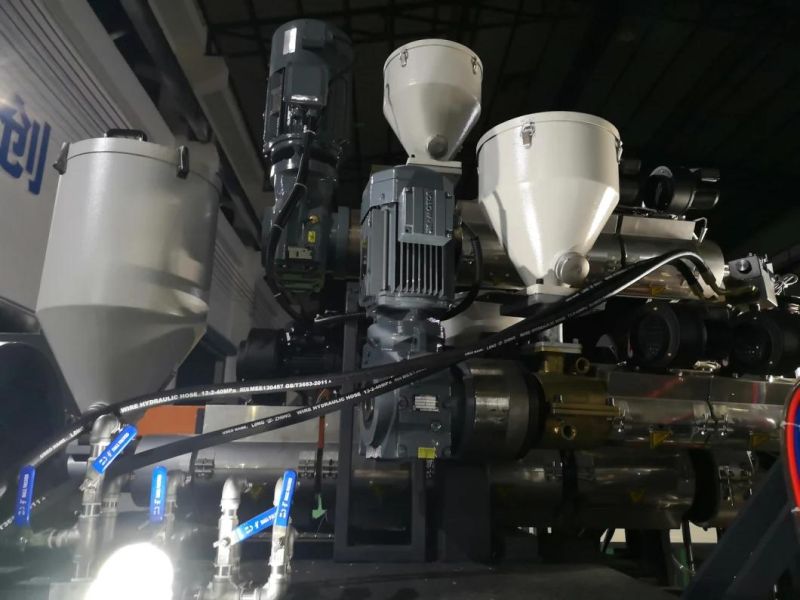

Extrution & Die head:
No1.The extruder uses screw and barrel, which is a famous brand" jinhailuo" all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system:
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)

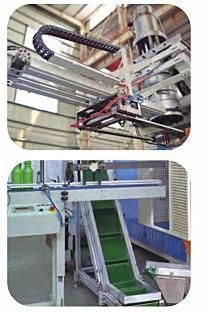

Output system:
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system:
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy

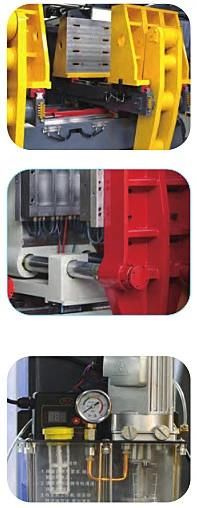

Open&Closing system:
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system:
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system:
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
Sales Service Networks:
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA
Web:jwellmachinery.en.made-in-china.com
jwellmachinery.en.made-in-china.com
